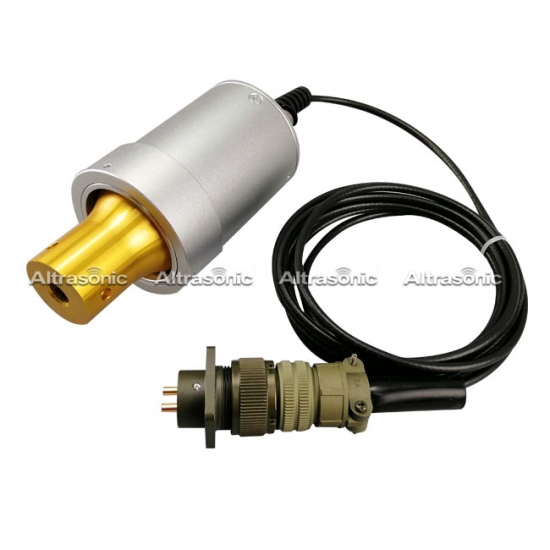

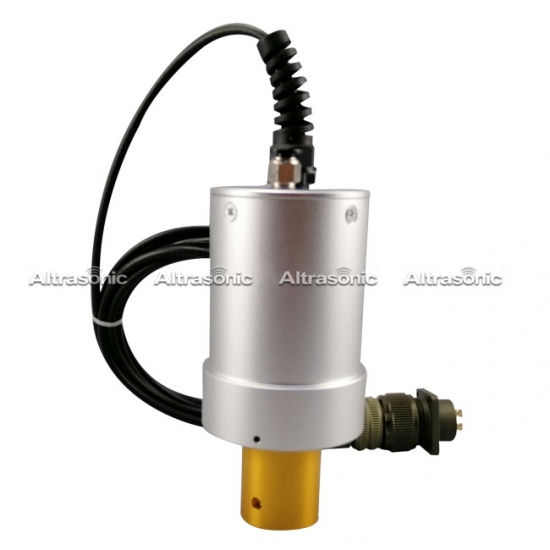

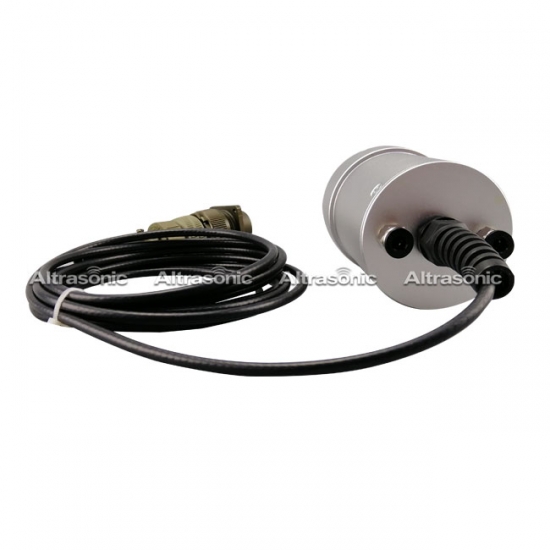

High Quality Dukane 41S30 Replacement Ultrasonic Welding Converter

High Quality Dukane 41S30 Replacement Ultrasonic Welding Converter

The 20kHz High Power Ultrasonic Welding Transducer, replacement converter for Dukane type 41S30, is applied to Dukane type ultrasonic welding machine.

  • Item No.:

    HS-D41S30
  • Payment:

    T/T, Paypal, Western Union
  • Price:

    $788/piece
  • Product origin:

    China
  • Color:

    Silver and Yellow
  • Min order:

    2
  • Shipping port:

    Ningbo or Shanghai
  • Lead Time:

    7
  • Product Details


High Quality Dukane 41S30 Replacement Ultrasonic Welding Converter





Specifications


Model HS-D41S30
Frequency 20 kHz
Output power 1000-3000 watt
Joint bolt 1/2-20UNF
Ceramic disc Diameter 50mm
Amplitude 20um
Capacitance 11-12nf
Material Titanium or aluminum for selection
Application Plastic welding



Description



Ultrasonic transducer is a kind of energy conversion equipment, its function is to convert the input electrical energy into mechanical energy (ultrasound), and then transfer it out, while consuming a small amount of electrical energy (less than 10%). Therefore, the most important consideration for using an ultrasonic transducer is the matching with the input and output terminals, and then the mechanical installation and matching size. Now, we can provide ultrasonic welding transducer/converter to replace some famous brands, such as Branson / Telsonic / Rinco / Dukane.



Advantages



1. Titanium, aluminum, steel materials of horn optional.

2. One by one testing to ensure that each transducer performance are excellent.

3. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.

4. The piezoelectric ceramic chip can give a strong and stable output.

5. Good heat resistance, small harmonic impedance, low calorific value, using temperature range is wide.



Applications



Our transducer can applied in the following ultrasonic machines:



Ultrasonic welding machine

All material with thermoplasticity can use Ultrasonic welding machine ,

 it can welding the material more easy and stable.Such like plastic, fabric,

 ABS, nonwovens.

Ultrasonic cutting machine

Ultrasonic food cutting is popular because the perfect edge.

Ultrasonic cutting in packing area also welcomed, it can cutting

 and sealing at the same.

Ultrasonic sewing machine

Ultrasonic sewing can sewing the material without any cotton, and keep

longer time.



Product Display
