Fast Cutting Non-woven Fabric Ultrasonic Knife

  • China
  • Altrasonic
  • HS-C40
  • Shanghai or Ningbo
  • White
  • 1
  • T/T, Paypal, Western Union

  • Contact Now
Product Details

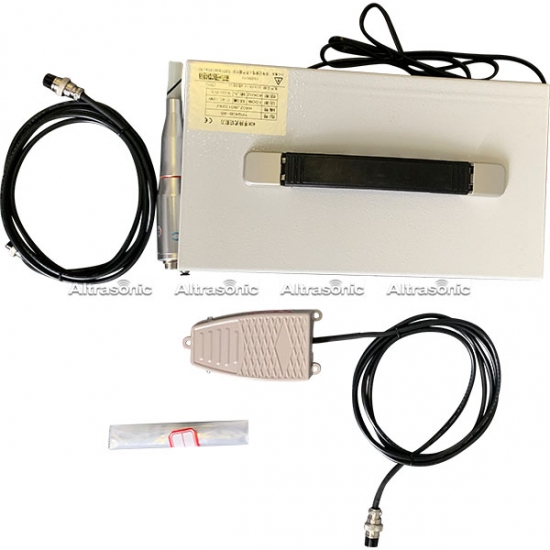

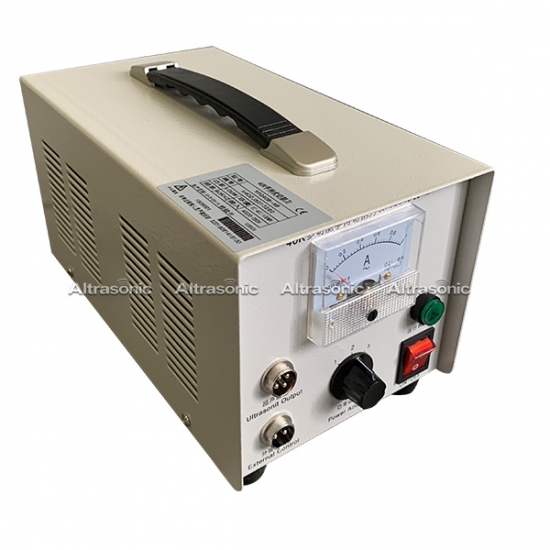

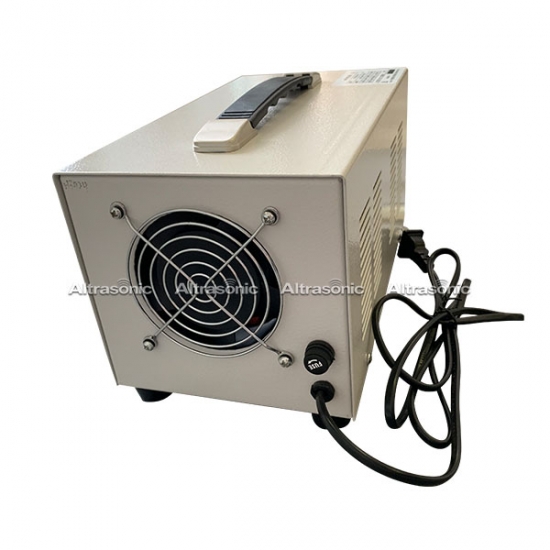

Fast Cutting Non-woven Fabric Ultrasonic Knife





Parameter:


Frequency:

40kHz

Power:

100Watt

Voltage:

AC110-240V, 50/60Hz

Power Controller:

Stepping or Continuous

Material of Blade:

Stainless Steel

Weight:

8kgs

Accessories:

Foot Switch and Blades

Cooling Device:

Compressed air mouth can be installed

Cable Length:

2M or Customized

Foot Switch:

Available




Description:


Sound is a vibration that is transmitted through a medium, such as air, water, and metals. Ultrasonic waves are an "inaudible sound," the frequency of which generally exceeds 20 kHz. A 20-kHz frequency means that a certain medium vibrates 20,000 times per second.

The ultrasonic cutter vibrates its blade with an amplitude of 10 - 70 µm in the longitudinal direction. The vibration is microscopic, so it cannot be seen. The movement repeats 20,000 - 40,000 times per second (20 - 40 kHz). Because of this movement, the ultrasonic cutter can easily cut resin, rubber, nonwoven cloths, film, composite materials in which various products are superposed, and food.



Advantage:



1. Precision cutting: the cutting quality obtained through the use of an ultrasonic cutting machine is much better compared to the laser. Ultrasonic cutting machines offer an extreme level of precision and make it possible to better meet the various cutting constraints imposed in an industrial context.

2. Energy saving: the ultrasonic cutting machine consumes less energy compared to the laser. However, it offers a better quality of cutting and / or welding.

3. The ease of handling: the ergonomic aspect is interesting.

4. An optimized industrial process: whether for cutting or sealing materials, integrating the use of ultrasonic cutting machines and welding machines into the industrial process allows for maximum time savings, increased productivity and increased productivity. better flexibility in the face of growing market demands.

5. Better environmental impact reduction: The ultrasonic cutting machine does not cause negative impacts on the ecosystem. Its use is recognized without danger in an industrial environment. Cutting and ultrasonic welding is a reliable technology that respects the environment.

6. Hygiene: the industrial process implementing the use of such technology remains subject to stringent hygiene conditions to curb the risk of product contamination. The law strictly regulates the different cutting conditions: temperature of products, nature of the supports.
