Environment Protection High Efficiency 20kHz Ultrasonic Metal Welder Equipment For Welding Copper Wire Harness

  • China
  • Altrasonic
  • HS-2030
  • Shanghai or Ningbo
  • Silver and black
  • 1
  • 20
  • T/T, Paypal, Western Union

  • Contact Now
Product Details

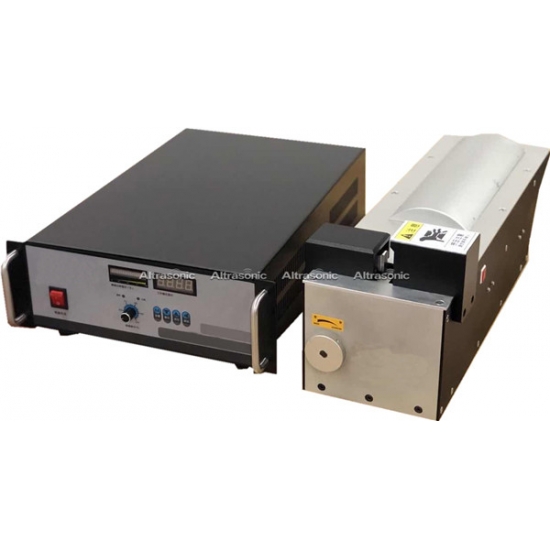

Environment Protection High Efficiency 20kHz Ultrasonic Metal Welder Equipment For Welding Copper Wire Harness

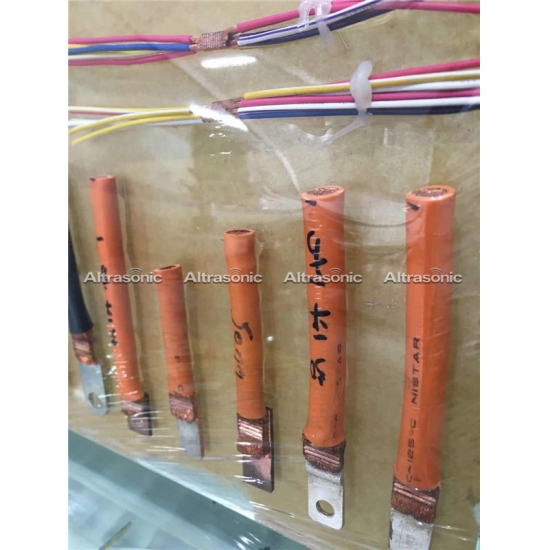

Ultrasonic wire harness welding machine, multi-strand copper wire welding machine, automobile wire harness welding machine

characteristic:

1. The welding size and shape of the ultrasonic harness welding machine can be adjusted arbitrarily.

2. The ultrasonic wire beam welding machine can reduce the temperature effect of the material to a relatively low level (the temperature of the welding zone does not exceed 50% of the melting temperature of the welded metal), so that the metal structure does not change, so it is very suitable for welding applications in the electronic field.

3. Compared with the resistance welding method, the ultrasonic harness welding machine has a long mold life, less time for mold refurbishment and replacement, and it is easy to realize automation.

4. Ultrasonic wire-beam welding machine can perform ultrasonic welding between the same kind of metal and different kinds of metals, which consumes much less energy than electric welding.


parameter:

Model No#
HS-2030
HS-2040
HS-2050
Power
3000W
4000W
5000W
Welding area
0.5-16mm²
0.5-20mm²
1-30mm²
Working air pressure
0.05-0.9MPa
0.05-0.9MPa
0.05-0.9MPa
Frequency
20kHz
20kHz
20kHz
Voltage
220V
220V
220V
Weight
80KGs
80KGs
80KGs
Working head Size
530*210*230mm
550*220*240mm
550*250*240mm
Machine Size
540*380*150mm
540*380*150mm
540*380*150mm


Workshop:



CE:



Packing&Shipping:


Shipping Port:Shanghai

Shipping Term:By express,by air,by ocean and so on.

Leading Time:Quick production leading time and fast delivery.Usually 1-3days if we have in stock.




Payment:
