Dukane Replacement Modle Ultrasonic Converter Ceramic 20 Khz Ultrasonic Transducer

  • China
  • Altrasonic
  • HS-D41S30
  • Shanghai or Ningbo
  • Silver and Yellow
  • 1
  • 5
  • T/T, Paypal, Western Union
  • $788/PC

  • Contact Now
Product Details

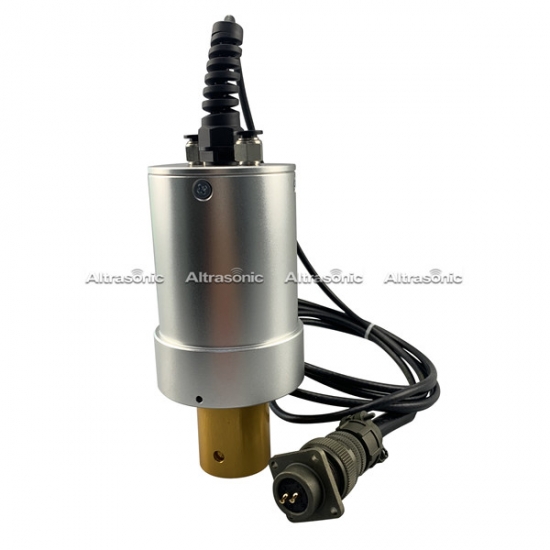

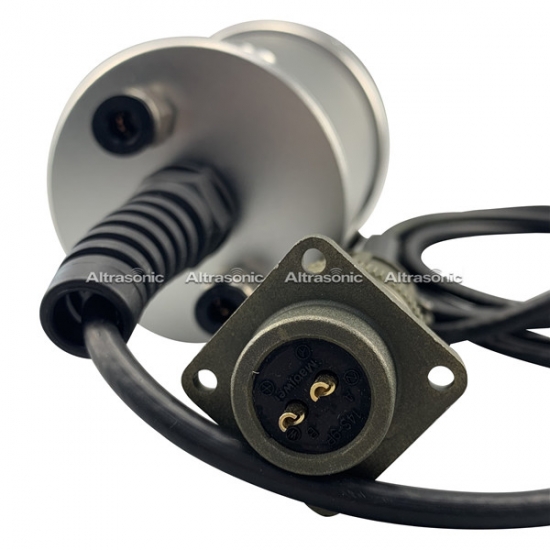

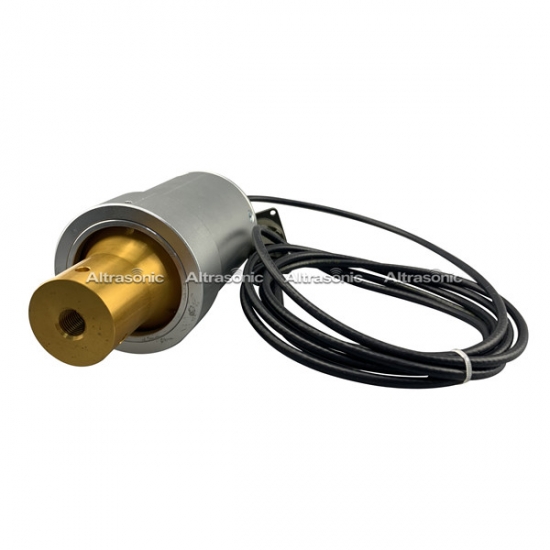

Dukane Replacement Modle Ultrasonic Converter Ceramic 20 Khz Ultrasonic Transducer




Specifications:


 Item No.  HS-D41S30
 Frequency:  20kHz
 Power:  2000Watt
 Diameter of Ceramic:  50mm
 Qty of Ceramic:  4PCS
 Capacitance:  11000pF
 Amplitude:  20um
 Connect Screw:  1/2-20UNF
 Color of Ceramic:  Yellow
 Weight:  1.9kgs
 Package:  Carton
 Application:  Plastic Welding or Non-woven Fabric


Description:


This specification is called "ultrasonic transducer", commonly known as "ultrasonic vibrator" or "ultrasonic oscillator".The core of ultrasonic transducer  is piezoelectric ceramic that convert  electrical signals into mechanical vibration. The Replacement Converter for Dukane 41S30 machine Direct replacement for the Dukane 41S30 machine thatdelivers lower cost, good quality and superior value.





Advantages:


  • High Efficiency: of high mechanical factor. High transfer efficiency is obtained when working in resonance frequency.
  • Big amplitude: designed and chosen by computer, high oscillation speed and big amplitude in front operculum.
  • Big Power: under the function of the prestressed force screw rod, the piezoelectric ceramics can work freely in the highest level of power.
  • In good heat resistance: of small resonance impedance, less heat produced, can be used in a wide range of temperature with long life and high reliability.




Applications:



 Ultrasonic Welding Machine  All material with thermoplasticity can use Ultrasonic welding machine, it can welding the material more easy and stable.Such like plastic, fabric, ABS, nonwovens.
 Ultrasonic Cutting Machine  Ultrasonic food cutting is popular because the perfect edge. Ultrasonic cutting in packing area also welcomed, it can cutting and sealing at the same.
 Ultrasonic Sewing Machine  Ultrasonic sewing can sewing the material without any cotton, and keep longer time.
