Dukane 110-3122 2000watt Ultrasonic Transducer Replacement for Welding

Product Origin:China
Brand:Altrasonic
Item NO.:Dukane 110-3122
Shipping Port:Shanghai or Ningbo
Color:Bule Silver and Black
MOQ:1
Lead Time:15
Payment:T/T, Paypal, Western Union
Price:$788/piece

Contact Now

Product Details

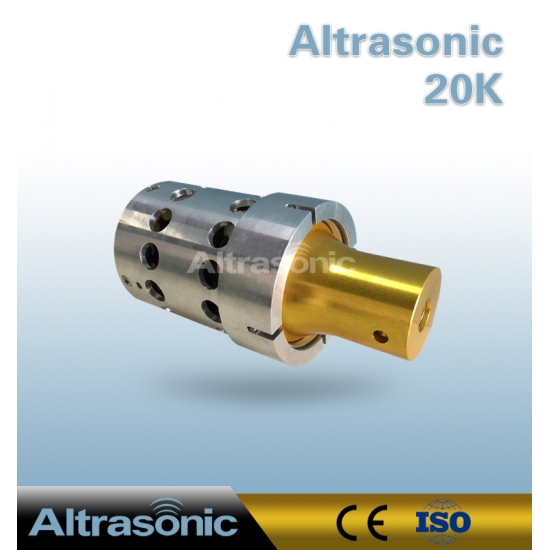

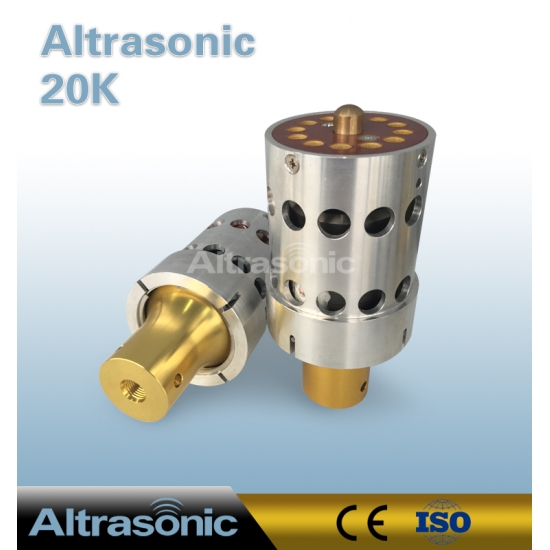

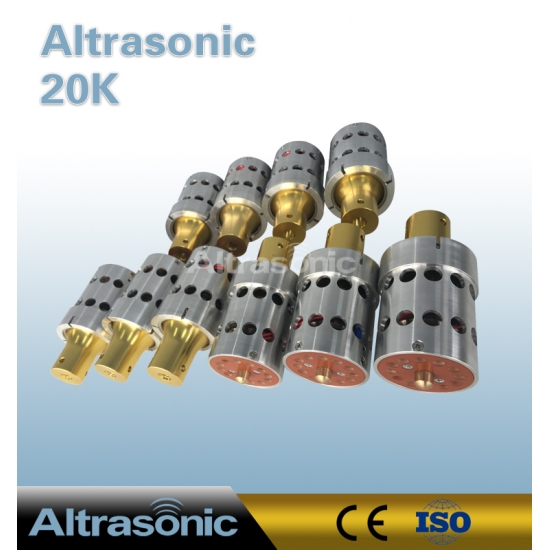

Dukane 110-3122 2000watt Ultrasonic Transducer Replacement for Welding

Description:

Ultrasonic device consists of ultrasonic generator , transducer , booster and work horn. The transducer is an energy converter , which can converted the high frequency , high power current , output of power supply into reciprocating mechanical energy of the ultrasonic vibration , the vibration frequency output of drive power with the same frequency as the current. To further enlarge the amplitude of ultrasonic energy input to the place where we need.

Specification:

Item No : Dukane 110-3122

Frequency : 20kHz

Power : 2000watt

Ceramic diameter : 50mm

Qty of ceramic : 4pcs

Resistance : 10Ω

Capacitance : 11nF

Advantage:

1. Titanium materials and Aluminum materials optional.
2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
3. One by one testing to ensure that each transducer performance are excellent.
4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.

Applied range：

Replacement ultrasonic converter for Dukane 110-3122 , for use with 20KHz welding machine.
