AMPLITUDE GAUGE Measuring And Setting That Amplitude


Minimum Order Quantity:

1 Set


Ask for quote

Packaging Details:

Wood case

Delivery Time:

In 7 Working Days

Payment Terms:


Supply Ability:

200 Sets/Month



Quick Detail:


Delicate design

Reasonable structure

Simple operation

Accurate measurement

Can replace the laser measuring device

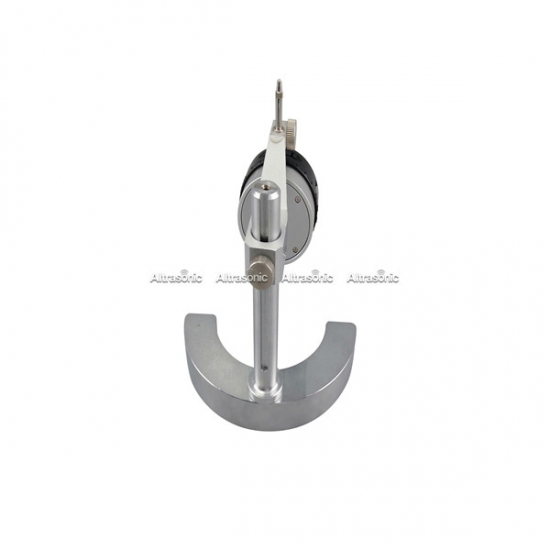

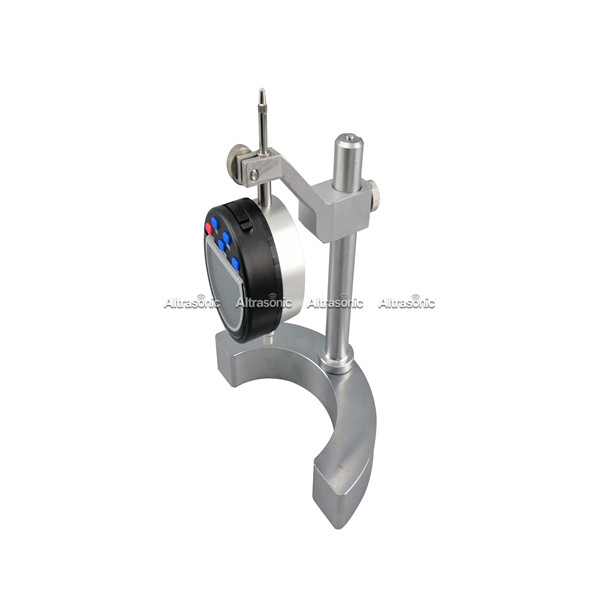

Consistent and correct amplitude is one of the most important factors in achieving a high-quality ultrasonic weld. The Amplitude Gauge makes measuring and setting that amplitude easy. Simply bring the gauge into contact with the ultrasonic horn, press the welder test button and read the total amplitude in microns on the dial.

Determine variances in amplitude from welder to welder, use the gauge on several areas of the horn face to indicate a bad or unbalanced horn, or check for horn overstressing which, found early, will save many horns from cracking.

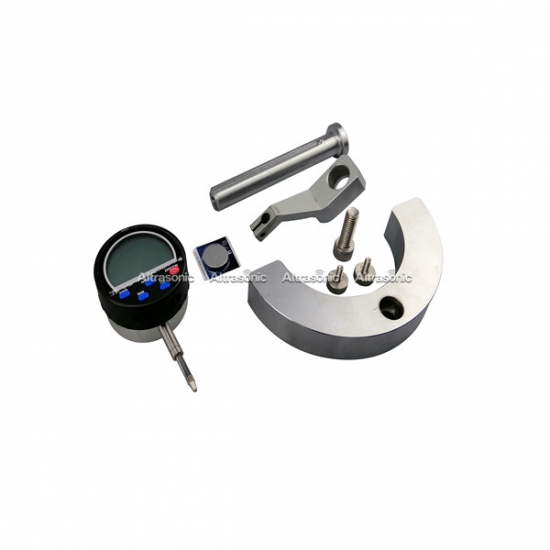

  • Rack and pinion adjustment for ease of operation

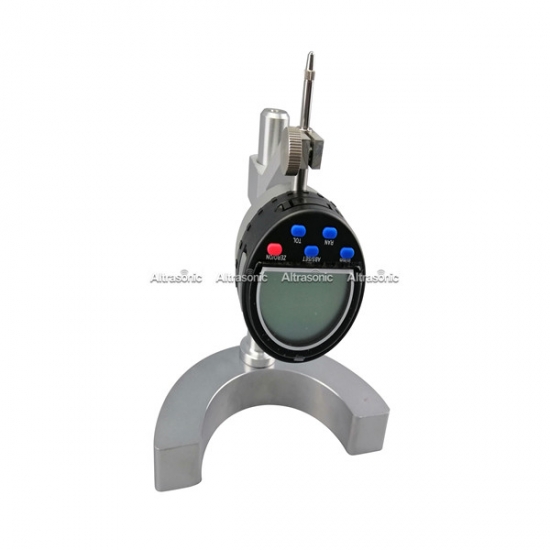

  • Total amplitude reading in microns, directly from the dial, eliminates the need for conversion

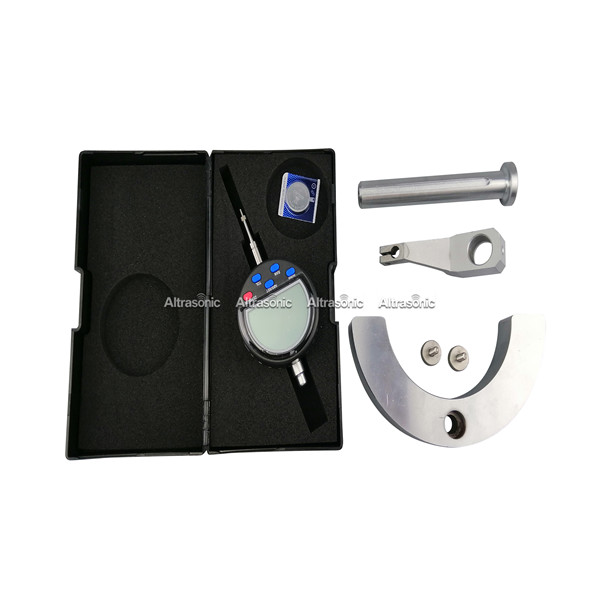

  • Sturdy carrying case included





Ultrasonic Amplitude Measuring Instrument is used to measure the amplitude of ultrasonic equipment.



Competitive Advantage:


The measuring instrument of ingenious design, reasonable structure, simple operation, accurate measurement

Easy operation, wide applicability, no plug

Compact design, reliable work, can directly replace the laser measuring instrument

Quality assurance, sufficient stock, fast delivery











1 μm

Measuring Range

More than 3 μm

Frequency Range

10 KHz – 200 KHz

Supply Power

Built-in power supply (DC 3V)

Type of Indicator


Test direction

Up or down
