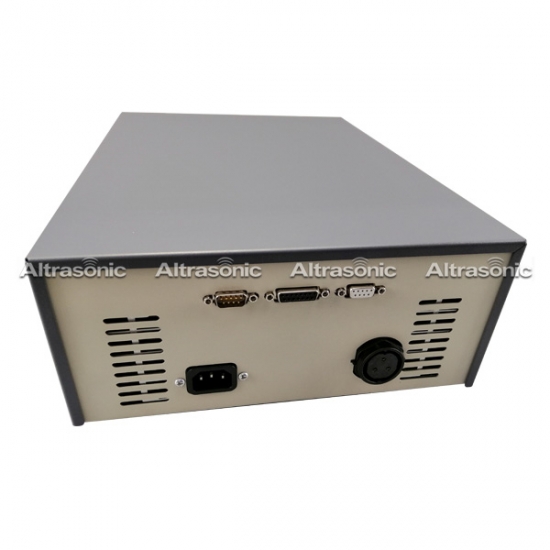

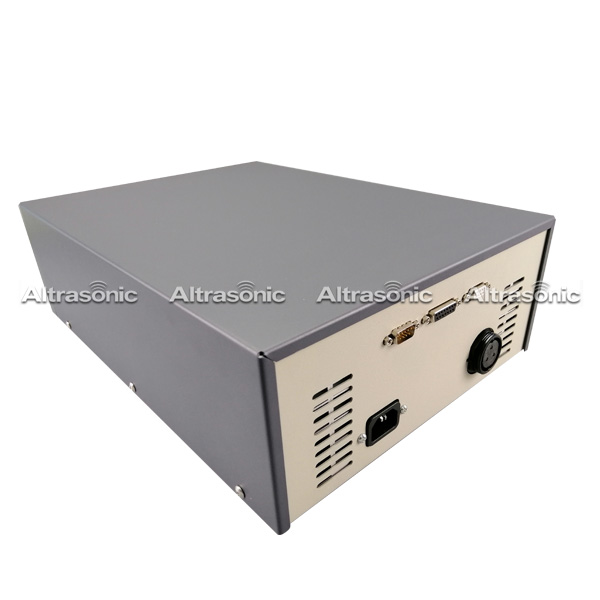

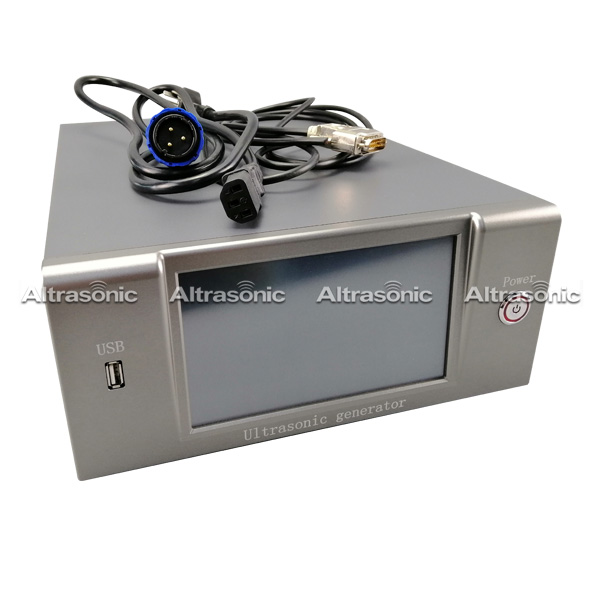

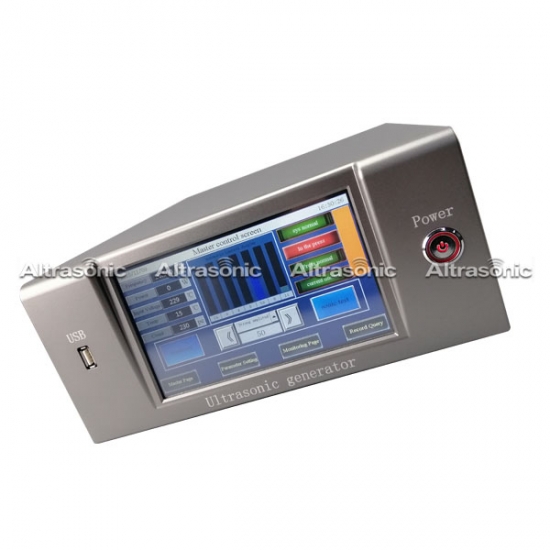

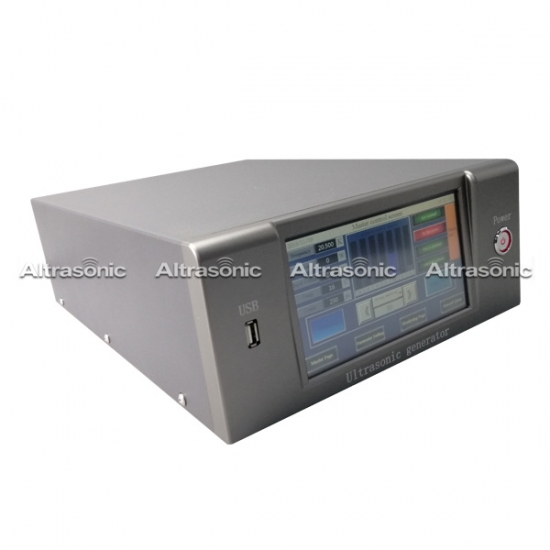

70KHZ Digital Ultrasonic Generator For Samrt Card Bank Card ID Card Embedding

70KHZ Digital Ultrasonic Generator For Samrt Card Bank Card ID Card Embedding

70KHZ Digital Ultrasonic Generator For Samrt Card Bank Card ID Card Embedding

  • Item No.:

    HS-DG-70
  • Payment:

    TT, West union, Paypal
  • Product origin:

    China
  • Color:

    Black
  • Product weight:

    10Kg
  • Shipping port:

    Hangzhou
  • Product Details


70KHZ Digital Ultrasonic Generator For Samrt Card Bank Card ID Card Embedding






Description:


During the past half year, with many effort from the research development section of our company, at present we have successfully promote the intelligent card welding equipment substantially. After promotion, comparison with the former one, the properties of the equipment has been promoted highly, more stability, better in search the frequency at more wide range, and much better appearance. On the process using the former 60K equipment, with the damage of the welding horn, the frequency would be altered.(the frequency is decided by the size of the product).When the frequency is altered to a certain degree, the ultrasonic generator would be difficult to coincide with the frequency, then influencing to the normal running of all the ultrasonic system.






Specifications:


Model

HS-DG-70

Frequency

70 KHz

Power

100W

Power adjusting

Itermittent or continuons

Power cord

5 meters

Cooling method

Compressed air

Working time control

0-999 seconds

Outer housing

Aluminum



Competitive Advantage:


★ Steady welding point, completely eradicate insufficient solder technically.

★ The size of welding spots is the same, equality line, good effect on uniformity.

★ The welding spot is small, wouldn’t increase the weight of the coil, easy to do lamination and encapsulation.

★ To leave out the immersion tin step before doing welding, save an operator.

★ After skilled in welding, much faster than the way to use searing iron to do weld.

★ On the process on manufactory, there is no waste gas, waste rubbish on pollution, runs in quiet and no noise.

★ To select the frequency 60KHz, one machine could drive 5-10 ultrasonic products, the speed to do welding is much faster.

★ Low power consumption, to save production cost for manufactory enterprise.




Comparison:




Analog generator

Digital generator

Circuit

Analog circuit, discrete components

Digital circuit, the chip control

Automatic search

×

Automatic frequency tracking

×

Frequency adjustment range

±0.15 KHz

±0.5 KHz

Power regulation

×

24 hours of continuous work

×

Non resonant condition

×

LCD

×

Add the PLC protocol

×

Automatic circuit protection

Bad, easy to cause the damage of components

Good

Repair method

Professional repair

Module replacement
