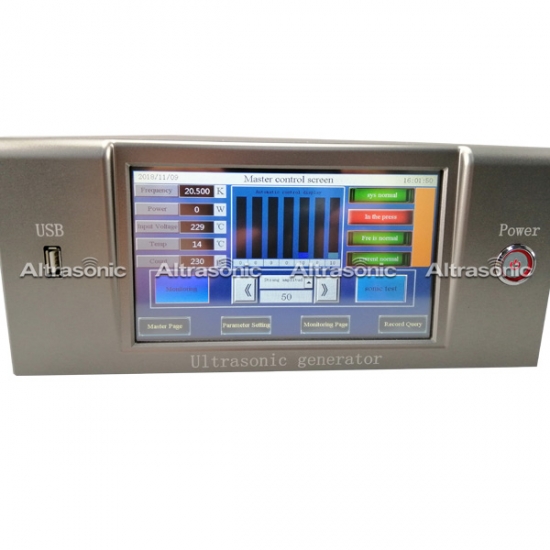

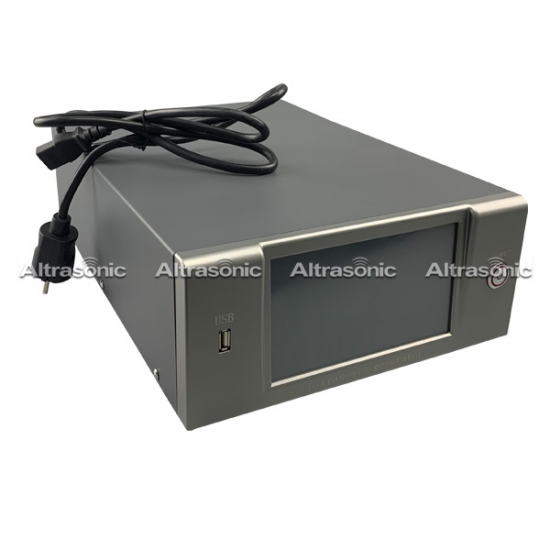

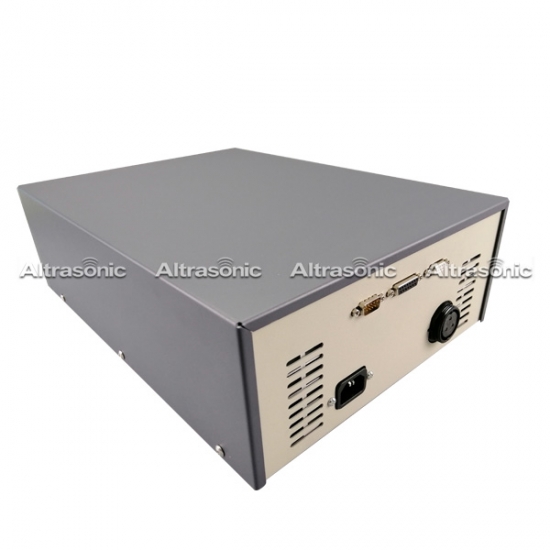

100W Digital High Speed Ultrasonic Generator For Contactless Double Circle Card

100W Digital High Speed Ultrasonic Generator For Contactless Double Circle Card

Ultrasonic embedding machine has entered the mature stage, but with the improvement of technology and the diversification of materials, the traditional 60K machine in the early morning has problems such as weak output, slow embedding speed and large volume. The 70K ultrasonic embedding machine is improved on the basis of 60K system, and spent three years to develop the first intelligent ultrasonic frequency automatic tracking series DSP HS-V-8.0 in China.

  • Item No.:

    HS-DG-60
  • Payment:

    TT, West union, Paypal
  • Product origin:

    China
  • Color:

    Black
  • Product weight:

    10Kg
  • Shipping port:

    Hangzhou
  • Product Details


100W Digital High Speed Ultrasonic Generator For Contactless Double Circle Card






Description:


Ultrasonic embedding machine has entered the mature stage, but with the improvement of technology and the diversification of materials, the traditional 60K machine in the early morning has problems such as weak output, slow embedding speed and large volume. The 70K ultrasonic embedding machine is improved on the basis of 60K system, and spent three years to develop the first intelligent ultrasonic frequency automatic tracking series DSP HS-V-8.0 in China. The ultrasonic generator, also called ultrasonic driving power supply, electronic box, control box, is an important part of high power ultrasonic system. Main function is to generate high power and high frequency alternating current, drive the ultrasonic transducer.


Applications:

Ultrasonic generator main function is to generate high power and high frequency alternating current, drive the ultrasonic transducer.
Ultrasonic generator is applied to all kinds of ultrasonic equipment, mainly with ultrasonic welding, ultrasonic cutting, ultrasonic chemical equipment and ultrasonic welding equipment such as non-woven fabric.





Specifications:


Model

HS-DG-60

Frequency

60 KHz

Size

300*450*170 mm

Weight

12 KG

Output Power

100 Watt

Voltage

220 V    50 Hz

Temperature

≤300℃

Moisture

≤85%RH



Competitive Advantage:


1. High stability: All digital integrated circuits adopt high-performance anti-interference processor imported from the United States, which reduces the number of components, simplifies the hardware structure, and increases the voltage regulation function to improve the reliability and stability of the system.

2. Frequency automatic tracking: Digital frequency synthesis technology combined with digital phase-locked loop frequency tracking composite control technology can eliminate the disadvantages of temperature, static load, processing area, tool wear and other factors that are difficult to overcome by conventional analog regulators, which is beneficial to parameter adjustment. It is convenient to modify the control scheme and implement various new control strategies through the modification of the program software.

3. Strong output: The application of IGBT power module plus his excitation oscillating circuit structure makes the output power more than 1.5 times that of the traditional self-excited circuit.

4. Amplitude and non-polar adjustment: The amplitude can be increased or decreased instantaneously during the adjustment process, and it can be fine-tuned to effectively prevent the size of the rubber parts from being welded perfectly, effectively reducing the puncturing and scalding, and having the function of monitoring defective products, which is more suitable for automatic matching. The setting range of the amplitude is 10%~100%

5. Intelligent protection and fault alarm prompt: mold current is too high protection, frequency offset protection, total output is too large protection. If the equipment fails, the generator will stop working immediately and prompt the corresponding fault reason until the technician removes the fault.

6. The amplitude adjustment of the intelligent closed loop amplitude control technology achieves a constant amplitude output independent of fluctuations in the input supply voltage and load.

7. A variety of welding mode switching, so that welding accuracy is higher, the scope of application is wider, and the welding effect is better.



Comparison:




Analog generator

Digital generator

Circuit

Analog circuit, discrete components

Digital circuit, the chip control

Automatic search

×

Automatic frequency tracking

×

Frequency adjustment range

±0.15 KHz

±0.5 KHz

Power regulation

×

24 hours of continuous work

×

Non resonant condition

×

LCD

×

Add the PLC protocol

×

Automatic circuit protection

Bad, easy to cause the damage of components

Good

Repair method

Professional repair

Module replacement
