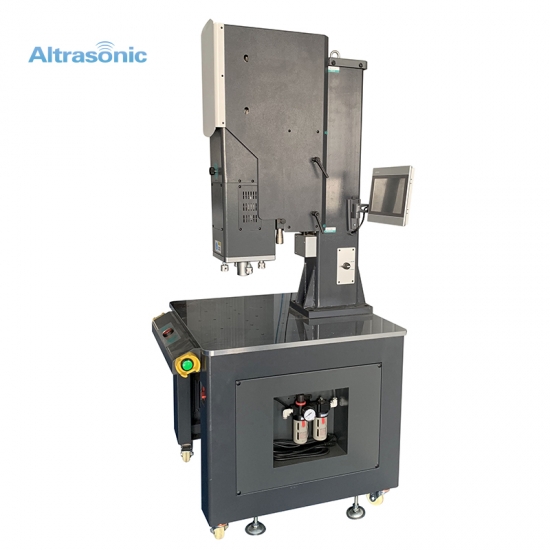

Automatic machienry ultrasonic plastic welder.
Item No.:
HS-W15Payment:
T/T, PayPal, WWestern UnionProduct origin:
ChinaColor:
SilverShipping port:
Shanghai or Ningbo

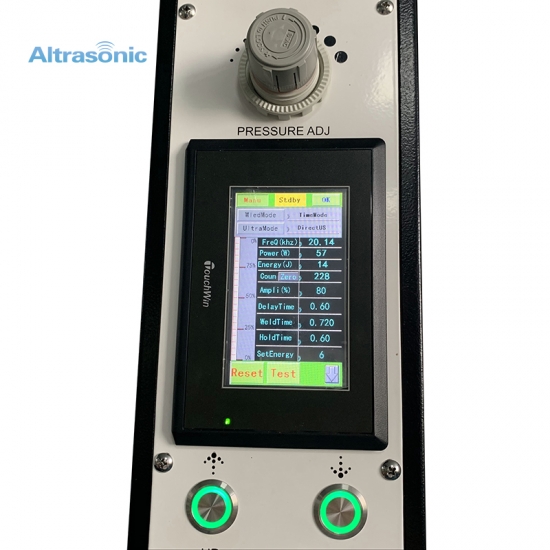

4200watt Ultrasonic Plastic Welder with Touch Screen for PP, ABS
Description:
Ultrasonic plastic welding can be easily customized to fit the exact specifications of the parts being welded. The parts are sandwiched between a fixed shaped nest (anvil) and a sonotrode (horn) connected to a transducer, and a low amplitude acoustic vibration is emitted.
If you need a free consultation, please kindly send inquiry to us, our technical department will evaluate and feedback to you immediately.
Specification:
Item No
HS-W15
Frequency
15 kHz
Power
4200 watt
Range of welding time
0.05-10/sec
Air supply requirements
clean dry compressed air
Maximum pressure
2.89 KN
Maximum stroke
100 mm
Beats
50/Min
Dimension
476mm*736mm*1524mm
Application:
1. Toy Industry: toy gun, water gun, telephone and rag baby, etc;
2. Electronic Industry: gum case of watch, nylon watch band, calculator, sound box wraps hull and cell phone battery, etc;
3. Automotive Industry: interior components (side door trim, center console), engine compartment components (cylinder head cover, engine covers), lighting, filters and acoustic foams, etc;
4. Packing Industry: disguise box, PVC packing box and toothpaste tube, etc;
5. General Business Ware: Inkjet cartridge, video cassette rack, tape box and computer disk, etc;
6. Medical Industry: sterile package sealing, equipment component assembly, syringes and filters, etc.
Workshop:
CE:
Shipping:
Payment:
Previous :
Factory direct sale ultrasonic plastic weld machine impeller welderNext :
15khz 4200watt Ultrasonic Plastic Welding MachineIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Categories
New Products
Automatic machienry ultrasonic plastic welder.
Ultrasonic Welding / Bonding Nonwovens, Films And Textiles
Ultrasonic Welding Machine 20Khz 3000W For Plastic
Generic Ultrasonic Welder For PP/PE/PVC and Textile
Assembly Ultrasonic Welding Of Thermoplastics
Assembly Ultrasonic Welding Of Thermoplastics
Ultrasonic welding is the process by which two pieces of plastic are joined together through the use of high-frequency acoustic vibrations. For the process one half of the component is placed on a fixed anvil and the second half is placed on top. An extension, connected to the transducer on the welding machine, called a “horn” is then lowered down on top of the two components. Once the horn is in place a very rapid low-amplitude acoustic vibration is applied to the moulding in a small welding zone. This vibration causes the acoustic energy to be converted into heat energy and the two components are welded together in a short space of time, typically less than one second.
ultrasonic sealing, the heat required for melting is only generated inside the thermoplastic sealing layer. For localized conversion of vibrations to friction heat, the anvil or sonotrode profiles are mostly linear. These profiles ensure focusing of the energy input and therefore short sealing times between 100 and 200 milliseconds.
