Ultrasonic cutting machine is the use of wave energy for cutting equipment, the main feature is cut fast, precise and the cutting edge is smooth.
Item No.:
HS-C40Product origin:

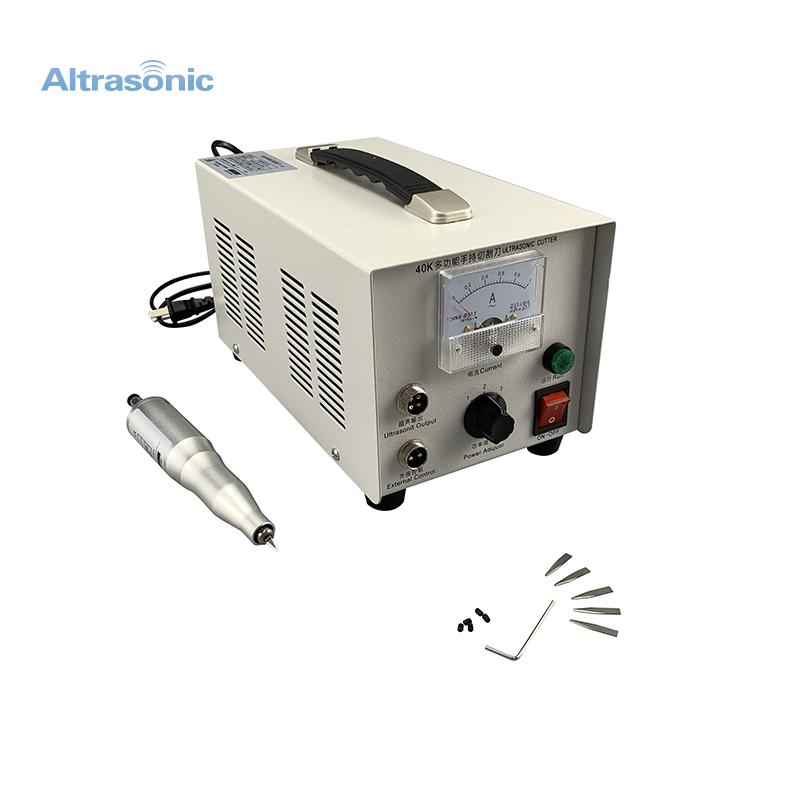

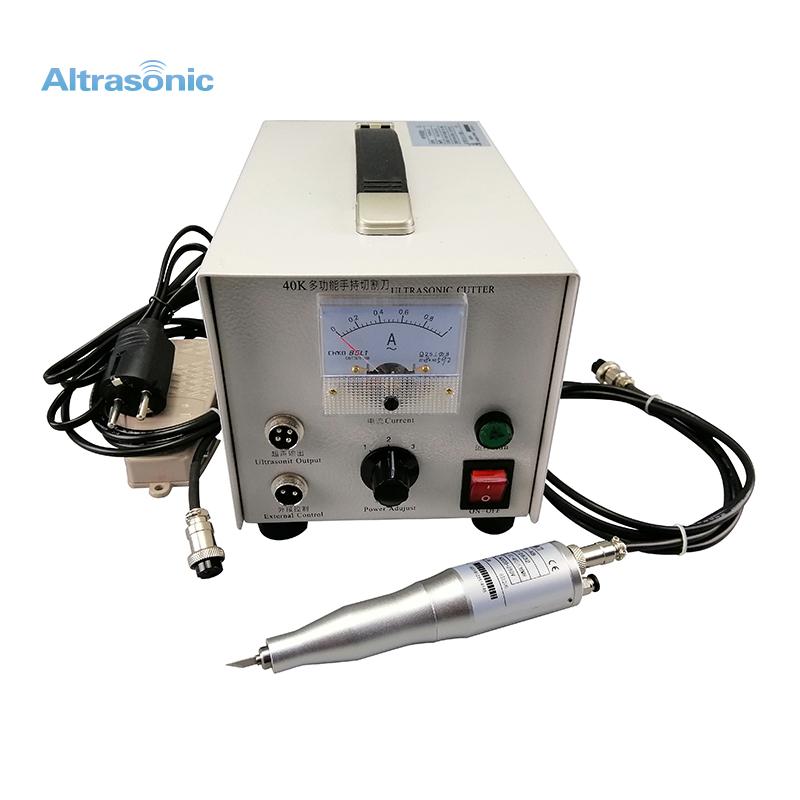

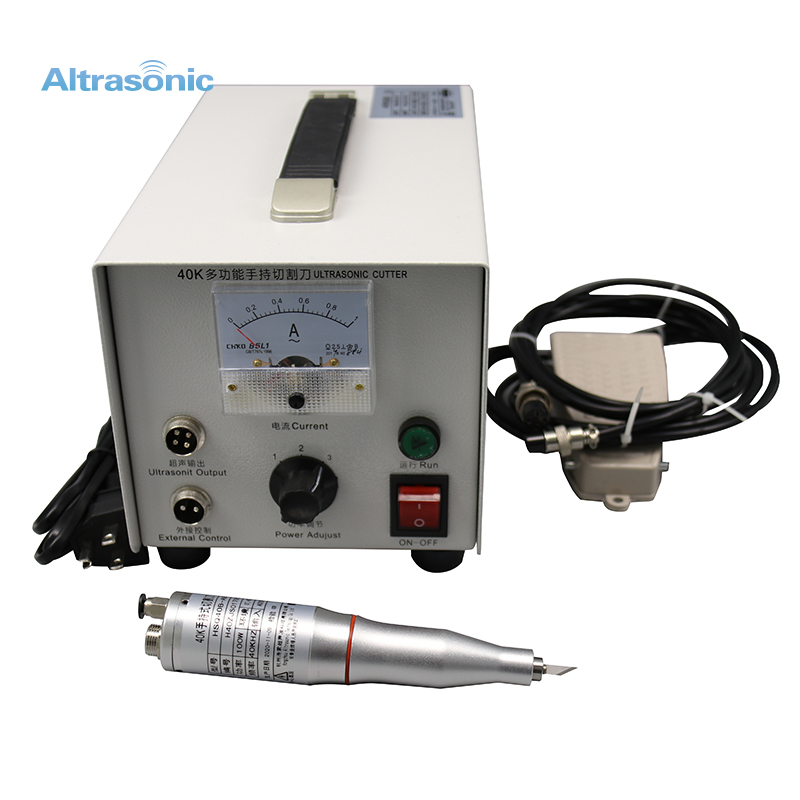

China40K Hand Held Ultrasonic Cutter Knife Multi-functional Cutting Machine
Description:
Ultrasonic cutting machine uses the energy of ultrasonic waves to melt the local heating of the material to be cut, so as to achieve the purpose of cutting the material.
Ultrasonic Cutting Machine is a class of device using ultrasonic energy for cutting. Instead of using traditional blade cutting,ultrasonic cutting has its advantages of smooth, reliable cutting, accurate trimming, no deformation, no raising, fuzzing, spinning,wrinkling etc. It can avoid the rough cutting-edge, coked edge, fuzzballs and other shortcomings of laser cutting machine.
Specification:
| Model | HS-C40 |
| Frequency | 40KHZ |
| Output Power | 100W |
| Generator | Analog generator, 155 x 265 x 170mm |

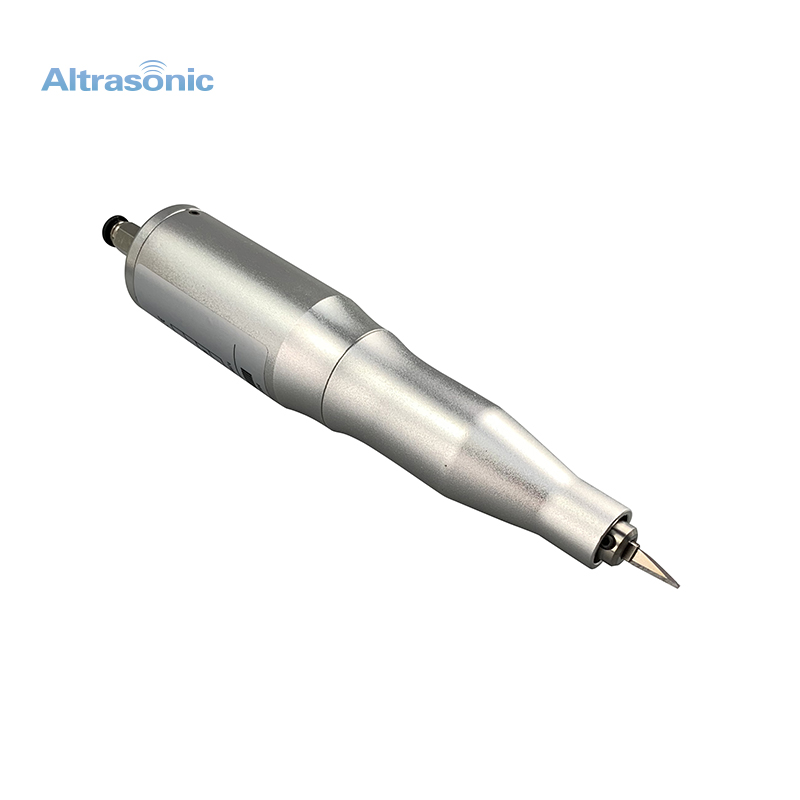

| Handle | Φ32×170 |

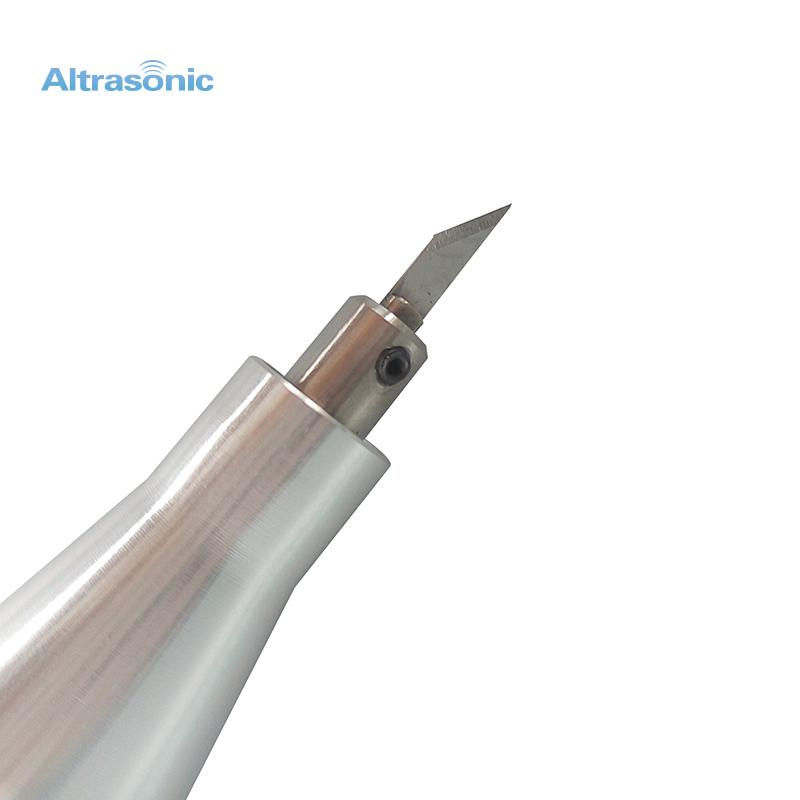

| Size of cutter | Blade replaceable |
| Length of cable | 3M |
| Outer skin | Aluminum |
| Weight | 8KG |
| Voltage | 220V / 110V |
| Accessory |
Foot switch1pc；Cut blade 25pcs；1.5mm special hex wrench 1pc； Screw M3×4L 2pcs |
| Material of cutter | titanium alloy, stainless steel |
Application:
Natural fibers
Synthetic fiber
Thin plastic products（Such as plastic film, mobile phone shell）
All types of paper, base film
Rubber, silicone
Repair of printed circuit board copper foil
ABS、PP、PE ( thickness less than 2mm)
Various types of chemical fabrics
Why choose Altrasonic:
1. Cost-benefit, we will work out the best program with reasonable price for you after testing. we also have one year warranty for none human damage, in this period factory will responsible for all damages. After warranty, we will offer repair and new spare parts for customer with economical price.
2.Purchase process is very convenient and efficient, we will deal with customer’s case within 24 hour, and it often take 3-4 days to delivery goods from here to your company via international express. Our general lead time is around 7-15days.
3.Strictly quality control, our product will do 3 times aging test and 48 hours working time for stability test before sending out.
Workshop:
CE:
Shipping:
Payment:
