35 kHz Ultrasonic Transducer

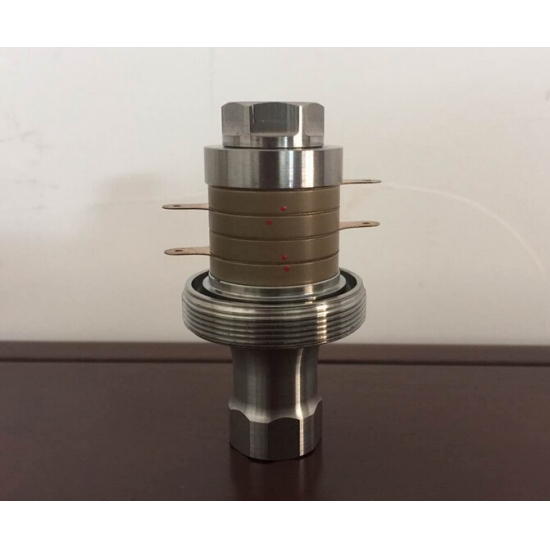

35khz Ultrasonic welding transducer replacement Telsonic machine , 4 ceramics , 4.2nf

35khz Ultrasonic welding transducer replacement Telsonic machine , 4 ceramics , 4.2nf

35khz Ultrasonic welding transducer replacement Telsonic machine , 4 ceramics , 4.2nf

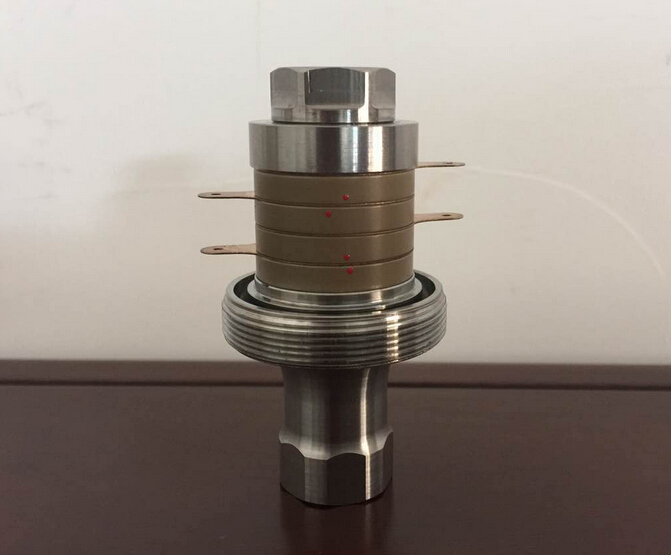

The  35KHZ ULTRASONIC WELDING TRANSDUCER  is applied to Telsonic machine.

The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.

  • Item No.:

    HS-2535-4D Telsonic
  • Payment:

    TT 100% IN ADVANCE
  • Product origin:

    China
  • Shipping port:

    Shanghai / Ningbo
  • Product Details

35khz Ultrasonic welding transducer replacement Telsonic machine , 4 ceramics , 4.2nf





Minimum Order Quantity:

4pcs

Price:

negotiation

Payment Terms:

T/T

Supply Ability:

200pcs per month

Delivery Time:

10 working days after received your payment

Packaging Details:

Packed in carton, and PE form inside

Specifications:


Model HS-2535-4D
Frequency 35khz
Output power 800-1000watt
Ceramic disc Diameter 25mm
Quantity of Ceramic discs 4 pcs
Material Titanium
Amplitude 8um
Application Welding

Advantages:


  • High Efficiency: of high mechanical factor. High transfer efficiency is obtained when working in resonance frequency.
  • Big amplitude: designed and chosen by computer, high oscillation speed and big amplitude in front operculum.
  • Big Power: under the function of the prestressed force screw rod, the piezoelectric ceramics can work freely in the highest level of power.
  • In good heat resistance: of small resonance impedance, less heat produced, can be used in a wide range of temperature with long life and high reliability.



Applications:



Our transducer can applied in the following ultrasonic machines:

Ultrasonic welding machine

All material with thermoplasticity can use Ultrasonic welding machine ,

 it can welding the material more easy and stable.Such like plastic, fabric,

 ABS, nonwovens.

Ultrasonic cutting machine

Ultrasonic food cutting is popular because the perfect edge.

Ultrasonic cutting in packing area also welcomed, it can cutting

 and sealing at the same.

Ultrasonic sewing machine

Ultrasonic sewing can sewing the material without any cotton, and keep

longer time.




Service: Timely feedback; Free design; 1 year Warranty.

Quality: Full testing before shipping; we reputation from customer.
