35 kHz Ultrasonic Transducer

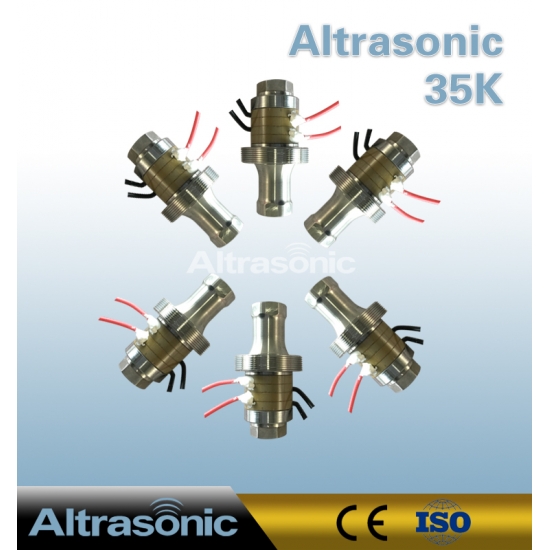

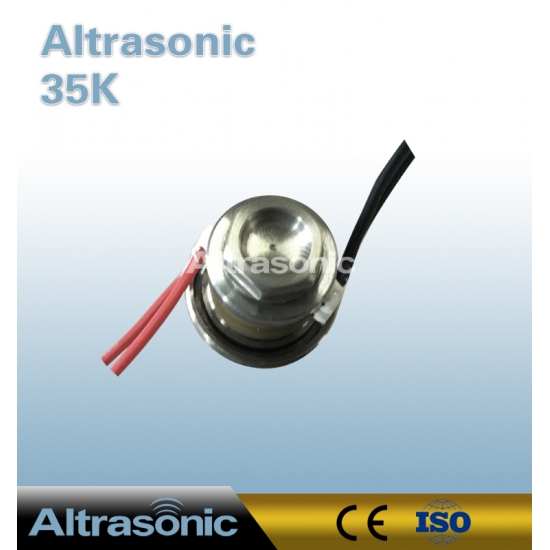

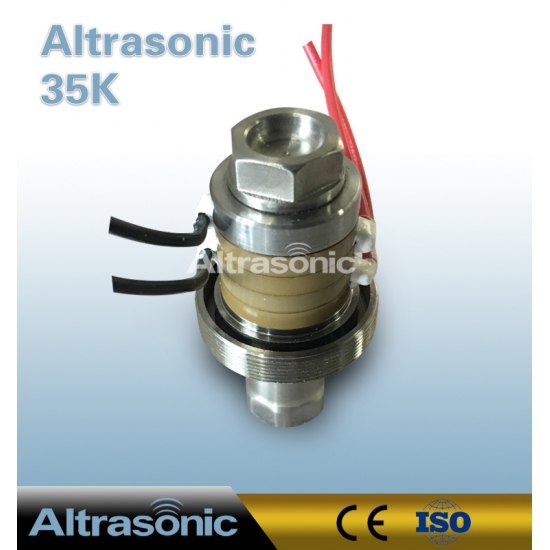

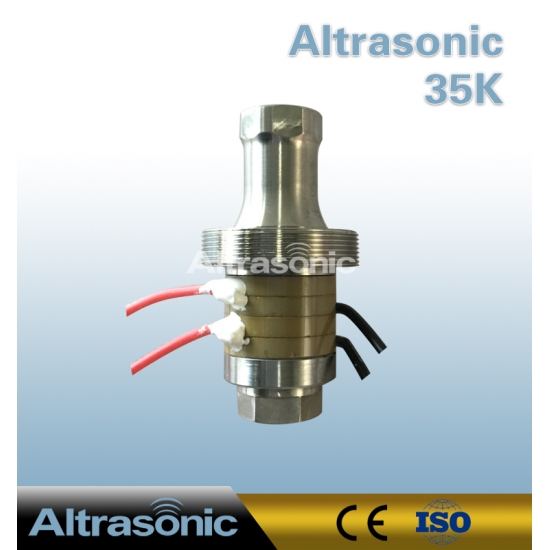

35Khz Telsonic Transducer Titanium Valve Body With 4pcs PZT8 Ceramics Capcitance 4.5nf

35Khz Telsonic Transducer Titanium Valve Body With 4pcs PZT8 Ceramics Capcitance 4.5nf

The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.

  • Item No.:

    HS2035-4D
  • Product origin:

    China
  • Color:

    Silver
  • Product Details


35Khz Telsonic Transducer Titanium Valve Body With 4pcs PZT8 Ceramics Capcitance 4.5nf






Specification:



Model HS2535-4D
Frequency 35 khz
Output power 800-1000 watt
Joint bolt M8
Ceramic disc Diameter 25 mm
Quantity of Ceramic discs 4 pcs
Capacitance 4.2-4.5nf
Amplitude 8 um
Application welding machine






Description:



The 35khz Telsonic replacement Ultrasonic Welding Transducer is applied to Telsonic type ultrasonic welding machine.

The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.



Applied Range:



Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,
which can be widely used to do welding in various kinds of industries.

Applied Industries : automobile industry, electric industry, medical industry, household appliance industry, non woven fabric clothing,
packing, office supplies, toys, etc.

Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.





Competitive Advantage:



1. Titanium, aluminum, steel materials of horn optional.

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.




Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

related products
3035-2Z 35Khz Ultrasonic Transducer For Welding Cutting Machine
3035-2Z 35Khz Ultrasonic Transducer For Welding Cutting Machine

3035-2Z 35Khz Ultrasonic Transducer For Welding Cutting Machine

3035-4Z 800W  Piezoelectric Ultrasonic Transducer 30MM
3035-4Z 800W Piezoelectric Ultrasonic Transducer 30MM

3035-4Z 800W  Piezoelectric Ultrasonic Transducer 30MM

2535-2Z 35 KHz Piezoelectric Ultrasonic Ceramic Transducers
2535-2Z 35 KHz Piezoelectric Ultrasonic Ceramic Transducers

2535-2Z 35 KHz Piezoelectric Ultrasonic Ceramic Transducers

3535-2D Piezoelectric Transducer For Welding Machine
3535-2D Piezoelectric Transducer For Welding Machine

3535-2D Piezoelectric Transducer For Welding Machine

3535-4D 1000W Transducer For Ultrasonic Welding Machine
3535-4D 1000W Transducer For Ultrasonic Welding Machine

3535-4D 1000W Transducer For Ultrasonic Welding Machine

2535-4D 35Khz 500W Transducer For Branson Welding
2535-4D 35Khz 500W Transducer For Branson Welding

2535-4D 35Khz 500W Transducer For Branson Welding

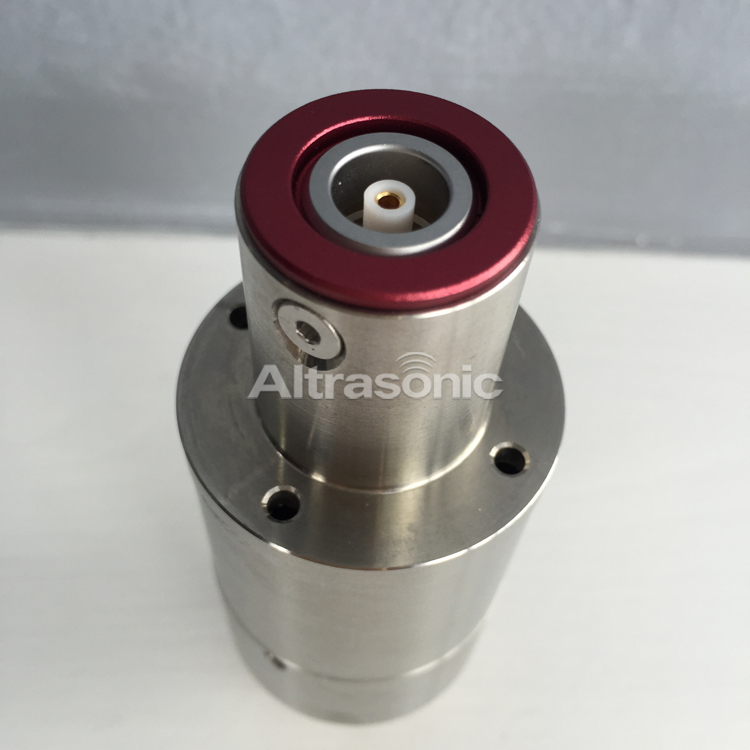

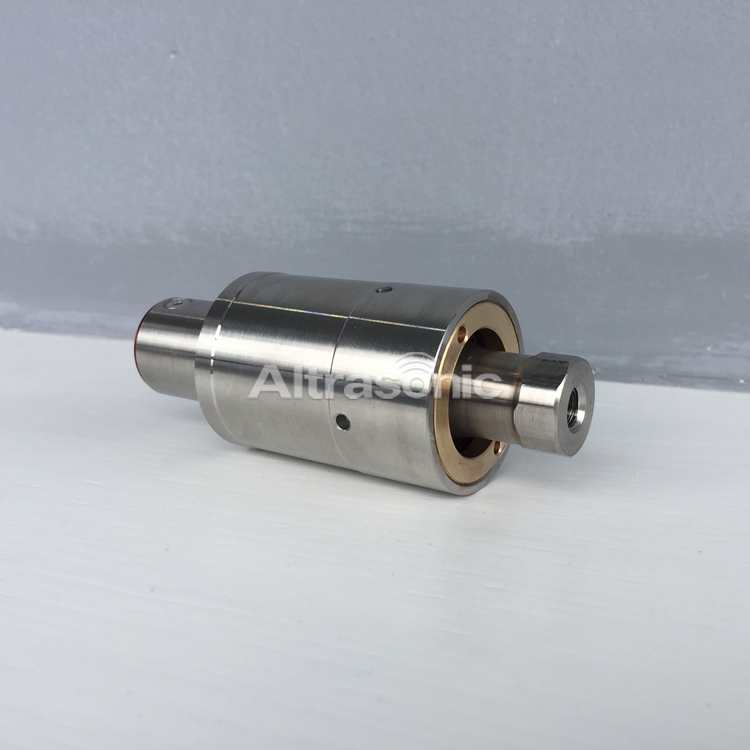

Ultrasonic Converter
