Today ultrasonic welding is used in every industry that processes plastics. Most common uses are in the Automotive, Medical, Textile, Food, Plastics, and Packaging industries.Conforming to the spirit of "Service First", ALTRASONIC provides lifetime maintenance to its products for as long as they are used by customers.
Item No.:
HS-W35Payment:
T/T, Paypal, Western UnionProduct origin:
ChinaColor:
BlackShipping port:
Ningbo or Shanghai35Khz Handheld Ultrasonic Spot Welding Machine For Auto Interior Parts
Description:

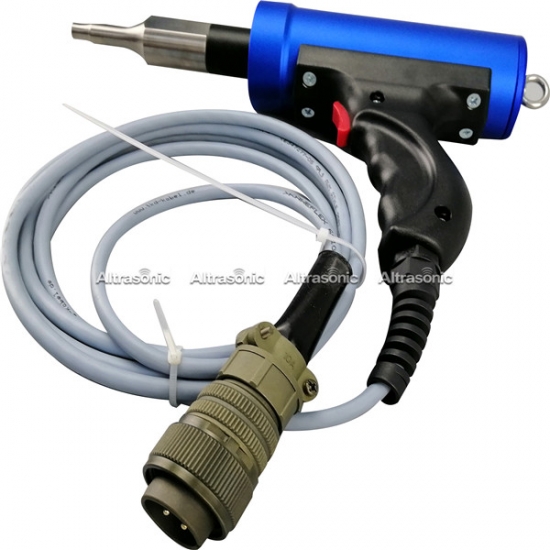

The Ultrasonic Welding Gun we offer can prove helpful for you when it comes to welding thermoplastic items. It is an efficient tool weld the areas that tough and big. This product available on our site in the design of a gun. It has straight staple and small diameter. This makes sure that you can get firm grip on the ultrasonic machine while using it. You don’t have to worry this tool being loose in connections. It has optimum quality connectors in it to counter such possibility. We have made the design of the tool simple, so that you can find it easy to operate it. A variety of models of this machine are also available. This way you can purchase it as per your frequency requirements.
Specification:
Item No. |
HSW20 |
HSW30 |
HSW35 |
HSW40 |
HSW50 |
Frequency |
20kHz |
30kHz |
35kHz |
40kHz |
50kHz |
Power |
1000W |
1200W |
1000W |
500W |
300W-500W |
Horn |
≤12mm |
≤10mm |
≤10mm |
≤10mm |
≤10mm |
Housing Diameter |
44mm |
44mm |
44mm |
44mm |
44mm |
Weight of Welder |
1.0kg |
1.0kg |
1.0kg |
1.0kg |
1.0kg |
Advantage:
1. Application in riveting, forming and welding
2. Light weight, easy to take, easy to operate (handheld)
3. Equipped with welding timer
4. Easy to set time welding
5. Equipped with an overload protection circuit (voltage, current, phase, temperature, output)
6. FET power output
7. Automatic resonance
8. Maintain the amplitude function automatically
9. Achieve maximum power with 105m/s
Application:
Ultrasonic plastic welding is also utilized in the medical industry, primarily because it doesn’t introduce contaminants. Items such as anesthesia filters, blood filters, IV catheters, dialysis tubes and face masks can be made using ultrasonic plastic welding. Another important application in the medical field is the construction of such textile wear as hospital gowns, surgery garments, and transdermal patches, just to name a few. These items can be sewn and sealed using ultrasonic plastic welding to avoid and reduce the risk of infection.
Ultrasonic plastic welding is frequently used in the packaging industry. Everyday items, ranging from butane lighters to food containers, are created or packaged with ultrasonic plastic welding. Ultrasonic plastic welding is also found in the packaging of dangerous explosives, such as fireworks or dangerous chemicals. These items can’t be subjected to high temperatures, yet must be contained in an airtight container that can withstand stress and high pressure.
The food industry relies on ultrasonic plastic welding because it’s fast and sanitary while producing airtight seals. Milk and juice containers are prime examples of products sealed with an ultrasonic plastic welding machine. To complete the task, paper cartons are coated with sheer layers of plastic that are then welded together.
