30khz ultrasonic Cutter with Titainum Blade for PVC Neylon Sheets Cutting

  • China
  • Altrasonic
  • HS-C30
  • Ningbo or Shanghai
  • Silver, Blue and Black
  • 1
  • T/T, Paypal, Western Union
  • $2599/PC

  • Contact Now
Product Details

30khz Ultrasonic Cutter with Titainum Blade for  PVC Neylon Sheets Cutting







Output Power

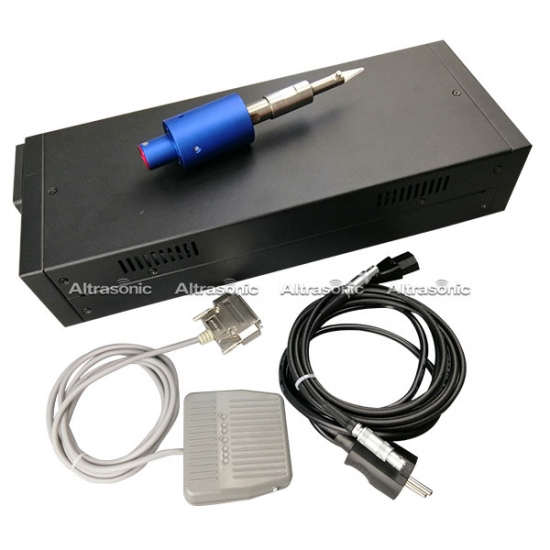

Digital generator, 452 x 180 x 100mm



Size of cutter

Blade replaceable

Length of cable


Outer skin





220V / 110V

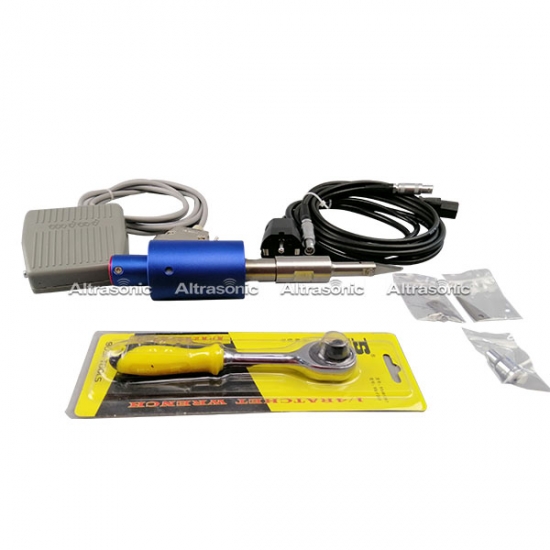

Foot switch 1pcCut blade 2pcs
1.5mm special hex wrench 1pcScrew M3×4L 2pcs

Material of blade

 titanium alloy, stainless steel

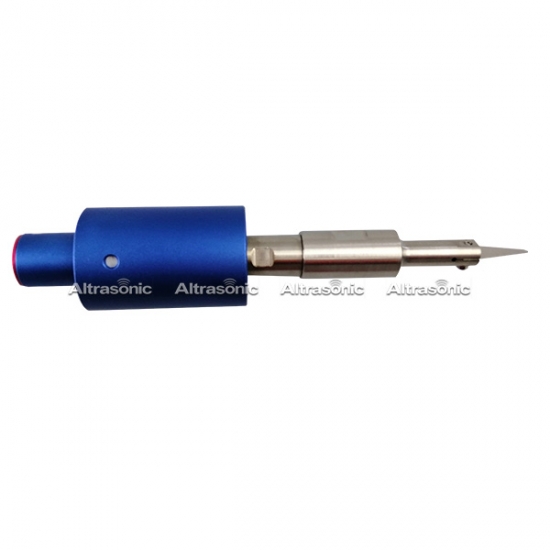

The ultrasonic cutting machine is composed of Ultrasonic transducer, ultrasonic booster, ultrasonic cutting knife and ultrasonic generator.

Ultrasonic generator

It converted the high frequency high voltage AC current to the ultrasonic transducer. Ultrasonic transducers are equivalent to energy conversion devices that convert the input power into mechanical energy, ie, ultrasonic waves.

Ultrasonic booster

It magnifies the output amplitude of the ultrasonic transducer.

Ultrasonic cutting knife

Further amplify the amplitude, focusing ultrasound energy to the cutting part of the material. This cutting site is effected by the huge ultrasonic energy, and becomes softening, melting, strength greatly reduced instantly. So only need to impose a small force to achieve the purpose of cutting materials



Due to the characteristics of ultrasonic cutting, all fabrics finish with a superb edge seal, which most importantly prevents fraying. This is due to the intense heat that is rapidly concentrated on the cutting/sealing head. No other cutting/sealing methods can compare to this edge sealing ultrasonic cutting technology.

Ultrasonic cutters are designed to give the best edge seal on all fabrics without having to adjust the machine for different fabrics or thickness.

Ultrasonic Cutters are small in size and do not require large installation areas. Special equipment is not required for the installation. Ultrasonic Cutters are small enough to be hand-held for many operations.

Ultrasonic Cutters can also be attached to automated machinery arms. Although they may not be familiar to you, they play an active role in the manufacturing processes of various industrial products which we use daily.

A sharp cutting edge, which is difficult for water-jet or laser cutting, can be easily performed by our ultrasonic cutters.It leads to higher productivity and less downtime.



Ultrasonic Cutters can cut difficult-to-cut materials:



Prepreg materials





Nonwoven fabric


Plastic sheet


The difference between traditional cutting and ultrasonic cutting:

Ultrasonic cutting machine is the use of wave energy for cutting equipment, the main t feature is not to use the traditional edge.
The traditional cutting utilizes a tool with a sharp edge to press the cutting material. The pressure is concentrated at the edge of the blade, the pressure is very large, more than the shear strength of the cutting material , then the material is cut open. As the material is cut by a strong pressure, so the cutting tool edge should be very sharp and the material itself has to bear the relatively large pressure. Therefore the cutting effect for the soft, flexible material is not good, especially more difficult for sticky material.


Problem and solution:




Cause description



Power switch to “I” the light is out

Power plug loose

Plugging in

Power line break

Fix it yourself or send back

Power switch bad contact

Fuse is broken

Power light and

running light are OK

Air plug and socket not connected

Tighten the connection position

Handle have abnormal Sound

Clean the card slot, use new blade

Intermittently use, but the handle

keeping hot

Please send it back

Out-put air plug break

Screw loose

Tighten the screw

Running light is ok

Running switch bad

Please send it back



Compared to conventional methods, ultrasonic cutting delivers:


Improved cut quality for carpets, headliners and plastics

Lower initial investment and operating costs

Reduced floor space requirements

A greener footprint with less noise and waste
