30kHz Ultrasonic Trimming Machine with Food Switch for Cutting Glass Fiber

30kHz Ultrasonic Trimming Machine with Food Switch for Cutting Glass Fiber

The speed of the ultrasonic vibration is so fast that you cannot feel it during the cutting process.

  • Item No.:

    HS-C30
  • Payment:

    T/T, Paypal, Western Union
  • Product origin:

    China
  • Color:

    Silver, Blue and Black
  • Shipping port:

    Ningbo or Shanghai
  • Lead Time:

    15
  • Product Details



30kHz Ultrasonic Trimming Machine with Food Switch for Cutting Glass Fiber




Specification:



 Item No.  HS-C30
 Frequency  30kHz
 Power  500Watt
 Voltage  AC110-240V, 50/60Hz

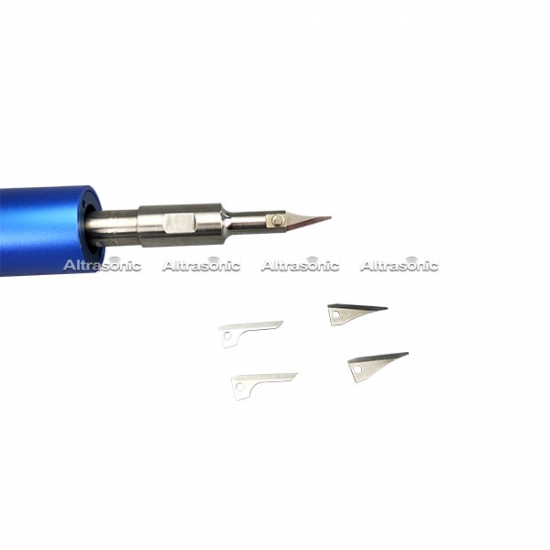

 Material of Blade  Tungsten Steel and HSS
 Accessories  Foot Switch, Aditional Blade, Cables
 Cable Length  3M
 Blade  Replaceable
 How to use  Handheld or Automated Manufacturing
 Gross Weight  15KG



Description:

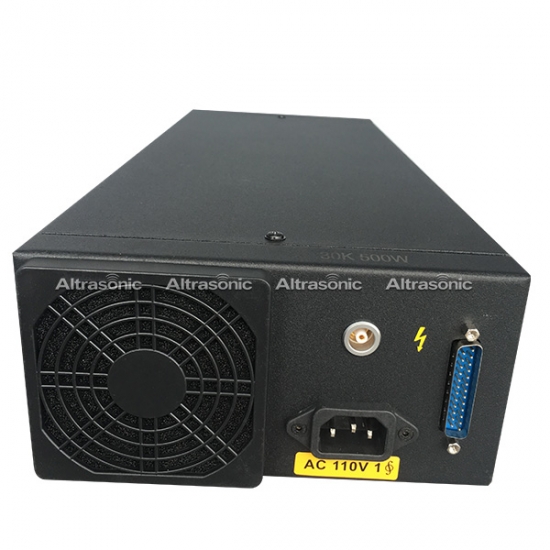

The main components of a set of ultrasonic cutting systems include ultrasonic generators (drive power), ultrasonic transducers, horns, cutting knives (tool heads) and the output lines, control lines. Ultrasonic drive power will be converted into high-frequency high-voltage AC current, lost to the ultrasonic transducer. Ultrasonic transducer is actually equivalent to an energy conversion device, it can enter the input energy into mechanical energy, that is, ultrasonic waves. Its manifestation is the transducer in the longitudinal back and forth telescopic movement.

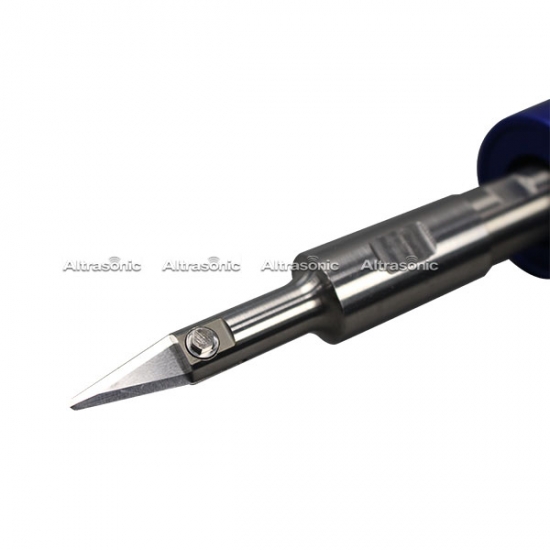

The frequency of the telescopic motion is equivalent to the frequency of the high frequency AC current supplied from the drive power supply. The effect of the horn is to fix the entire ultrasonic vibration system, and the other is to amplify the output amplitude of the transducer. The cutter (tool head) further amplifies the amplitude on one hand, focusing the ultrasound. On the other hand is the output of ultrasonic waves, the use of cutting knife similar to the edge, the ultrasonic energy concentrated input to the cutting material cutting parts.


Processing Center:


CE:


Shipping Method:


Payment Method:
