30KHz Ultrasonic Cutting Machine for Synthetic Fabric Cloth Plastic Sheet Long Time Stable Working

  • China
  • Altrasonic
  • HS-C30
  • Shanghai or Ningbo
  • Silver, Blue and Black
  • 1
  • T/T, Paypal, Western Union
  • $2599/PC

  • Contact Now
Product Details


30KHz Ultrasonic Cutting Machine for Synthetic Fabric Cloth Plastic Sheet Long Time Stable Working




Specification:



Item No.: HS-C30
Frequency 30kHz
Output Power 500Watt

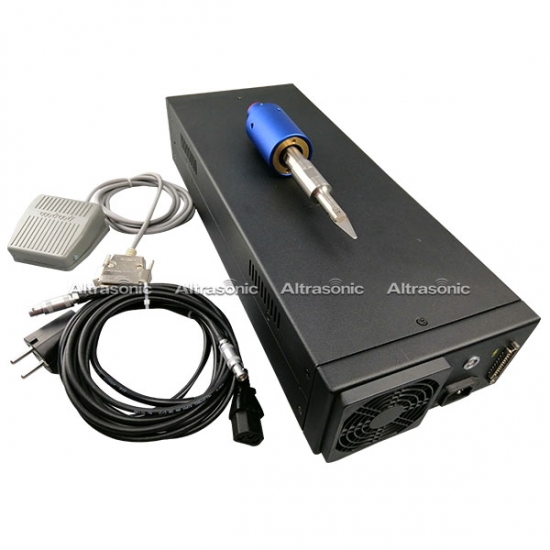

Generator Digital generator, 452 x 180 x 100mm
Handle Φ44×220

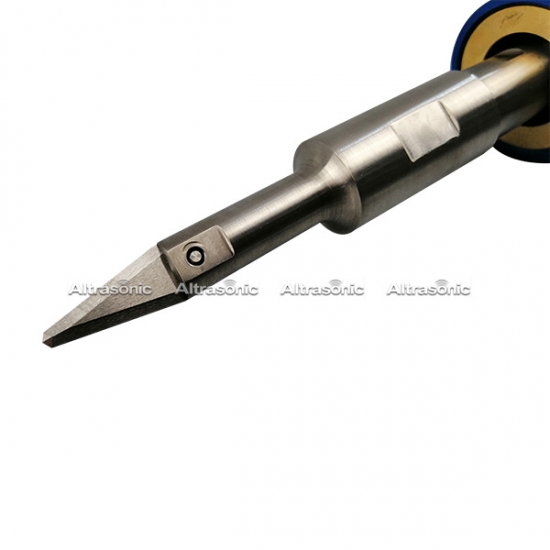

Size of cutter Blade replaceable
Length of cable 3M
Outer skin Aluminum
Weight 8kgs
Voltage 220V / 110V

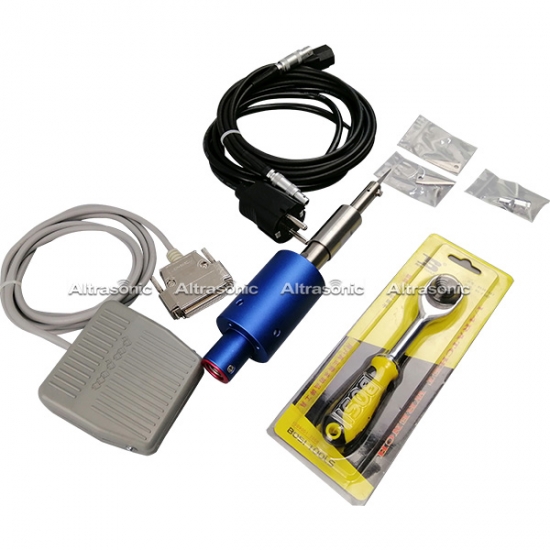

Accessory Foot switch1pc;
Cut blade 5pcs;
1.5mm special hex wrench 1pc;
Screw M3×4L 2pcs
Material of cutter Magnalium alloy, titanium alloy, stainless steel





Description:



Ultrasonic cutting has its advantages of smooth, reliable cutting, accurate trimming, no deformation, no raising, fuzzing, spinning, wrinkling etc.

It can avoid the rough cutting-edge, coked edge, fuzzballs and other shortcomings of laser cutting machine.

Ultrasonic cutting machine is used for cutting rubber, synthetic fabric, cloth, plastic, etc.
The cutting of food products using ultrasound is performed when an ultrasonic blade comes into contact with the product to be cut, the high vibration of 40,000 pulses per second, makes this product very easily be cut even if it is of delicate or sticky texture composition.





Application:


  • Aramid Prepreg
  • Boron Prepreg
  • Carbon Phenolic Prepreg
  • Fiberglass Prepreg
  • Graphite Prepreg
  • Hybrid Prepreg
  • Thermoplastic Prepreg
  • Unidirectional Tape
  • Aluminum Core Cured/Uncured Rubber
  • Foam Core Sealant
  • Nomex Core
  • Phenolic Core
  • Woven Fabric
  • Braided Materials





Advantage:


  • The use of high power ultrasonic transducer vibrating element, ensure the long time stable working.
  • The cutting speed is improved greatly, the efficiency 10 times higher than the traditional cutting knife.
  • Cutting all kinds of ordinary tool to cut products, solve production problems.
  • Can be installed high hardness blade, cutting blade can be replaced, greatly reducing the use cost.
  • Cutting tool complete varieties, can also be customized according to customer process shaped cutting tool.
  • Installation, easy to use, almost does not change the original cutting process.
  • Can be used in the production of circular ultrasonic tool cutting equipment, rolling cutting, suitable for cutting special.

  • Can use air-cooled, water-cooled design, adapt to various working conditions and environment.
