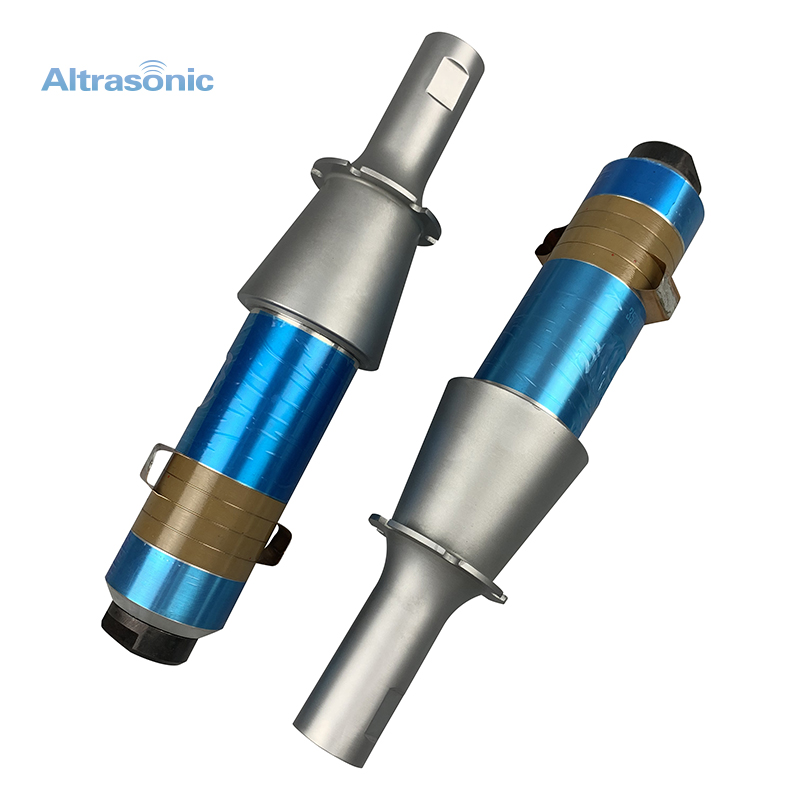

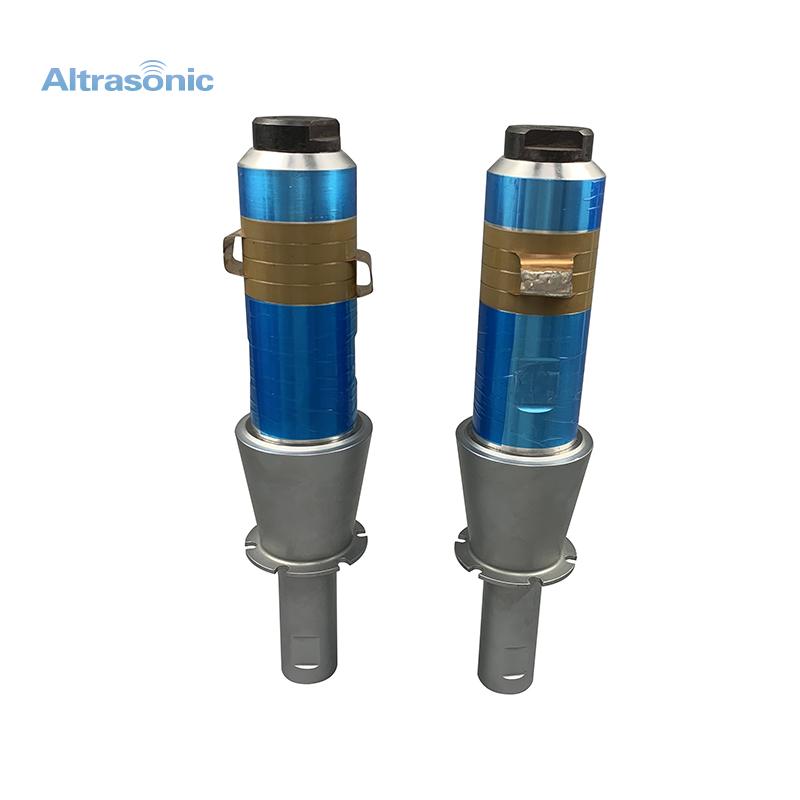

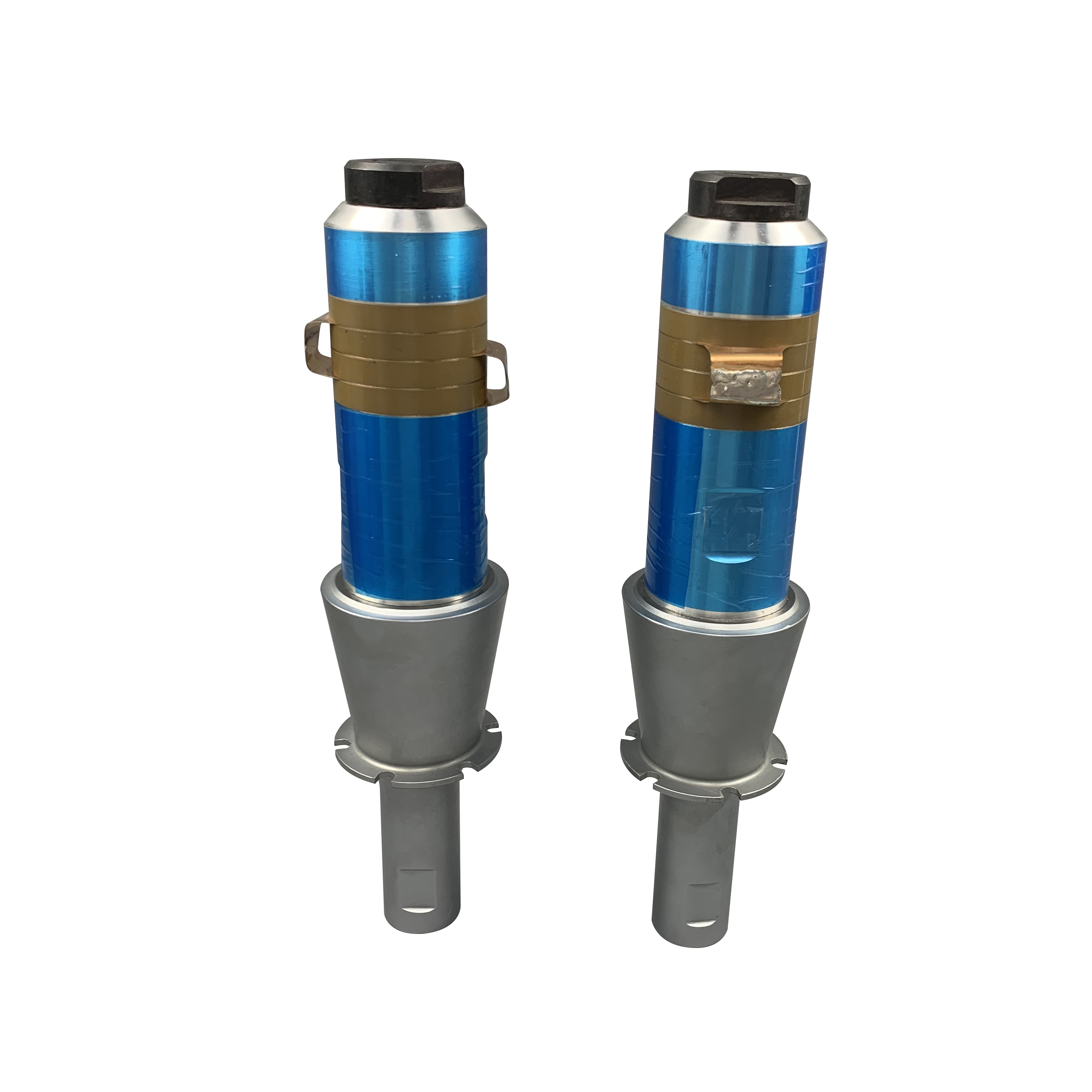

The 15kHz ultrasonic transducer has high quality and steady output amplitude even the load markedly changed. Bolt-on mounting gives the fast, easy installation and high reliability.
Item No.:
HS-6015-4ZPayment:
T/T, PayPal, Western UnionProduct origin:
ChinaColor:
Silver, black, blue and yellowShipping port:
Shanghai or NingboLead Time:
72600W Ultrasonic Piezoelectric Transducer , High Power Piezo Transducer
Specification:
Item No
HS-6015-4Z
Frequency
15 kHz
Power
2600 watt
Joint bolt
M20*1.5 or M16*1
Diameter of ceramic
60 mm
Quantity of ceramic
4 pcs
Resistance
15 Ω
Amplitude
10 um
Application
Welding
Description:
Ultrasonic transducers convert alternating current (AC) into ultrasound and vice versa. The transducers typically use piezoelectric transducers or capacitive transducers to generate or receive ultrasound. Piezoelectric crystals are able to change their sizes and shapes in response to voltage being applied. On the other hand, capacitive transducers use electrostatic fields between a conductive diaphragm and a backing plate.
Applied Range:
Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,
which can be widely used to do welding in various kinds of industries.
Applied Industries : automobile industry, electric industry, medical industry, household appliance industry, non woven fabric clothing,
packing, office supplies, toys, etc.
Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.
Advantages:
1. High mechanical quality
2. Good heat resistance
3. Large range of working temperature
4. Low resonance impedance and heat productivity
5. Fastened by bolt
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
