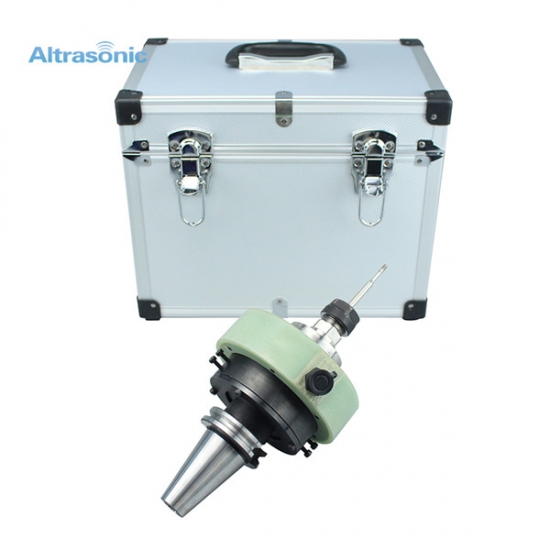

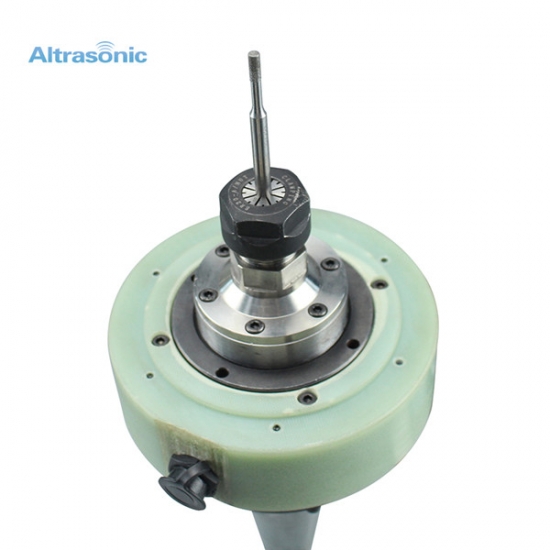

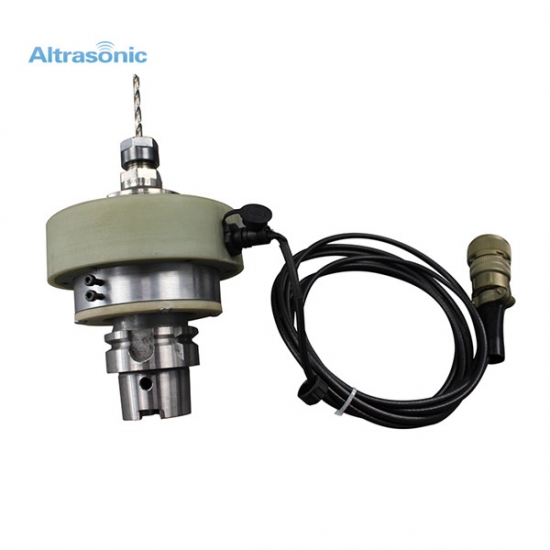

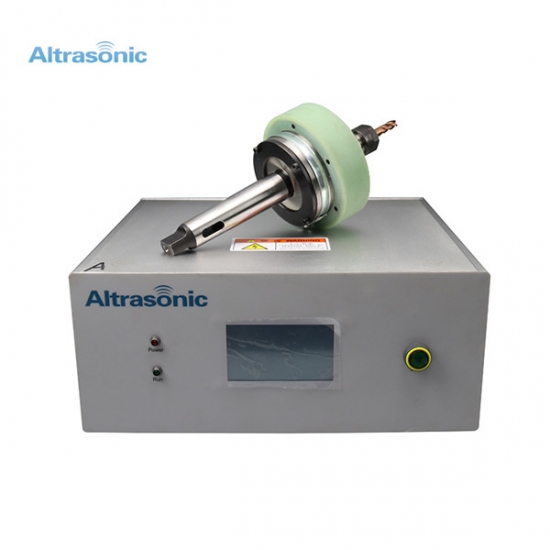

20kHz Ultrasonic milling machine Titanium Alloy for Glass Ceramic Silicon Quartz
- China
- Altrasonic
- HS-M20
- Ningbo or Shanghai
- Green and Blue
- 1
- T/T, Paypal, Western Union
- Contact Now
20kHz Ultrasonic milling machine Titanium Alloy for Glass Ceramic Silicon Quartz
Parameter:
Frequency | 15-21khz |
Output power | 500watt |
Voltage | 110V / 220V |
Dimensions of digital generator | 375*170*330mm |
Amplitude of the horn | more than 10um |
Speed | 3000 REV/min |
Matching horn | Milling cutter: Carbide cutter diameter 2-13 Disc cutter: diameter 50 indexable |
Weight | 20kgs |
Connecting horn modle | BT-40 |
Principle:
Ultrasonic machining process uses a power supply that converts conventional line voltage to 20KHz
electrical energy.
This high-frequency electrical energy is provided to a piezoelectric converter that changes high frequency electrical energy into mechanical motion.
The ultrasonic motion from the converter is amplified and transmitted to the horn and cutting tool.
This causes the horn and attached cutting tool to vibrate perpendicularly to the tool face thousands of
times per second with no side to side motion.
A recirculating pump forces E/Z Pump™ abrasive, suspended in a liquid medium, between the vibrating
tool face and the workpiece. The abrasive particles strike the workpiece at 150,000 times their own weight.
These tiny abrasive particles chip off microscopic flakes and grind a counterpart of the tool face.
The advantages of ultrasonic machining over ordinary machining:
1. improve the surface finish grades 1-2;
2. The tool life extended 1-2 times;
3. greatly reduce cutting resistance, there is a significant reduction in the hot chips. From the point of view of single chip color, from blue to purple yellow chips, it took a lot of heat;
4. Virtually any hard material can be machined;
5. Little heat is produced;
6. Since the motion of the tool is up-and down vibration rather than rotation as in traditional machining, the holes cut are not limited to circular shapes but can be any shape. Custom "cookie cutter" tools can cut complicated shapes;
7. good surface finish and higher structural integrity is obtained;
PreviousGood finish processing machine , Ultrasonic assisted milling parts , shorten processing time
