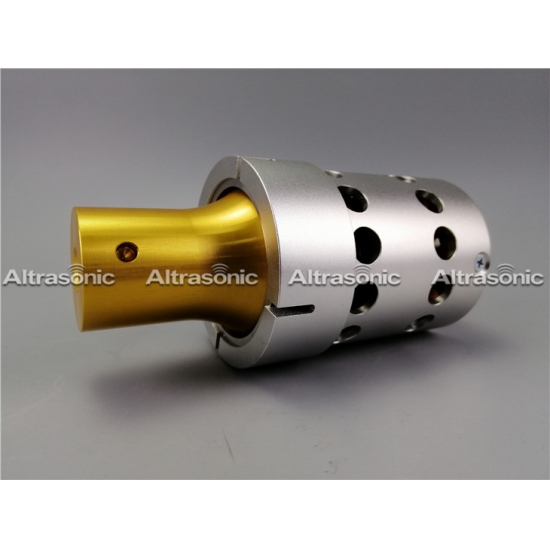

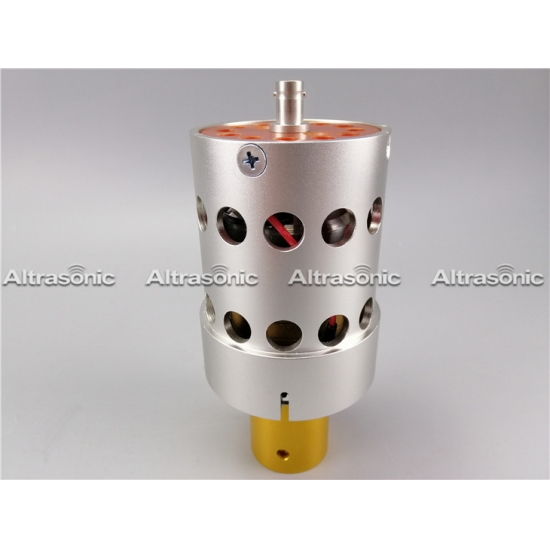

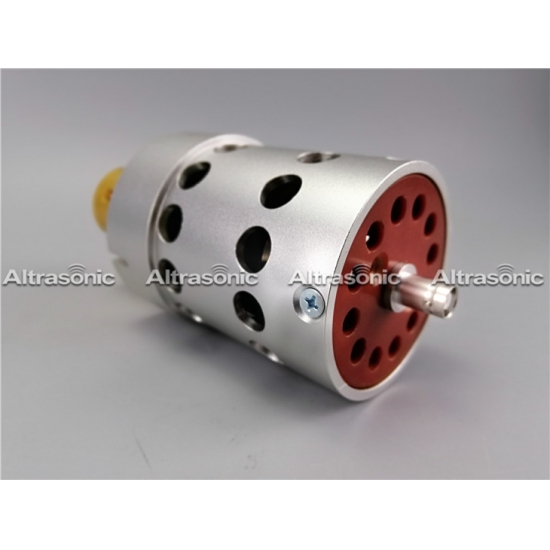

20kHz Replacement Dukane 41C30 Type Ultrasonic Welding Transducer

20kHz Replacement Dukane 41C30 Type Ultrasonic Welding Transducer

We can replace the front and back cover of the transducer according to the need. The 20k ultrasonic transducer can be installed with ultrasonic thermoplastic welding machine to weld thermoplastic materials.

  • Item No.:

    HS-D41C30
  • Payment:

    T/T, PayPal, Western Union
  • Price:

    $788/piece
  • Product origin:

    China
  • Color:

    Silver and Yellow
  • Shipping port:

    Shanghai or Ningbo
  • Lead Time:

    7
  • Product Details


20kHz Replacement Dukane 41C30 Type Ultrasonic Welding Transducer




Specification:


 Model Replacement Dukane 41C30
 Frequency  20kHz
 Output power  2000Watt
 Joint bolt  1/2-20UNF
 Ceramic disc Diameter  50mm
 Qty of ceramic discs  4pcs
 Capacitance  11-17nf
 Amplitude  10um
 Application  Plastic welding machine
 Materials  Titanium materials
 Supply Replacement converter  NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco
 Delivery time  7 workdays
 Packing  EPE, foam, carton



Description:



Ultrasonic transducer is the core part of the whole machine, which converts electrical energy into mechanical energy through piezoelectric ceramic (PZT) piezoelectric effect. Our transducer  Direct replacement for the Dukane 41C30 and  has lower cost, rugged quality and superior value.We can replace the front and back cover of the transducer according to the need. The 20k ultrasonic transducer can be installed with ultrasonic thermoplastic welding machine to weld thermoplastic materials.



Competitive Advantage:



1. Titanium materials

2. One by one testing to ensure that each transducer performance are excellent.

3. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.





What we can do for you:



1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.

2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.

3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.
