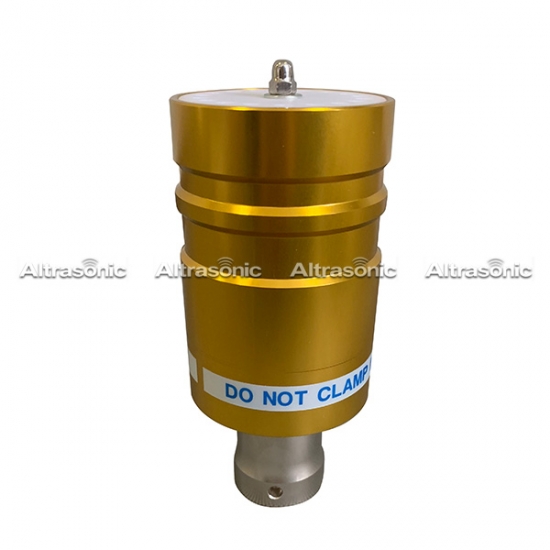

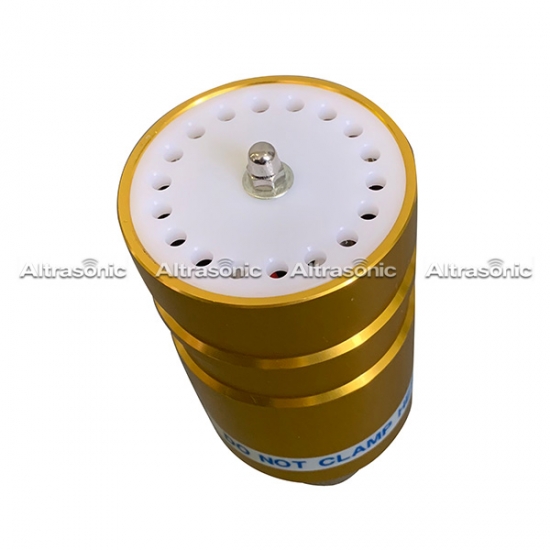

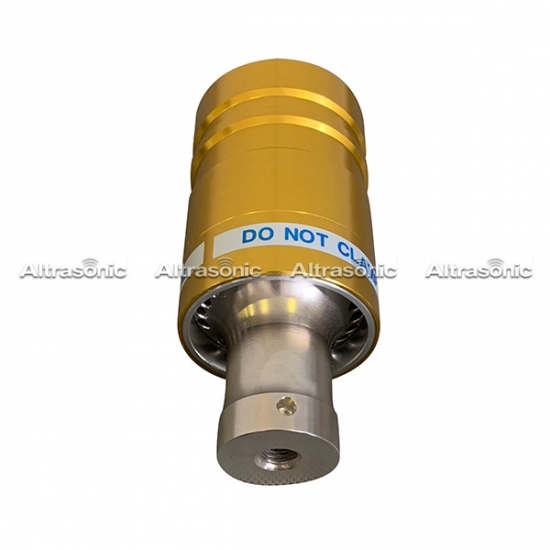

20kHz 1500w Replacement Branson 803 Ultrasonic Welding Transducer 50 Mm Ceramic Diameter

  • China
  • Altrasonic
  • HSB803
  • Gold
  • 1

  • Contact Now
Product Details

20kHz 1500w Replacement Branson 803 Ultrasonic Welding Transducer 50 Mm Ceramic Diameter

Description:

The Ultrasonic Converter replacement for Branson Plastic Welding Machine Direct replacement for the Branson machine that delivers lower cost, rugged quality and superior value.
First, all of the parts are all new.

The parts are made from certified materials in tightly controlled manufacturing processes, assembled andtested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to ensure performance that duplicates the OEM part.

Specification:

Model

HSB803

Frequency

20 khz

Output power

1500 watt

Joint bolt

1/2-20unf

Ceramic disc Diameter

50 mm

Quantity of Ceramic discs

4 pcs or 6pcs

Capacitance

11.5 - 12.5 nf

Amplitude

20 um

Application

welding machine

Product features:

All-new made in China

Meets or exceeds all Branson specifications

Directly replaces Branson803

Certified materials

Made in ISO-9002 registered facility

Competitive Advantage:

1. Titanium materials and Aluminum materials optional.

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.

What we can do for you,

1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.

2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.

3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.
