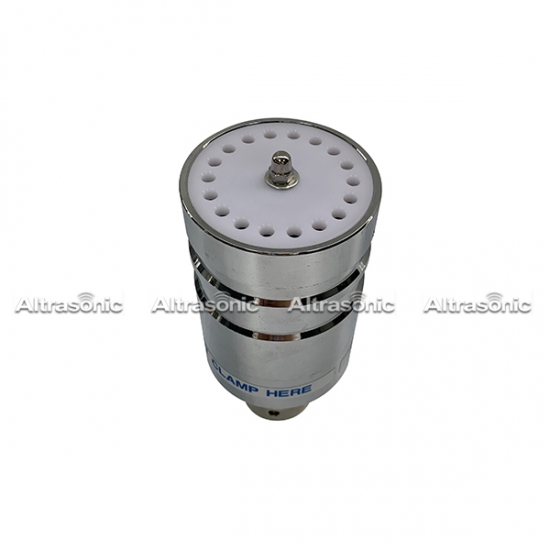

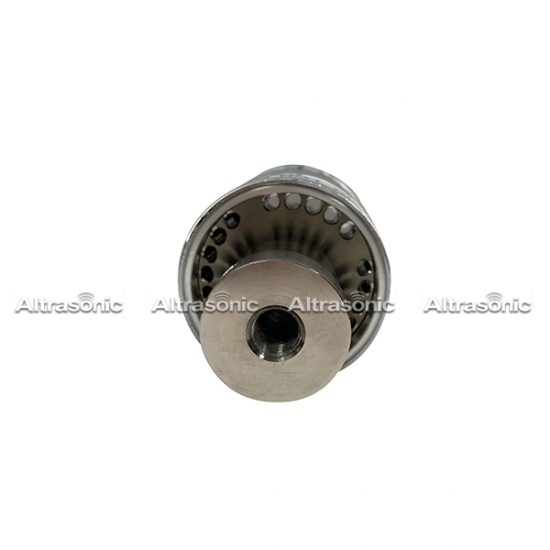

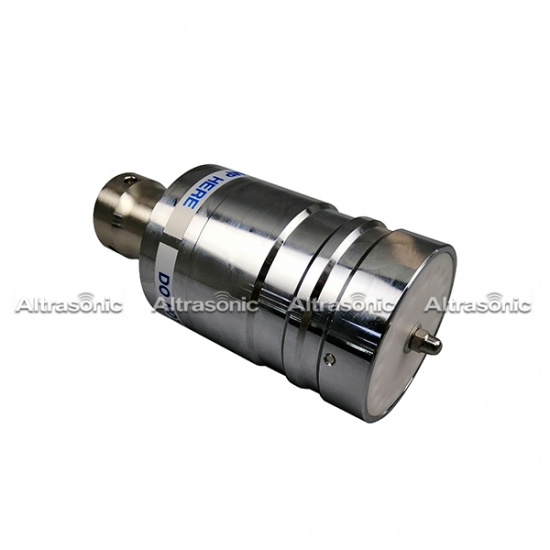

Replacement Branson 803 transducer

20Khz 1500W Ultrasonic Branson 803 Converter with 70mm Golden Protective Housing

  • China
  • Altrasonic
  • HS-B803
  • Ningbo or Shanghai
  • Silver
  • 1
  • T/T, Paypal, Western Union
  • $699/PC

  • Contact Now
Product Details


20Khz 1500W Ultrasonic Branson 803 Converter with 70mm Golden Protective Housing






Specification:



Model HS-B803
Frequency 20 khz
Output power 1500 watt
Joint bolt 1/2-20UNF
Ceramic disc Diameter 50 mm
Quantity of Ceramic discs 4 pcs or 6 pcs
Capacitance 11.5-12.5pf
Amplitude 20 um
Application welding machine





Description:



The Branson replacement 803 Ultrasonic Welding Transducer is applied to Branson type ultrasonic welding machine.

The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.





Applied Range:

Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,
which can be widely used to do welding in various kinds of industries.
Applied Industries : automobile industry, electric industry, medical industry, household appliance industry, non woven fabric clothing,
packing, office supplies, toys, etc.
Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.


Competitive Advantage:



  • Titanium, aluminum, steel materials of horn optional.
  • Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
  • One by one testing to ensure that each transducer performance are excellent.

  • In good heat resistance, can be used in a wide range of temperature with long life and high reliability.



What we can do for you:

1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.

3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.
