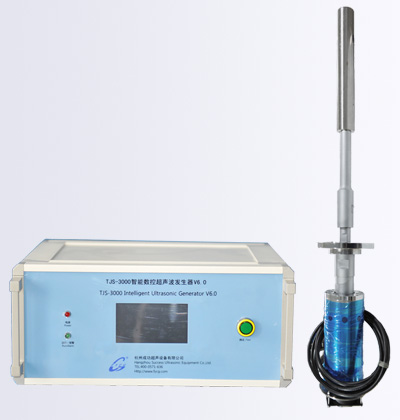

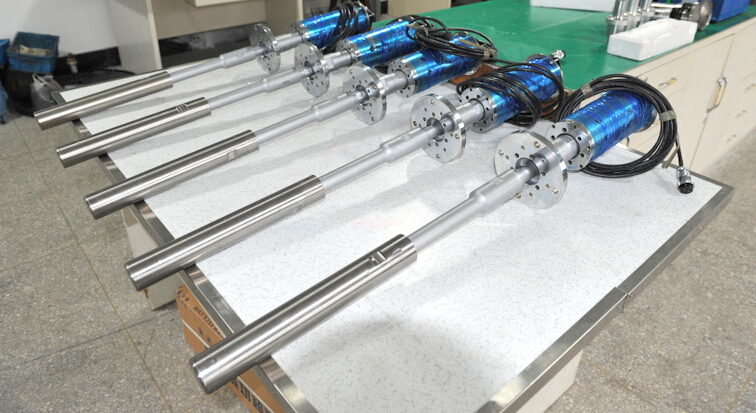

20 KHz 2000W Ultrasonic Metal Crystallization Processor For Broken / Fine Metal Particles
Product origin:
CHINAProduct weight:
17Kg20 KHz 2000W Ultrasonic Metal Crystallization Processor For Broken / Fine Metal Particles
Minimum Order Quantity: |
1 Set |
Price: |
|
Packaging Details: |
Foam case |
Delivery Time: |
In 7 Working Days |
Payment Terms: |
T/T, WESTERN UNION |
Supply Ability: |
100 Sets/Month |
Quick Detail:

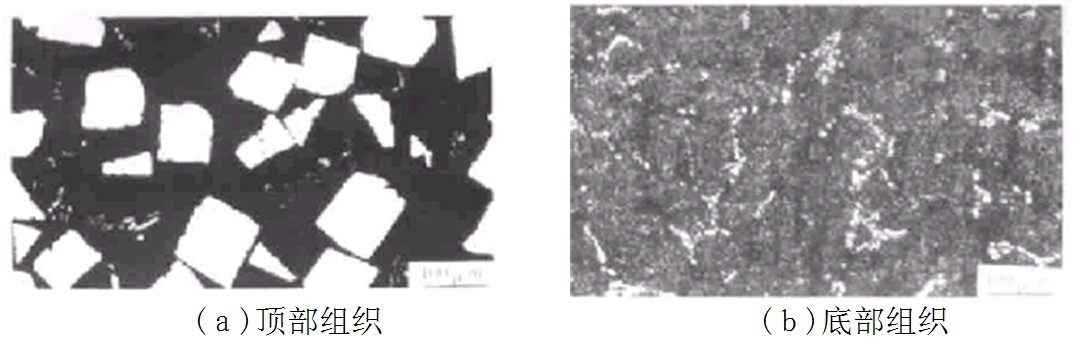

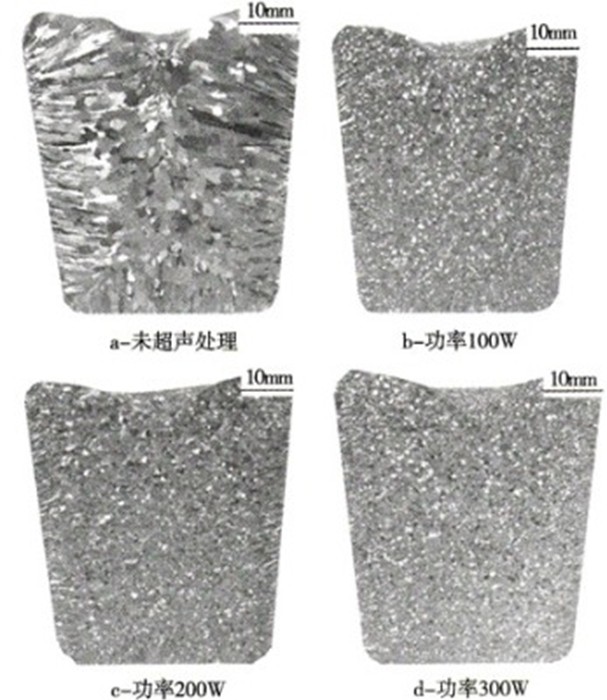

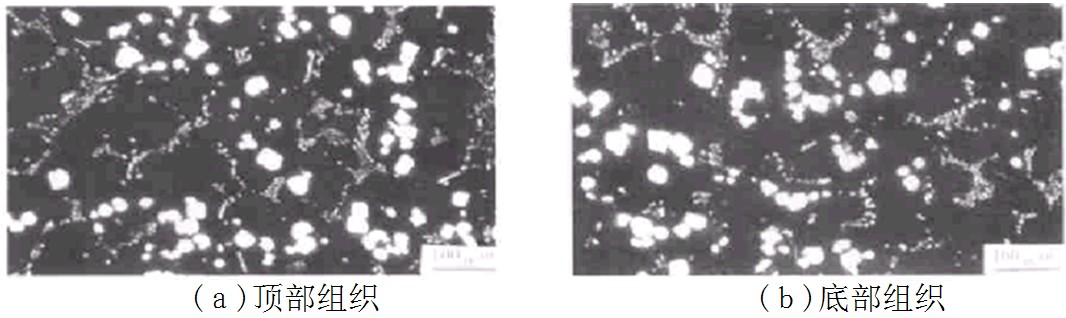

Significantly refine the metal grain
Uniform alloy composition to accelerate the bubble motion
Improvements in the metal
Description:
20 KHz 2000W Ultrasonic Metal Crystallization Processor can significantly refine the metal grain, uniform alloy composition to accelerate the bubble motion, significantly improving the performance of the metal material strength, hardness, ductility, toughness
Applications:

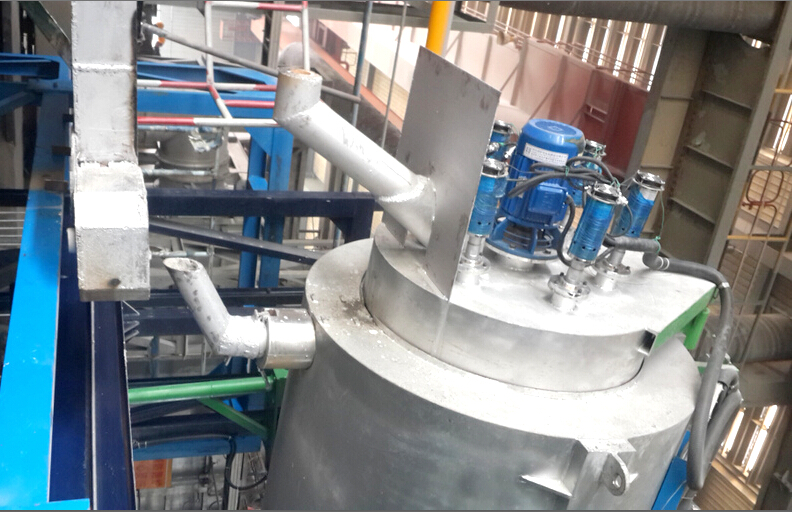

High-strength aluminum alloy, magnesium alloy casting
* Aluminium, magnesium alloy bar stock, sheet metal production
The crystallization of a variety of alloys, the motor rotor degassing
* A variety of metal matrix composites, high strength aluminum alloy piston casting
Specifications:
Model |
S-P20-1000 |
S-P20-1500 |
S-P20-2000 |
S-P20-3000 |
Frequency |
20±1 KHz |
20±1 KHz |
20±1 KHz |
20±1 KHz |
Power |
1000 W |
1500 W |
2000 W |
3000 W |
Voltage |
220±10% V |
220±10% V |
220±10% V |
220±10% V |
Temperature |
300 ℃ |
300 ℃ |
300 ℃ |
300 ℃ |
Pressure |
35 MPa |
35 MPa |
35 MPa |
35 MPa |
Intensity of sound |
>20 W/cm² |
>30 W/cm² |
>40 W/cm² |
>60 W/cm² |
Max Capacity |
> 10 L/Min |
> 15 L/Min |
> 20 L/Min |
> 30 L/Min |

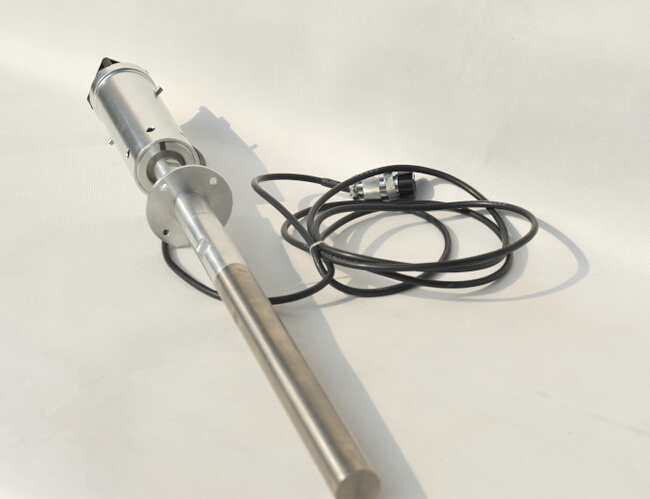

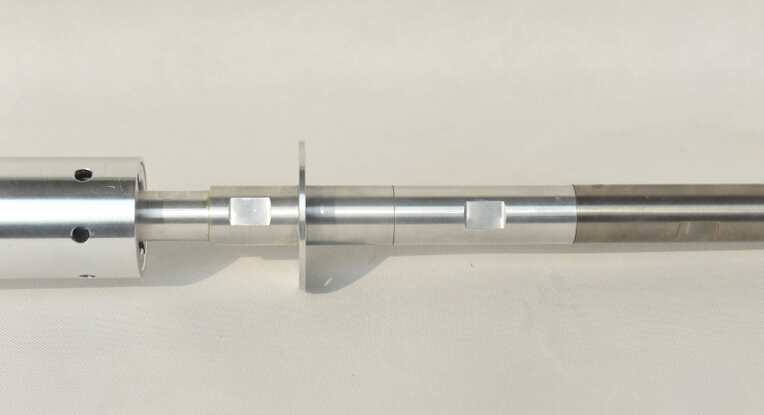

Material Of Tip Head |
Titanium Alloy |
Titanium Alloy |
Titanium Alloy |
Titanium Alloy |
PS:If you need more power, we can install two or more device.
Competitive Advantage:
★ Without changing the customer production equipment and the existing process

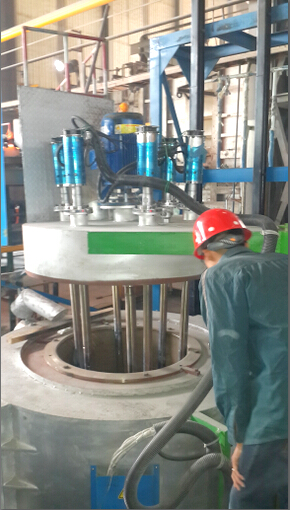

★ Simple installation, the standard flange butt joint installation
★ Micro molecular interaction, direct, obvious effect
★ High power, high yield
★ Reduce cost, energy consumption
