Home Ultrasonic Transducer

Ultrasonic Welding Transducer

Ultrasonic Transducer for Replacement Rinco 20kHz Attached High Voltage BNC

Ultrasonic Transducer for Replacement Rinco 20kHz Attached High Voltage BNC

Today ultrasonic welding is used in every industry that processes plastics. Most common uses are in the Automotive, Medical, Textile, Food, Plastics, and Packaging industries. Conforming to the spirit of "Service First", ALTRASONIC provides lifetime maintenance to its products for as long as they are used by customers.

  • Item No.:

    HS-R20
  • Payment:

    T/T, Paypal, Western Union
  • Product origin:

    China
  • Color:

    Silver
  • Shipping port:

    Shanghai or Ningbo
  • Product Details

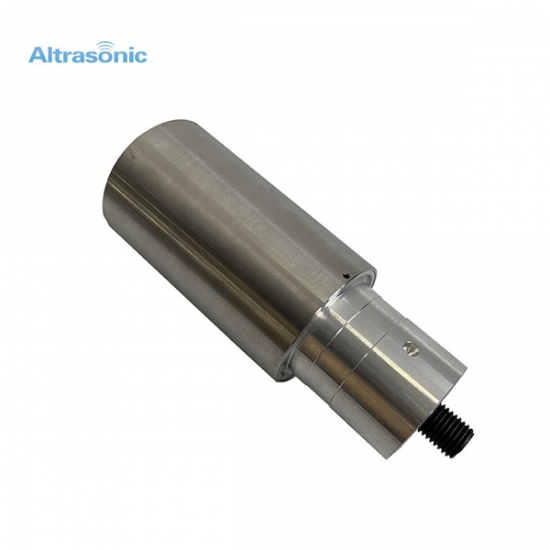

Ultrasonic Transducer for Replacement Rinco 20kHz Attached High Voltage BNC





Specification:



Model HSR-20
Frequency 20 khz
Output power 1500 watt
Joint bolt M16*2
Ceramic disc Diameter 50 mm
Quantity of Ceramic discs 2 pcs
Capacitance 5000 pf
Amplitude 12 um
Application welding machine



Description:


The Replacement Converter for Rinco 20khz machine Direct replacement for the Rinco 20khz machine that delivers lower cost, high quality and superior values, applied to Rinco type ultrasonic welding machine.



Applied Range:



Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,
which can be widely used to do welding in various kinds of industries.
Applied Industries : automobile industry, electric industry, medical industry, household appliance industry, non woven fabric clothing,
packing, office supplies, toys, etc.

Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.





Main Advantage:



1. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

2. Titanium, aluminum, steel materials of horn optional.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.



What we can do for you

1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.

3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.
