Untrasonic Homogenizer

Ultrasonic Sonochemistry Equipment for Oil Gas and Renewable Fuels

Ultrasonic Sonochemistry Equipment for Oil Gas and Renewable Fuels

The ultrasonic spot welding system is a very efficient and environmentally friendly mask ear band welding machine. The user can adjust the welding time according to the thickness of the welding mask. And the operation is very simple.

  • Item No.:

    HSS20-3000-I
  • Payment:

    T/T, Paypal, Western Union
  • Product origin:

    China
  • Color:

    Silver
  • Shipping port:

    Shanghai or Ningbo
  • Lead Time:

    15
  • Product Details

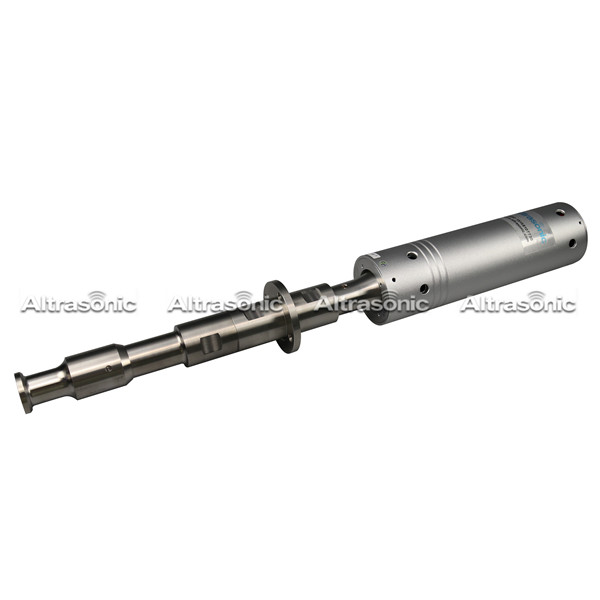

Ultrasonic Sonochemistry Equipment for Oil Gas and Renewable Fuels




Specification:



Model

HSS20-500-L

HSS20-1000-I

HSS20-1500-I

HSS20-2000-I

HSS20-3000-I

Frequency

20±1 kHz

20±1 kHz

20±1 kHz

20±1 kHz

20±1 kHz

Power

500 W

1000 W

1500 W

2000 W

3000 W

Voltage

220±10% V

220±10% V

220±10% V

220±10% V

220±10% V

Temperature

150 ℃

150 ℃

300 ℃

300 ℃

300 ℃

Pressure

Normal

Normal

35 MPa

35 MPa

35 MPa

Intensity of sound

10 W/cm²

10 W/cm²

30 W/cm²

40 W/cm²

60 W/cm²

Max Capacity

> 100M L/Min

> 5 L/Min

> 15 L/Min

> 20 L/Min

> 30 L/Min

Material Of Tip Head

Titanium Alloy

Titanium Alloy

Titanium Alloy

Titanium Alloy

Titanium Alloy





Description:



The goal of homogenization is not only to break apart, but to mix, particles. And in this sense, ultrasonic homogenizers hold an advantage, as their stimulation of cavitation so effectively disrupts molecular bonds that the total particle surface area is greatly increased. This is because breaking apart particles creates more particles with more surfaces. And when there is a greater total surface area and a tighter distribution of particles, there is improved opportunity for particle agglomeration and overall improved stability.



Advantage:


1. Ultrasound probe is imported titanium alloy material, durable
2. Energy-efficient transducer to ensure a strong effect
3. Amplitude automatic adjustment, the load situation of the different amplitude consistent
4. Working hours, ultrasound can set the interval
5. Microcomputer control, ultrasonic power continuously adjustable
6. Integrated sample temperature control to prevent overheating
7. Speakers are separated by a special sound insulation, sound insulation



Application:


1. Biodiesel from Vegetable Oil and Animal Fat

Biodiesel is a renewable fuel – an alternative to diesel fuel made from petroleum. Biodiesel is made by transesterification from sources, such as vegetable oil, algae oil, animal fats or grease. The manufacturing of biodiesel involves the catalytic reaction with alcohol. Ultrasonic mixing of the oil, fat or grease with the alcohol improves the reaction speed and yield significantly. This reduces investment and operational costs.



2. Bioethanol from Starch and Sugar

Bioethanol is used as a green alternative to gasoline. It is made from corn, wheat, potatoes, sugar cane, rice and other grains by fermentation. Yeast is used to ferment the starch and sugars found in these crops to ethanol. Ultrasonic disintegration of cellular structures and extraction of intracellular material reduces the particle size and exposes a much larger surface area to enzymes during liquefaction. This improves the bioavailability of starch and sugar and results in faster and more complete fermentation leading to more ethanol.



3. Biogas from Waste and Sludge

The processing of organic waste, sewage sludge, muck and manure in aerobic or anaerobic digesters converts the organic material into biogas. Ultrasonic disintegration of the organic material prior to digestion alters the material structure, and releases and activates enzymes. This improves the digestion of the organic material leading to faster processing, more gas and less residual sludge. This in turn increases the capacity of existing digesters and reduces disposal costs.


Workshop:



CE:



Packing&Shipping:


Shipping Port:Shanghai

Shipping Term:By express,by air,by ocean and so on.

Leading Time:Quick production leading time and fast delivery.Usually 1-3days if we have in stock.




Payment:
