Ultrasonic Seamless Sewing Machine with Low Noise 35kHz

  • China
  • Altrasonic
  • HS-W35
  • Shanghai or Ningbo
  • Silver
  • 1
  • 20
  • T/T, Paypal, Western Union
  • $7800/set

  • Contact Now
Product Details

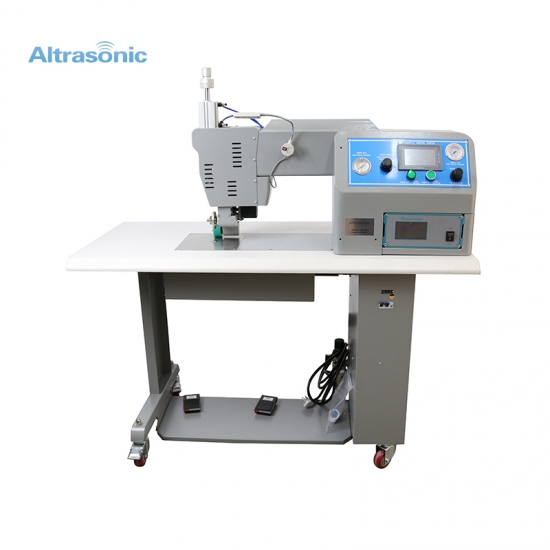

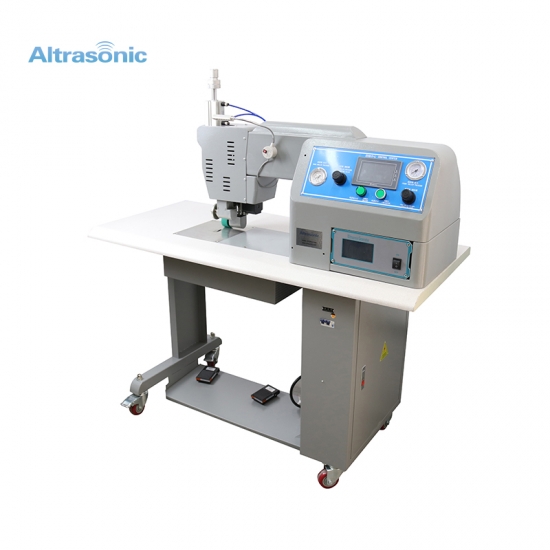

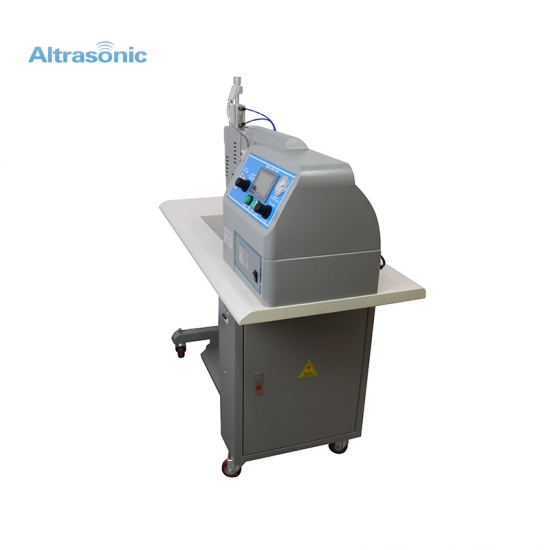

Ultrasonic Seamless Sewing Machine with Low Noise 35kHz



Description:


Ultrasonic welding is the transmission of high-frequency vibration to the fabric. When a synthetic or non-woven material passes through an ultrasonic welding head, vibration will be generated on the fiber and heat will be quickly generated. This heat will cause the synthetic fibers of the material to melt and solidify, resulting in seams that will not wear or tear.



Specification:


Frequency : 35kHz

Power : 800watt

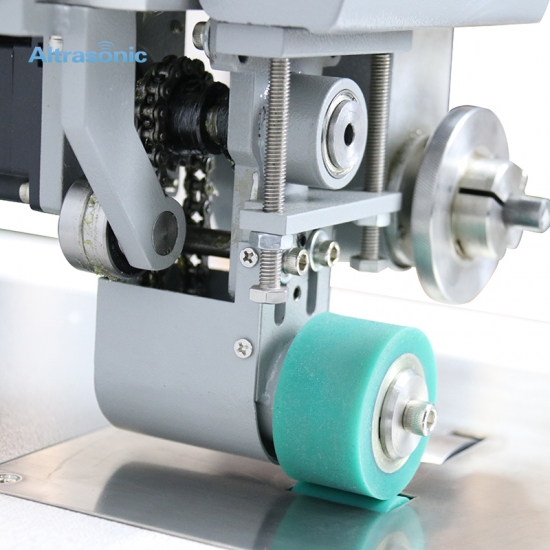

Rotary Welding Horns Width : 12mm

The horn's surface hardness : More than HRC60

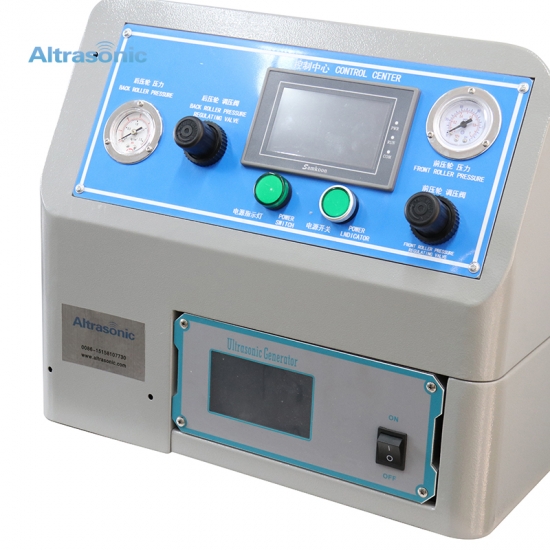

Real-time Display : Working frequency and working current

Synchronizing wheel specifications : 46XL Trapezoidal Tooth , Width 16mm

Synchronizing Belt Matched : Length 730mm / Width 12mm

Allowable Rotation Speed : 100r/min

Power Supply : Analog and Digital Generator for selection




Principle:


The working principle is the use of high-frequency oscillation of the welding head, so that the working material molecules generate frictional moments to reach the plastic melting point, thereby completing the rapid dissolution of solid materials and completing welding. The joint strength is close to one piece of material, so as long as the mating surface of the product is designed to match, there is no problem with complete sealing.



Advantages:


1. No lines, glue and other consumables can quickly stitch, stitch and cut synthetic fibers.

2. Fast and effective, 4 times faster than the traditional sewing machine, 10 times the bonding method.

3. Fundamentally reduce the wear of seams and stitches.

4. More effective than the sewing machine, hot melt and bonding equipment.




Workshop:



CE:



Packing&Shipping:


Shipping Port:Shanghai

Shipping Term:By express,by air,by ocean and so on.

Leading Time:Quick production leading time and fast delivery.Usually 1-3days if we have in stock.




Payment:
