The core of the ultrasonic transducer is the piezoelectric ceramic sheet. As is true in many other applications for piezo-electric materials, an assembly of multiple ceramic elements offers considerable performance and production advantages in ultrasonic transducer, relative to a single ceramic element.
Item No.:
HS-3035-4ZPayment:
T/T, Paypal, Western UnionProduct origin:
ChinaColor:
Silver and BlackShipping port:
Shanghai or Ningbo

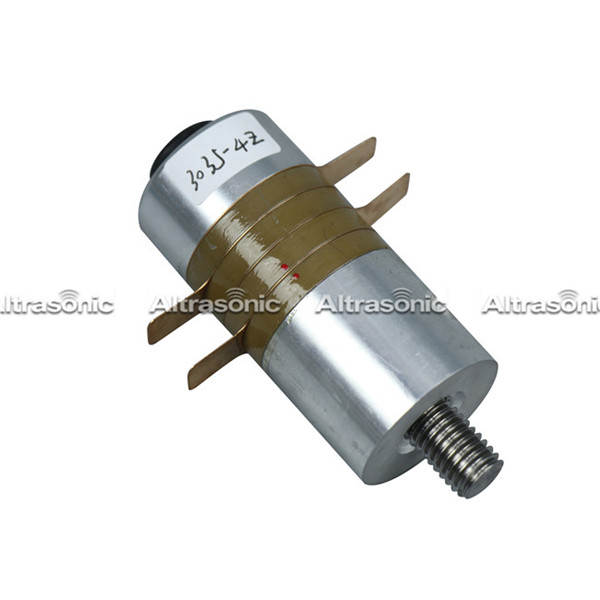

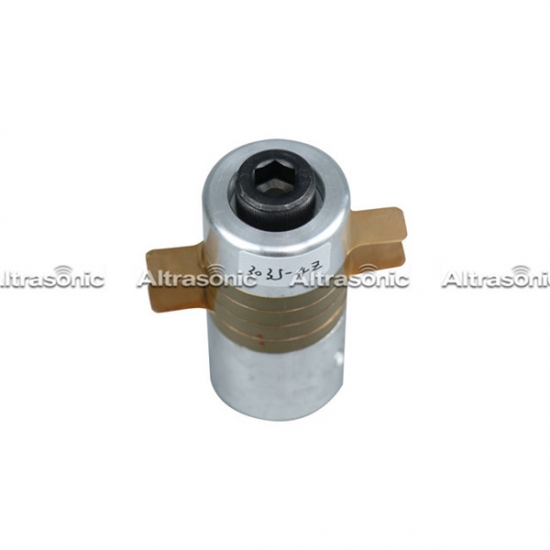

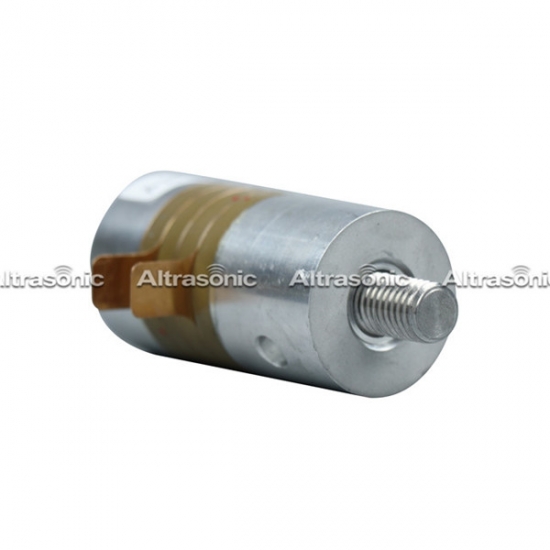

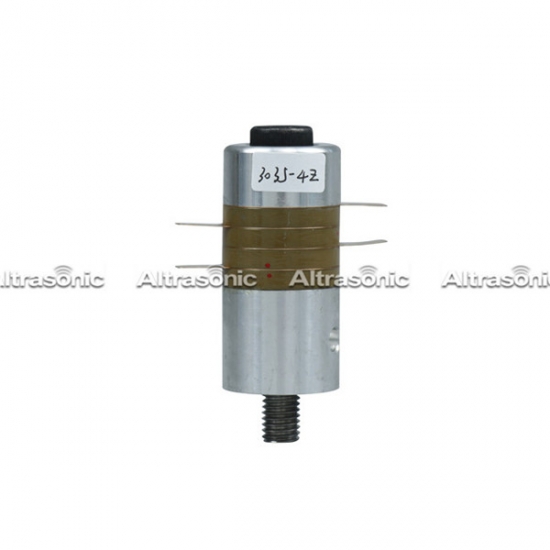

Ultrasonic Power Transducer 800w 35kHz Ultrasonic Converter
Specification:
Item No.
HS-3035-4Z
Frequency
35kHz
Power
800Watt
Ceramic Diameter
30mm
Qty of Ceramic
4pcs
Capacitance
5-6.2nF
Connect Screw
M10*1
Description:
The high mechanical quality of Altrasonic's piezo transducers ensures that these sandwich-type ultrasonic transducers offer high electro-acoustical efficiency and low heat generation. The mechanical connection of the piezoelectric elements assures a large amplitude output. Altrasonic's standard ultrasonic transducers are available in four frequencies: 15 kHz, 20 kHz, 30 kHz, 35 kHz, 60 kHz and 70 kHz. Altrasonic offers many types power transducer that can be used in a variety of applications, including as a fabric welding, cutting, nebulizer, atomizer, for ultrasonic mixing, or for cell disruption.
Advantage:
1. High efficiency
2. Large amplitude
3. Low heat
4. Stable output unaffected by variations in load
5. Competitive pricing
6. Fast delivery
Workshop:
CE:
Shipping:
Payment:
Previous :
Heat Resistant 4pcs Piezoelectric Ceramic PZT 35kHz Ultrasonic Welding TransducerNext :
35K Ultrasonic Transducer with 4 pcs Imported Ceramics of Titanium MaterialIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
