Ultrasonic Plastic Assembly for 35kHz 1000W Spot Welding Equipment

Ultrasonic Plastic Assembly for 35kHz 1000W Spot Welding Equipment


Today ultrasonic welding is used in every industry that processes plastics. Most common uses are in the Automotive, Medical, Textile, Food, Plastics, and Packaging industries.Conforming to the spirit of "Service First", ALTRASONIC provides lifetime maintenance to its products for as long as they are used by customers.

  • Item No.:

    HSW35
  • Product origin:

    China
  • Product Details


Ultrasonic Plastic Assembly for 35kHz 1000W Spot Welding Equipment






Description:

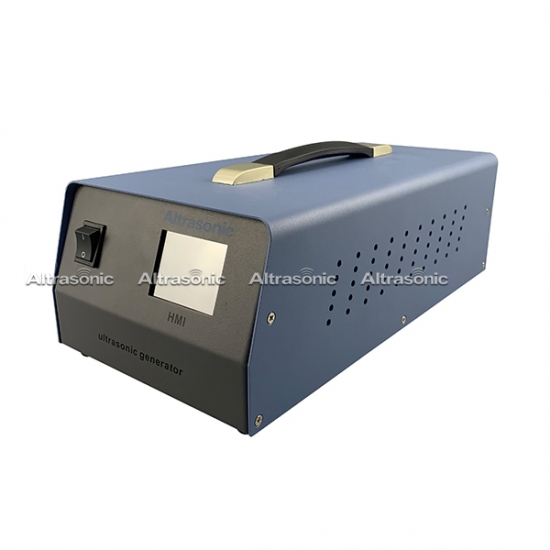

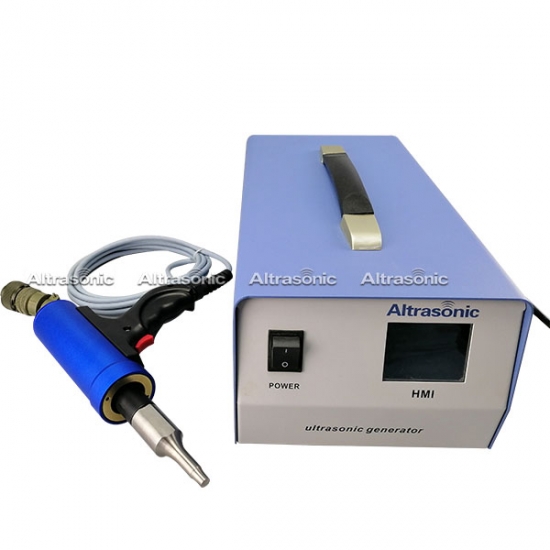

Ultrasonic spot welding system is ALTRASONIC latest introduction, the power requirements of 1000watts the application. The ultrasonic spoter can be used with its suitable handheld device or directly connected to the converter / supercharger / speaker stack for automation.

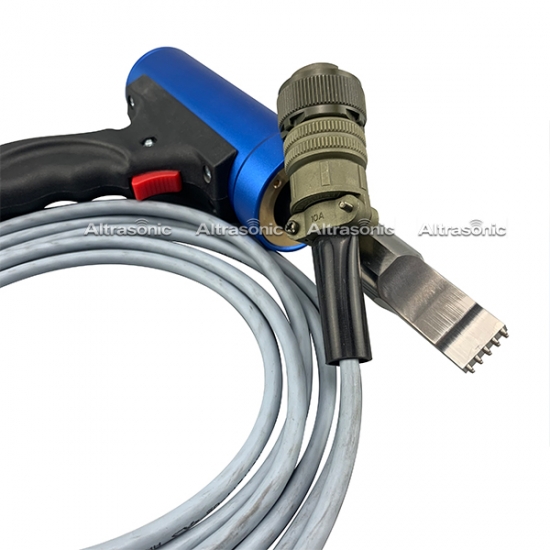

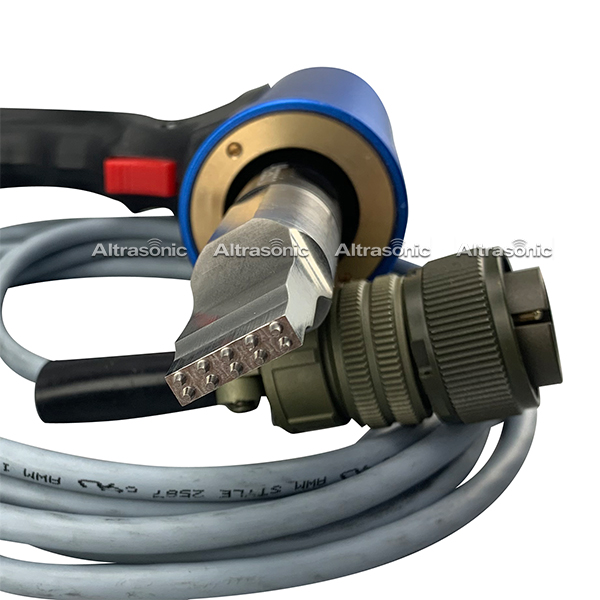

Ergonomics-based ultrasonic spot welders are based on hand-held welders. It is mainly used for ignition riveting, thermoplastic welding and forming. With a modular integrated circuit, the output power, easy to operate. Built-in fully automatic protection circuit to ensure safe and reliable applications, stable and reliable operation.



Application :


• Thermoplastics

• Non-crystalline plastic

• Semi-crystalline plastic

• Non-woven fabric

• Thermoplastic fabrics

• Polymeric materials

• Coated paper

• Mixed fabrics



Specifications:



 Item No.  HSW20  HSW30  HSW35  HSW40  HSW60
 Frequency  20kHz  30kHz  35kHz  40kHz  60kHz
 Max power  1000W  1200W  1000W  500W  500W
 Horn  ≤12mm  ≤10mm  ≤10mm  ≤10mm  ≤10mm
 Housing diameter  44mm  44mm  44mm  44mm  44mm
 Weight of welder  1.0kg  1.0kg  1.0kg  1.0kg

 1.0kg





Advantage:



1. Ultrasonic welding can be applied to a diversity of combination of the material welding, It can not applied for semiconductor materials such as high temperature caused by the pollution and the operation, It is easy to weld the heat conductivity and high conductivity materials like gold, silver, copper, aluminum, etc .

2. The consumption power is small , only for the resistance spot welding 5% left and right sides, weld deformation less than 3-5%, solder joint strength and strength the stability by an average of about 15-20%, on the surface of cleanliness requirements is not high.

3. Ultrasonic welding process is widely used in the microelectronics devices and finishing technology, the most successful application is the integrated circuit element of interconnection and it is used in the electronic aerospace electrical packaging plastic industries .

4. Ultrasonic welding process successfully joins many dissimilar-materials combinations, It welds without filler metals or gases, It is fast and easily automated, Because ultrasonic welding does not require the connective bolts or soldering materials to bind two pieces together, it saves on the manufacturing & production costs.

5. Ultrasonic welding process is ideal because it creates the reliable bonds without introducing any impurities or thermal distortion to the components being joined, The ultrasonic weld dries rapidly because there are no adhesives or solvents to dry and there is no need for the materials to cure.

6. Ultrasonic Welding process offers the clean exteriors of welded parts, The potential manpower savings, The absence of drying time in the jig , the gas tight and it has completely stable, possibility of welding in the presence of the foreign bodies such as the powders and the liquids that are incompatible using any other conventional assembly processes.





Workshop:




CE Certification:





Packing&Shipping:

Shipping Port:Shanghai

Shipping Term:By express,by air,by ocean and so on.

Leading Time:Quick production leading time and fast delivery.Usually 1-3days if we have in stock.







Payment:



Warranty:

One year Warranty with none human damage.In this period factory will responsible for repair fix it for free or factory will send the new parts to customer instead of the broken parts for free.After warranty time,factory will repair fix it or send the new parts on cost price



Quality control:


 3 times old test to confirm the products is well quality.

20 technician work together , and learn together , to improve our products.

48 hours working time to test the stability of our product before sending out.
