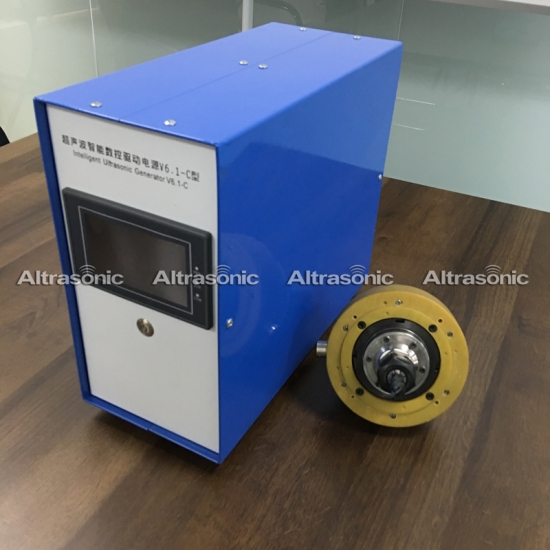

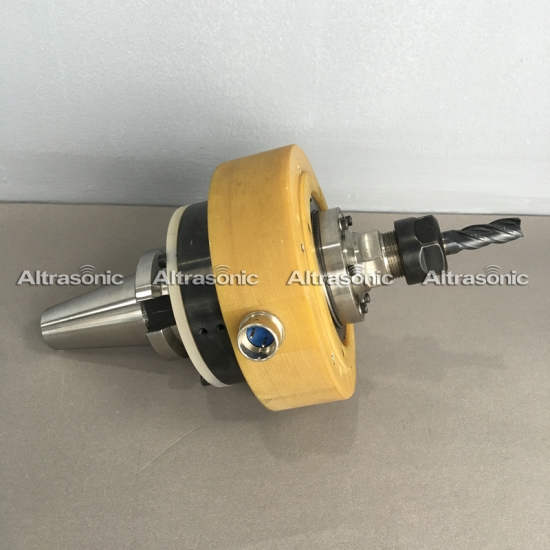

Ultrasonic Micro Machining Ceramic Drilling With BT40 Connection

Ultrasonic Micro Machining Ceramic Drilling With BT40 Connection

Ultrasonic Micro Machining Ceramic Drilling With BT40 Connection

  • Product origin:

    China
  • Product Details



Ultrasonic drilling



The Ultrasonic drilling machine is a drilling device that uses vibrations in order to hammer its bit through materials, as opposed to traditional drilling methods. The drill uses a piezoelectric actuator as its source of power, and utilizes a variety of 'horns' to vibrate, or hammer, its bit through the material. It was originally designed to be able to drill through very rigid rock surfaces that would otherwise be damaged by a rotary drill, but has also shown potential usefulness to the field of medicine. It is the specific characteristics of the drill that make it ideal or practical for certain situations.



In ultrasonic machining, the tool oscillates through such a small amplitude (10 microns or less) that the cutting edge remains in the material, and the force and engagement remain relatively constant. Thus, rather than compromising tool life, tool life is enhanced.



In titanium alloy, the class of metal in which the technology has delivered the most benefit, that choice has been shown to come down to a 200 to 400 percent increase in tool life or a 200 to 300 percent increase in metal removal rate



Applications

1. Various kinds of materials especially fragile rigid material.

2. Processing plane, groove, all kinds of form surface (such as spline, gear and thread) and special surface of mould.

3. Application area: machining industry, machine tool equipment manufacturing.

4. Application occasion: manufacturing enterprise, universities and colleges, scientific research institution, mechanical equipment transformation industry.



Technical Parameters:



Product shape: HSK63 milling machine handle

Working frequency: 15-21KHz;

Resonance point amplitude: 10um or more;

Speed: 3000 r / min or less

Matching tool: carbide end mill head Φ2-Φ13; disk cutter Φ50;

Power: 500W



Competitive Advantages:

· Virtually any hard material can be machined

· Little heat is produced

· Since the motion of the tool is up-and-down vibration rather than rotation as in traditional machining, the holes cut are not limited to circular shapes but can be any shape. Custom "cookie cutter" tools can cut complicated shapes.

· Good surface finish and higher structural integrity is obtained

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

related products
Ultrasonic Processing
Drilling 0.5-12mm Ultrasonic Assist Machining with BT30 Ultrasonic Spindle used in CNC Processing Center

The tool oscillates at a frequency of approximately 20 kHz by a piezoelectric sensor and an electric oscillator. The tool forces the abrasive grit to normally impact the work surface in the gap between the tool and the workpiece to machine the work surface.

ultrasonic machining equipment
20kHz Ultrasonic Assisted Drilling Machining For CNC Machines

The application of ultrasonic technology in machining can be divided into two categories according to the characteristics of its processing technology. One is to use ultrasonic abrasive treatment with abrasives, such as ultrasonic hole processing, ultrasonic grinding, ultrasonic polishing, ultrasonic deburring and the like. The other is ultrasonic machining combined with cutting tools and other machining methods such as rotary ultrasonic drilling, grinding and milling. Ultrasonic electrochemistry, ultrasonic vibration cutting,

Ultrasonic Spindle
Ultrasonic drilling

The principle is very simple. An ultrasonic horn is used to vibrate a drillbit vertically. The drillbit can consist of nothing more than a piece of wire - I used standard household pins, which are steel and are around 0.7mm diameter. In the presence of an abrasive slurry, the pounding action of the drillbit tip causes the underlying material to chip away, gradually drilling a hole. It works best on brittle materials like glass and ceramics.

ultrasonic vibration machining
bone ultrasonic drilling machine

bone ultrasonic drilling machine

Ultrasonic Processing
Altrasonic Ultrasonic Drilling Machine High Speed Cutting Silicon machine

The tool oscillates at a frequency of approximately 20 kHz by a piezoelectric sensor and an electric oscillator. The tool forces the abrasive grit to normally impact the work surface in the gap between the tool and the workpiece to machine the work surface.

Ultrasonic Drilling
Ultrasonic Turning, Drilling Ultrasonic Drawing Die Procession

Our offered drilling machine is manufactured using premium quality components and modern technology in line with industry standards. Furthermore, this drilling machine is available in different technical specifications and sizes as per the requirements of the clients.

20khz 2000W Spindle Ultrasonic with HSK63 Connector for Drilling
20khz 2000W Spindle Ultrasonic with HSK63 Connector for Drilling

20khz 2000W Spindle Ultrasonic with HSK63 Connector for Drilling

20khz Ultrasonic Maching Device
20khz 2000W Spindle Ultrasonic Maching Device with HSK63 Connector for Drilling

Ultrasonic milling is a kind of new method of process technology, is the ultrasonic vibration by adding high frequency micro-amplitude in general milling process, to change the machinable property of material. Ultrasonic milling device is constituted by generator, oscillator and horn.
