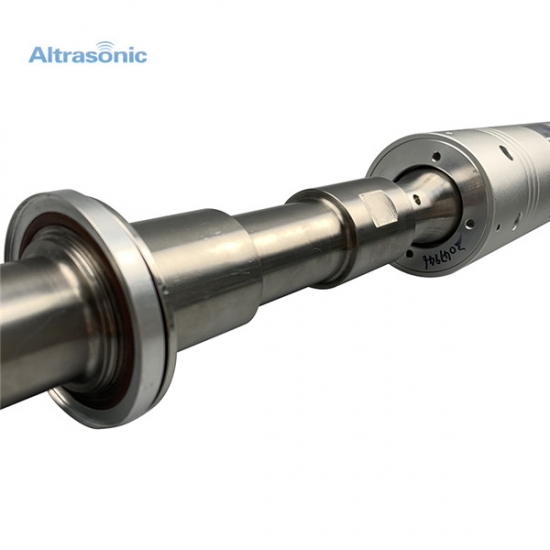

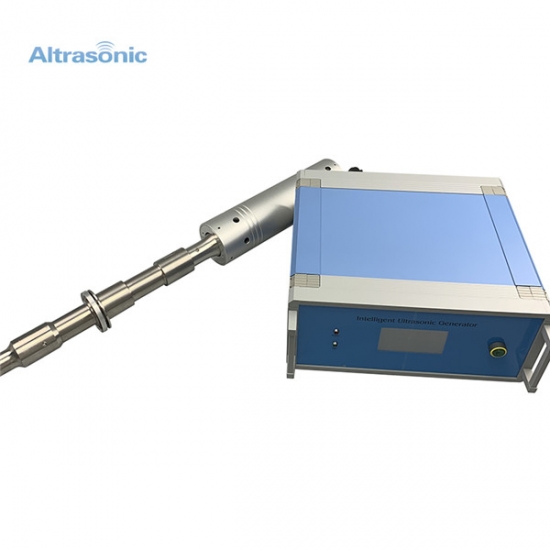

Ultrasonic Disintegration of Cell Structures for Organic Matter




Description:


Ultrasonication is an effective means to break cell structures. This effect can be used for the extraction of intracellular materials, e.g. starch from the cell matrix.Ultrasonication generates alternating high-pressure and low-pressure waves in the exposed liquid. During the low-pressure cycle, the ultrasonic waves create small vacuum bubbles in the liquid that collapse violently during a high-pressure cycle. This phenomenon is termed cavitation. The implosion of the cavitation bubble causes strong hydrodynamic shear-forces.

The shear forces can disintegrate fibrous, cellulosic material into fine particles and break the walls of the cell structure. This releases more of the intra-cellular material, such as starch or sugar into the liquid. In addition to that the cell wall material is being broken into small debris.


Specification:


Model

HSS20-500-L

HSS20-1000-I

HSS20-1500-I

HSS20-2000-I

HSS20-3000-I

Frequency

20±1 kHz

20±1 kHz

20±1 kHz

20±1 kHz

20±1 kHz

Power

500 W

1000 W

1500 W

2000 W

3000 W

Voltage

220±10% V

220±10% V

220±10% V

220±10% V

220±10% V

Temperature

150 ℃

150 ℃

300 ℃

300 ℃

300 ℃

Pressure

Normal

Normal

35 MPa

35 MPa

35 MPa

Intensity of sound

10 W/cm²

10 W/cm²

30 W/cm²

40 W/cm²

60 W/cm²

Max Capacity

> 100M L/Min

> 5 L/Min

> 15 L/Min

> 20 L/Min

> 30 L/Min

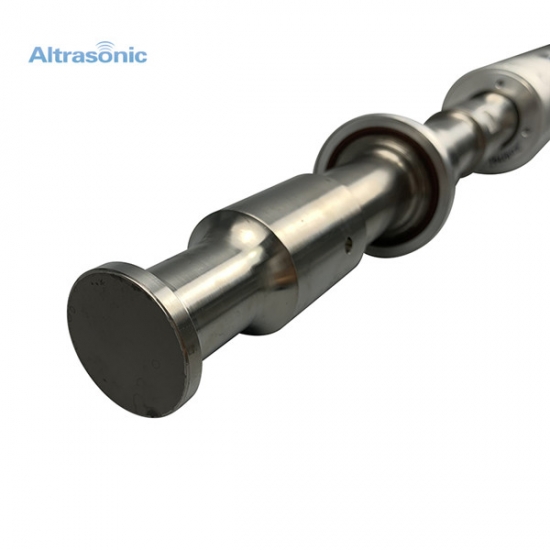

Material Of Tip Head

Titanium Alloy

Titanium Alloy

Titanium Alloy

Titanium Alloy

Titanium Alloy




Advantage:


1. Ultrasound probe is imported titanium alloy material, durable

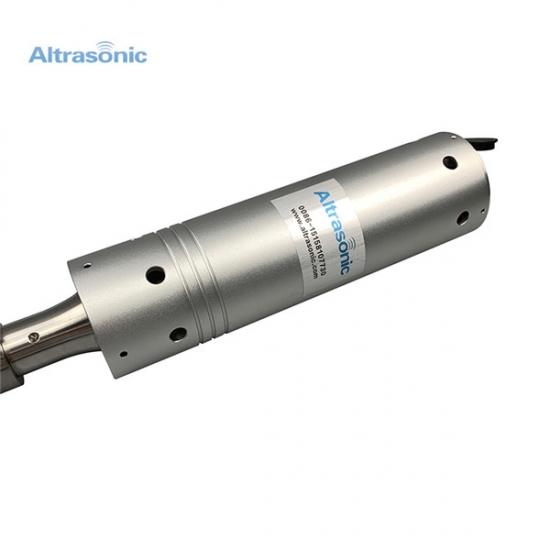

2. Energy-efficient transducer to ensure a strong effect

3. Amplitude automatic adjustment, the load situation of the different amplitude consistent

4. Working hours, ultrasound can set the interval

5. Microcomputer control, ultrasonic power continuously adjustable

6. Integrated sample temperature control to prevent overheating

7. Speakers are separated by a special sound insulation, sound insulation




Application:


Ultrasonication can be used for fermentation, digestion and other conversion processes of organic matter. After milling and grinding, ultrasonication makes more of the intra-cellular material e.g. starch as well as the cell wall debris available to the enzymes that convert starch into sugars. It does also increase the surface area exposed to the enzymes during liquefaction or saccharification. This does typically increase the speed and yield of yeast fermentation and other conversion processes, e.g. to boost the ethanol production from biomass.
