Home Ultrasonic Welder Repair Dukane

Dukane Type Converter

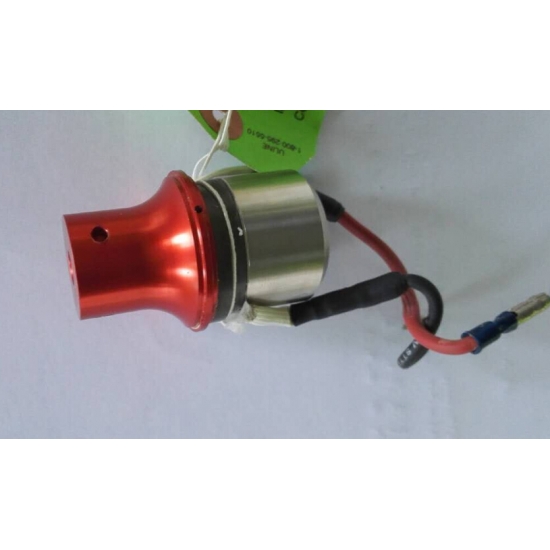

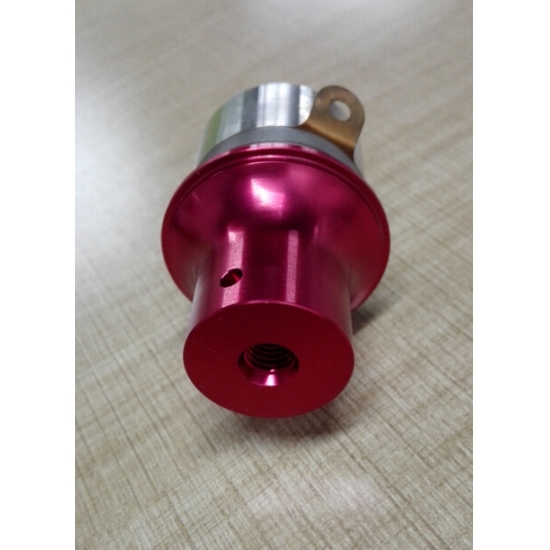

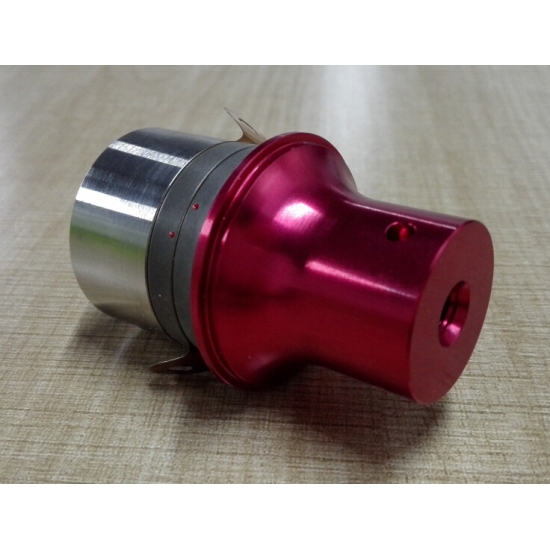

Replacement Ultrasonic Converter 40 Khz with cable connecting

Replacement Ultrasonic Converter 40 Khz with cable connecting

The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks.

  • Item No.:

    HS-D40
  • Payment:

    T/T, Paypal, Western Union
  • Price:

    $788/PC
  • Product origin:

    China
  • Color:

    Silver
  • Shipping port:

    Shanghai or Ningbo
  • Lead Time:

    5
  • Product Details


Replacement Ultrasonic Converter 40 Khz with cable connecting



Specifications:


 Item No.:  HS-D40
 Frequency:  40kHz
 Power:   800Watt
 Connect Screw:  M8*1.25
 Ceramic Diameter:  35mm
 Qty of Ceramic:  2PCS
 Resistance:  5Ω
 Color of Ceramic:  Grey
 Capacitance:  3000nF
 Weight:  1.8kgs
 Package:  Carton
 Application:  Welding, Cutting and Sonochemistry


Description:


The converter is a device for converting electrical, mechanical or acoustic energy from one form of energy to another.Ultrasonic welding transducer is a kind of high power acoustic transducer.It requires instantaneous power, high technology and high quality materials.




Advantages:


  • High Efficiency: of high mechanical factor. High transfer efficiency is obtained when working in resonance frequency.
  • Big amplitude: designed and chosen by computer, high oscillation speed and big amplitude in front operculum.
  • Big Power: under the function of the prestressed force screw rod, the piezoelectric ceramics can work freely in the highest level of power.
  • In good heat resistance: of small resonance impedance, less heat produced, can be used in a wide range of temperature with long life and high reliability.
