Parts for Ultrasonic Welding System of Ultrasonic Converter with 20kHz 2000Watt

  • China
  • Altrasonic
  • HS-5020-4Z
  • Shanghai or Ningbo
  • Bule Silver and Black
  • 1
  • 7
  • T/T, Paypal, Western Union

  • Contact Now
Product Details

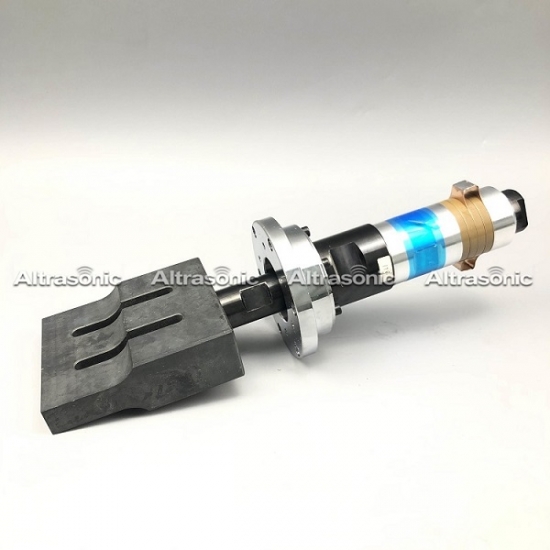

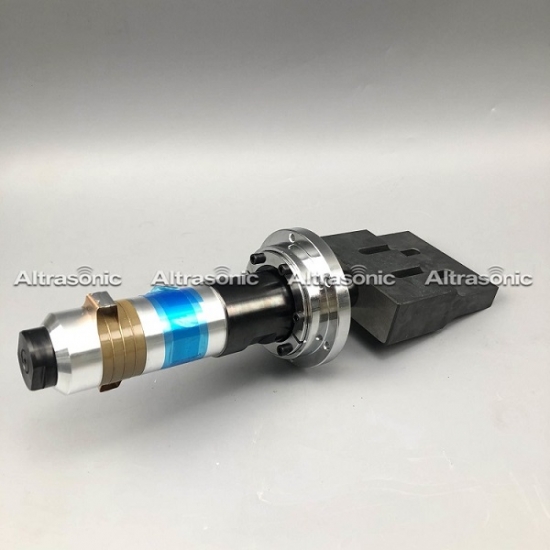

Parts for Ultrasonic Welding System of Ultrasonic Converter with 20kHz 2000Watt




The transducer converters high-frequency electrical energy into high-frequency mechanical vibrations.And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks.Between each disc is a thin metal plate , which forms the electrode.When a sinusoidal electrical signal is fed to the transducer via the electrodes , the discs expand and contract , producing axial vibrations.

Main Features:

1. High mechanical quality

2. Piezoelectric element offer a high speed of vibration.

3. Having steady output amplitude even the load markedly changed.

4. Extended using temperature , ensuring good amplitude linearity.

5. Bolt-on mounting gives the fast , easy installation and high reliability.


Item No.: HS-5020-4Z

Frequency: 20kHz

Power: 2000Watt

Booster: Steel

Diameter of Ceramic: 50mm

Quantity of Ceramic: 4pcs

Connect Screw: M18 X 1.5


Non-woven mask

Disposable medical mask

Surgical mask



What we can do for you:


1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.

2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.

3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.




Shipping Port:Shanghai

Shipping Term:By express,by air,by ocean and so on.

Leading Time:Quick production leading time and fast delivery.Usually 1-3days if we have in stock.


Previous15kHz Ultrasonic Welding Converter used in N95 Mask Ultrasonic Welding System

Next6015-4Z Ultrasonic High Power NTK Transducer For Welding

Please feel free to contact us.
