New design 35khz Ultrasonic converter replacement Rinco , Herrman , Sonotronic , AP Sonic machine

New design 35khz Ultrasonic converter replacement Rinco , Herrman , Sonotronic , AP Sonic machine

The 35KHZ ULTRASONIC CONVERTER is applied to many brand ultrasonic machine, such as Sonotronic, Hermann, Weber, AP Sonic machine.

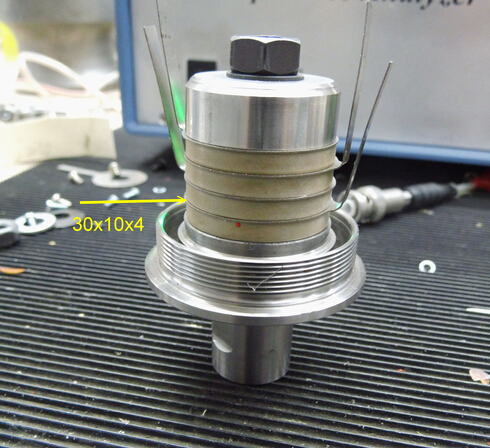

The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.

Item No.:
HS-35-NEW
Payment:
TT 100% IN ADVANCE
Product origin:
China
Shipping port:
Shanghai / Ningbo

Product Details

New design 35khz Ultrasonic converter replacement Rinco , Herrman , Sonotronic , AP Sonic machine

Minimum Order Quantity:	2pcs
Price:	negotiation
Payment Terms:	T/T
Supply Ability:	200pcs per month
Delivery Time:	10 working days after received your payment
Packaging Details:	Packed in carton, and PE form inside

Specifications:

Model	HS-35-New
Frequency	35khz
Output power	600-1200watt

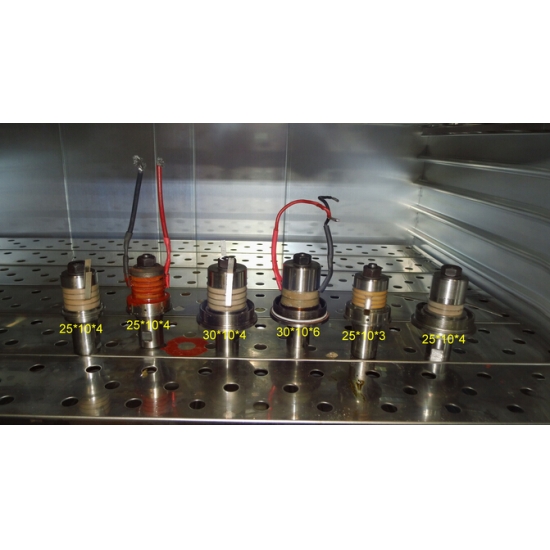

Ceramic disc Diameter	25mm or 30mm
Quantity of Ceramic discs	4 pcs or 2 pcs
Material	Aluminum or Titanium optional
Amplitude	10um
Application	Welding

Advantages:

High Efficiency: of high mechanical factor. High transfer efficiency is obtained when working in resonance frequency.
Big amplitude: designed and chosen by computer, high oscillation speed and big amplitude in front operculum.
Big Power: under the function of the prestressed force screw rod, the piezoelectric ceramics can work freely in the highest level of power.
In good heat resistance: of small resonance impedance, less heat produced, can be used in a wide range of temperature with long life and high reliability.

Applications:

Our transducer can applied in the following ultrasonic machines:

Ultrasonic welding machine

All material with thermoplasticity can use Ultrasonic welding machine ,

it can welding the material more easy and stable.Such like plastic, fabric,

ABS, nonwovens.

Ultrasonic cutting machine

Ultrasonic food cutting is popular because the perfect edge.

Ultrasonic cutting in packing area also welcomed, it can cutting

and sealing at the same.

Ultrasonic sewing machine

Ultrasonic sewing can sewing the material without any cotton, and keep

longer time.

Service: Timely feedback; Free design; 1 year Warranty.

Quality: Full testing before shipping; we reputation from customer.

converter
