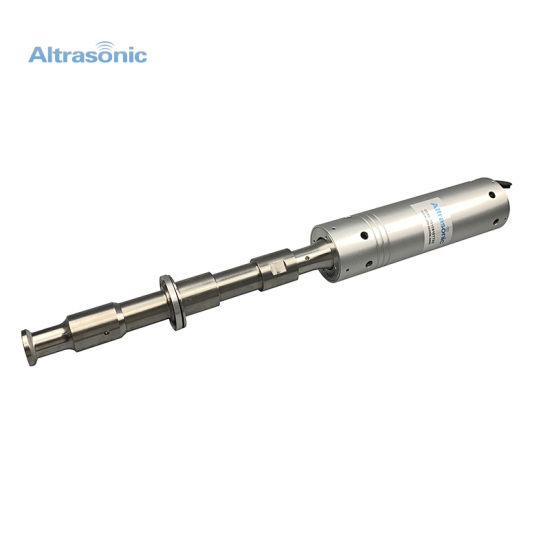

Milk with Standard Fitting Using in Pharmaceuticals Industry for Ultrasonic Processor Sonochemistry Equipment

Milk with Standard Fitting Using in Pharmaceuticals Industry for Ultrasonic Processor Sonochemistry Equipment

The application of ultrasonic processing not only can provide energy for reaction, but also can achieve better mixing and more rapid separation. It will  be good using for essential oil extraction handing the Crude Oil 12-16° API

  • Item No.:

    HSS20-3000-I
  • Payment:

    T/T, PayPal, WWestern Union
  • Product origin:

    China
  • Color:

    Silver and blue
  • Shipping port:

    Ningbo and Shanghai
  • Lead Time:

    30
  • Product Details


Milk with Standard Fitting Using in Pharmaceuticals Industry for Ultrasonic Processor Sonochemistry Equipment




Description:



The goal of homogenization is not only to break apart, but to mix, particles. And in this sense, ultrasonic homogenizers hold an advantage, as their stimulation of cavitation so effectively disrupts molecular bonds that the total particle surface area is greatly increased. This is because breaking apart particles creates more particles with more surfaces. And when there is a greater total surface area and a tighter distribution of particles, there is improved opportunity for particle agglomeration and overall improved stability.



Furthermore, ultrasonic homogenizers have fewer parts to maintain and to clean, and they can be customized according to specific amplitude and pressure ranges, making them great choices for scientists and manufacturers wanting complete control over the cavitation process.




Specification:



Model

HSS20-500-L

HSS20-1000-I

HSS20-1500-I

HSS20-2000-I

HSS20-3000-I

Frequency

20±1 kHz

20±1 kHz

20±1 kHz

20±1 kHz

20±1 kHz

Power

500 W

1000 W

1500 W

2000 W

3000 W

Voltage

220±10% V

220±10% V

220±10% V

220±10% V

220±10% V

Temperature

150 ℃

150 ℃

300 ℃

300 ℃

300 ℃

Pressure

Normal

Normal

35 MPa

35 MPa

35 MPa

Intensity of sound

10 W/cm²

10 W/cm²

30 W/cm²

40 W/cm²

60 W/cm²

Max Capacity

100M L/Min

5 L/Min

15 L/Min

20 L/Min

30 L/Min

Material Of Tip Head

Titanium Alloy

Titanium Alloy

Titanium Alloy

Titanium Alloy

Titanium Alloy




Application:



1. Breaking up of cells, bacteria, viruses, spores, fungi, or tissues

2. Extraction of ingredients

3. Homogenization of substances of all kinds

4. Production of the finest emulsions with minimal droplet size

5. Dissolution of hard-to-dissolve and extremely hard-to-dissolve substances in fluids

6. Manufacture of dispersions and suspensions

7. Catalysis and acceleration of chemical reactions




Characteristic:



1. Ultrasound probe is imported titanium alloy material, durable

2. Energy-efficient transducer to ensure a strong effect

3. Amplitude automatic adjustment, the load situation of the different amplitude consistent

4. Working hours, ultrasound can set the interval

5. Microcomputer control, ultrasonic power continuously adjustable

6. Integrated sample temperature control to prevent overheating

7. Speakers are separated by a special sound insulation, sound insulation
