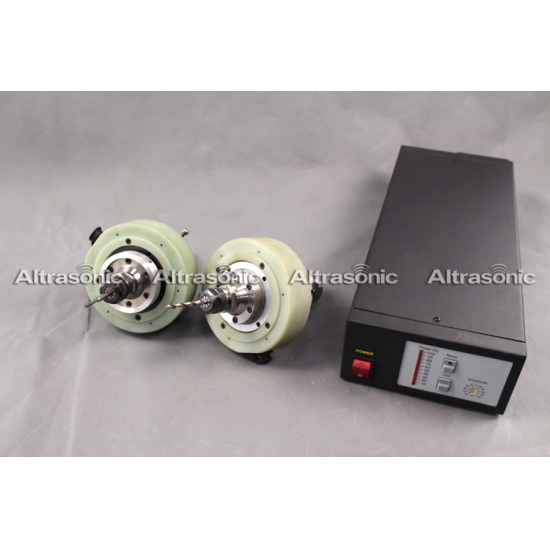

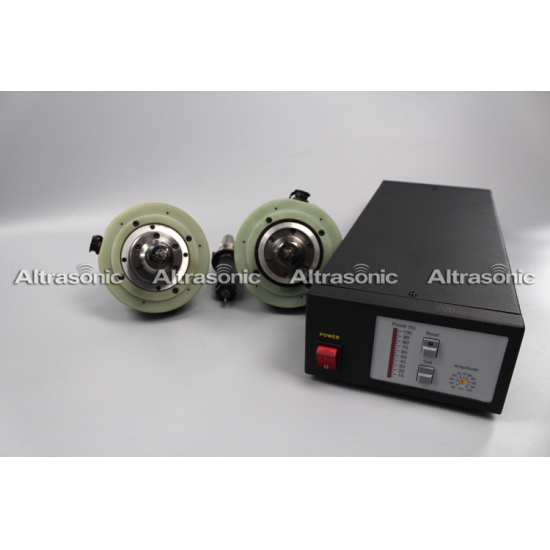

Latest Technology 20Khz Ultrasonic Ceramic Machining For Automation Multi axis CNC Machine
- China
- Altrasonic
- 1
- Contact Now
Ultrasonic drilling
Ultrasonic drilling is a non-traditional, loose abrasive machining process.
In this the mirror image of a shaped tool can be created in hard, brittle materials.
Material removal is achieved by the direct and indirect hammering of abrasive particles against a workpiece. The Ultrasonic waves are sound waves of frequency higher than 20,000 Hz.
Applications
1. Various kinds of materials especially fragile rigid material.
2. Processing plane, groove, all kinds of form surface (such as spline, gear and thread) and special surface of mould.
3. Application area: machining industry, machine tool equipment manufacturing.
4. Application occasion: manufacturing enterprise, universities and colleges, scientific research institution, mechanical equipment transformation industry.
Technical Parameters:
Product shape: HSK63 milling machine handle
Working frequency: 15-21KHz;
Resonance point amplitude: 10um or more;
Speed: 3000 r / min or less
Matching tool: carbide end mill head Φ2-Φ13; disk cutter Φ50;
Power: 500W
Competitive Advantages:
l Not only round but unsystematic machine can be done as the Ultrasonic drilling machining is longitudinally processed.
l High accuracy and fine finished are obtained depending upon the tool accuracy and grit size.
l Simple in operation even a beginner can operate the machine with ease.
l 4mm thickness can be drilled in 10-15 seconds on an average.
