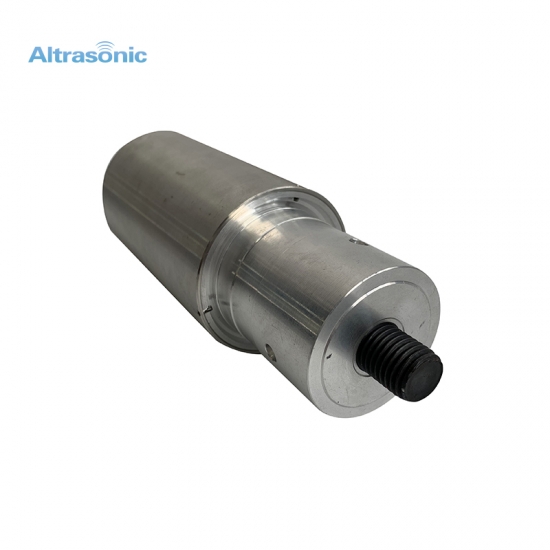

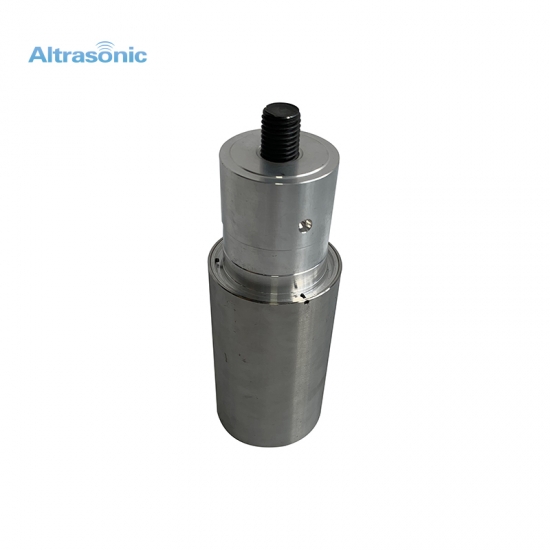

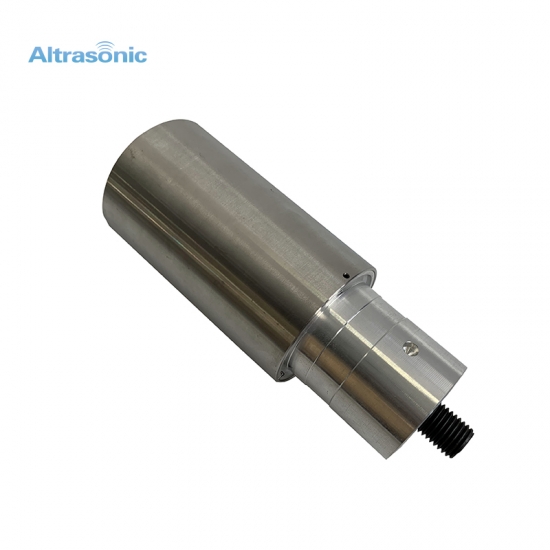

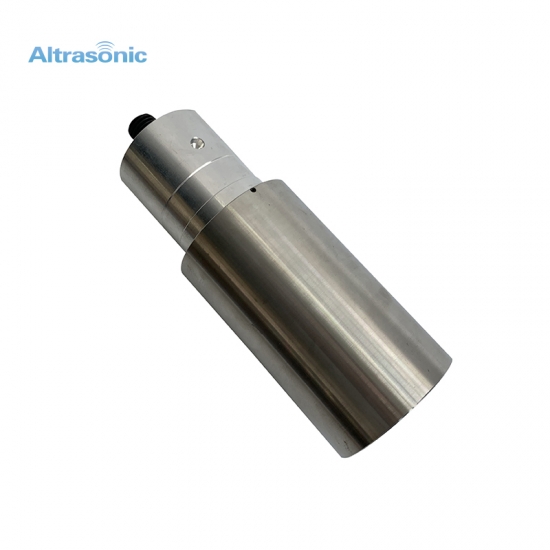

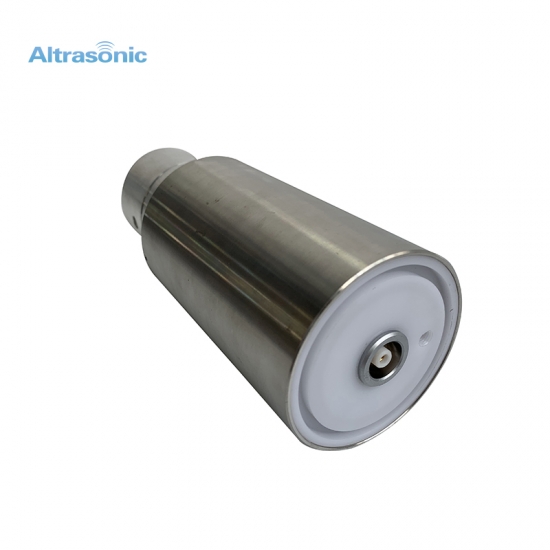

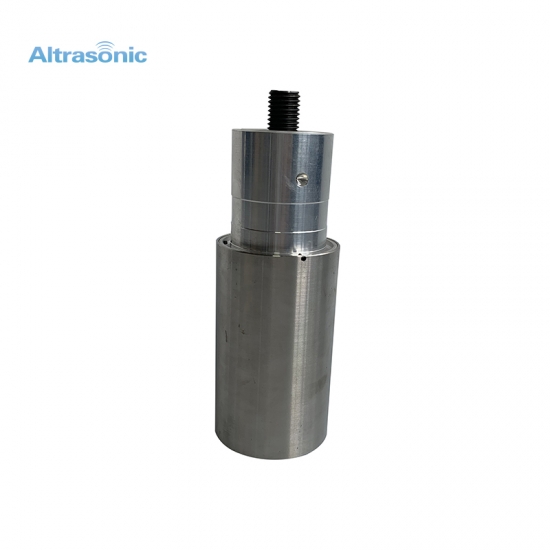

High Power Ultrasonic Transducer for Replacement Rinco 20kHz with Titanium Alloy Booster

High Power Ultrasonic Transducer for Replacement Rinco 20kHz with Titanium Alloy Booster

OEM Aluminum Replacement Rinco Transducer

  • Item No.:

    HS-R20
  • Payment:

    TT, West union, Paypal
  • Product origin:

    China
  • Color:

    Silver
  • Shipping port:

    Hangzhou or Shanghai
  • Lead Time:

    5
  • Product Details


High Power Ultrasonic Transducer for Replacement Rinco 20kHz with Titanium Alloy Booster





Specification:



Model

HS-R20

Frequency

20kHz

Output power

3000watt

Joint bolt

M16*2

Ceramic disc Diameter

50mm

Quantity of Ceramic discs

2pcs

Capacitance

5000pF

Resistance

50Ω

Application

welding machine





Description:


The Replacement Rinco 20kHz Direct replacement for the Branson 4TH that  delivers lower cost, rugged quality and superior value.
First, all of the parts are all new.
The parts are made from certified materials in tightly controlled manufacturing processes, assembled and tested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to ensure performance that duplicates the OEM part.


Warranty:


We offer the same warranty as the OEM, namely, three years one-time replacement.
Simply ship the broken unit back to arrive within three years of original shipment, and it will be replaced (one time).





Competitive Advantage:

1. Titanium materials and Aluminum materials optional.
2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
3. One by one testing to ensure that each transducer performance are excellent.
4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.
