High Power Auto/ Manual Ultrasonic Spot Welding System 35kHz Puncture Welder

Description:



Ultrasonic bonding is primarily used for thermoplastic joining. Compared with other plastic bonding techniques, ultrasonic plastic joining has the advantages of excellent welding quality, high production efficiency and wide application. The applications of ultrasonic welding are extensive and are found in many industries including electronic and electrical, automotive and aerospace, civil engineering, medical, and packaging.

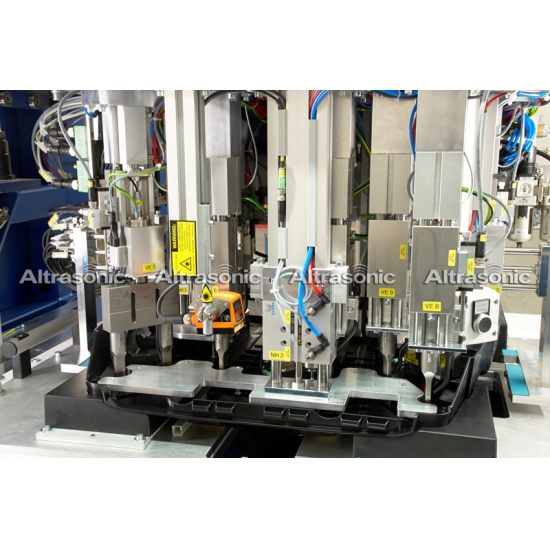

We can develop kinds of automatic ultrasonic welding production line to meet customers' requirements. Standard ultrasonic welding machine can be divided into table-type and cabinet-type. For cabinet-type, a delicate cabinet type work table in accordance with ergonomics is arranged on the basis of the table-type ultrasonic plastic welder to facilitate operation.



Specifiction:



Item No. HSW20 HSW30 HSW35 HSW40 HSW60
Frequency 20kHz 30kHz 35kHz 40kHz 60kHz
Power 1000W 1200W 1000W 500W 300W-500W

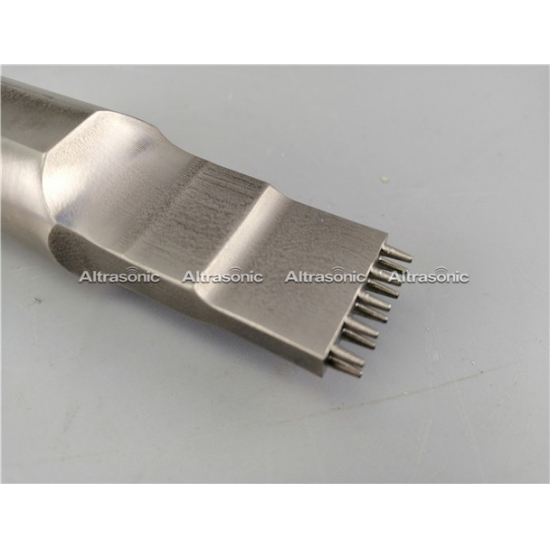

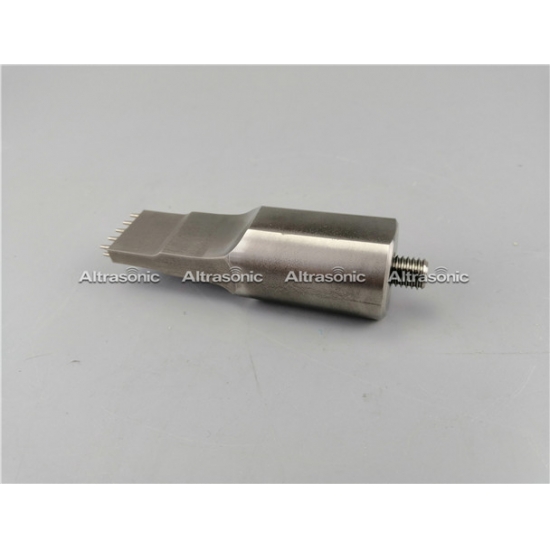

Horn ≤12mm ≤10mm ≤10mm ≤10mm ≤10mm
Housing Diameter 44mm 44mm 44mm 44mm 44mm
Weight of Welder 1.0kg 1.0kg 1.0kg 1.0kg 1.0kg



Advantage:

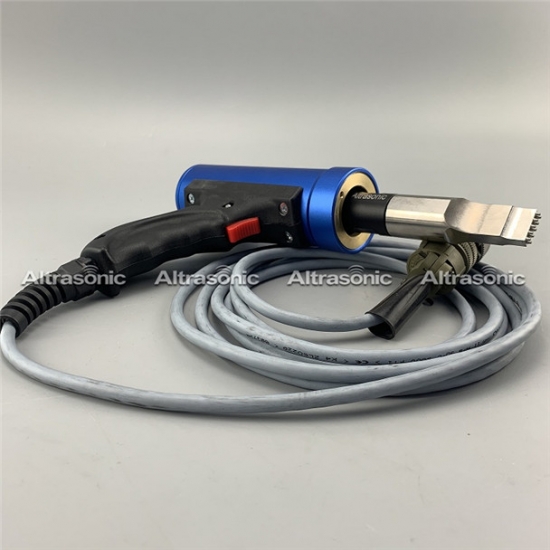

1. Lightweight

Thanks to their plastic housing, the ultrasonic hand welding units are extremely light yet also robust

2. Ergonomic shape

The weight of the ultrasonic hand welding guns is perfectly balanced thanks to their design, making them feel even lighter to handle as a result

3. Service friendly

The converter can be changed over in no time

4. Convenient working

Operating the hand unit is simple, safe, comfortable and intuitive

5. Air cooling

Air cooling for the sonotrode and the converter is pre-integrated in the hand unit and should be used as required



Feature:



a. Suitable for welding pp, ps, pe, pc, abs, pbt, etc.;

b. No need any adhesives or flux, and less heat consumption;

c. Easy operation, high efficiency, excellent outward appearance, and high strength;

e. Automatic and manual operating mode, convenient for adjusting;

f. CE international quality certificate;

g. 1-year warranty.



Application:



Appliance Fixtures, hardware, and enclosure assembly, welding of components.
Automotive Parts and body components, instrument panels, headlight assemblies, under hood assemblies.
Cosmetic Assembly of compacts and other containers, sealing tubes, packaging.
Electronic/Electrical

Component, connector cable and wire harness assemblies, enclosure cases and instrument faces, audio/video cassette and cartridge, switch assemblies.

Food

Sealing of pouches, tray containers and tubes; sealing microwavable containers; product packaging.

Hardware

Product assembly and blister pack packaging.

Health Care

Product containers and accessories.
