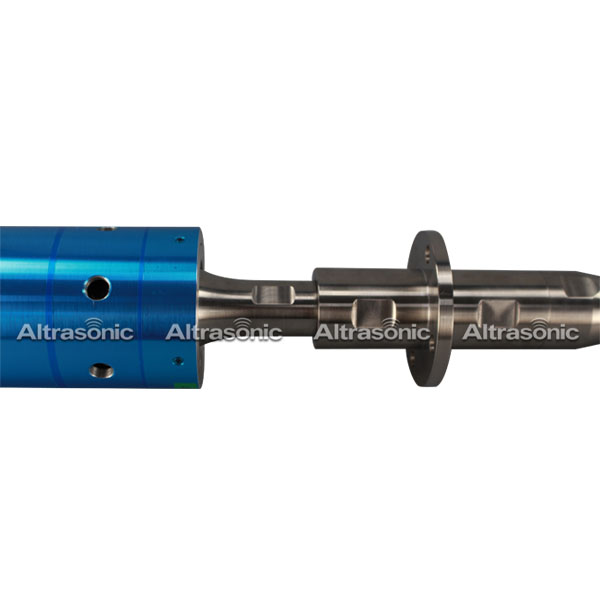

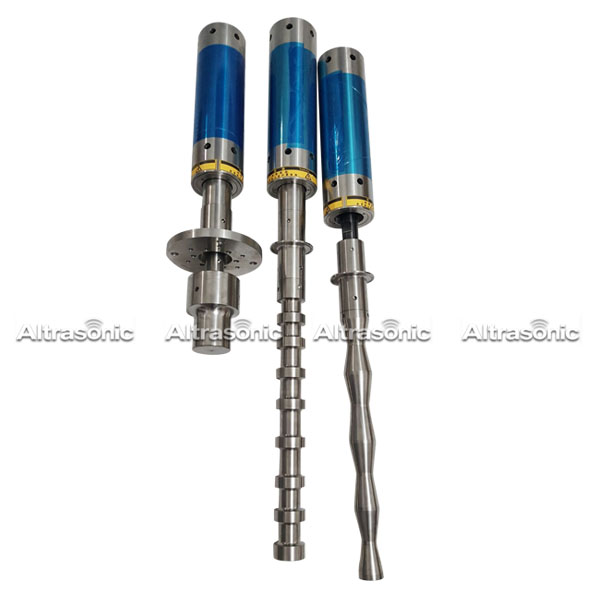

Herbal Extract for Titanium Alloy Ultrasonic Probe High Power 20kHz




Description:



Ultrasonic is a very effective processing method in the generation and application of nano-size materials. In general, ultrasonic cavitation in liquids may cause fast and complete degassing: initiate various chemical reactions by generating free chamical ions (radicals); accelerate chemical reactions by facilitating the mixing of reactant; produce highly concentrated emulsions or uniform dispersions of micron-size or nano-size materials. Ultrasonic can be tested in lab and bench-up scale before the results are scaled up to the commercial level.



Specification:



Model

HSS20-500-L

HSS20-1000-I

HSS20-1500-I

HSS20-2000-I

HSS20-3000-I

Frequency

20±1 kHz

20±1 kHz

20±1 kHz

20±1 kHz

20±1 kHz

Power

500 W

1000 W

1500 W

2000 W

3000 W

Voltage

220±10% V

220±10% V

220±10% V

220±10% V

220±10% V

Temperature

150 ℃

150 ℃

300 ℃

300 ℃

300 ℃

Pressure

Normal

Normal

35 MPa

35 MPa

35 MPa

Intensity of sound

10 W/cm²

10 W/cm²

30 W/cm²

40 W/cm²

60 W/cm²

Max Capacity

100M L/Min

5 L/Min

15 L/Min

20 L/Min

30 L/Min

Material Of Tip Head

Titanium Alloy

Titanium Alloy

Titanium Alloy

Titanium Alloy

Titanium Alloy





Feature:


1. T caps use replaceable, solve the problem of the tool head cavitation, T caps normal working hours more than 800 hours

2. Using the high-power ultrasonic transducer (1500w - 3000w), More stable performance, normal service life more than 10000 hours

3. Use of the digitally controlled power, to ensure that all the time in the best condition

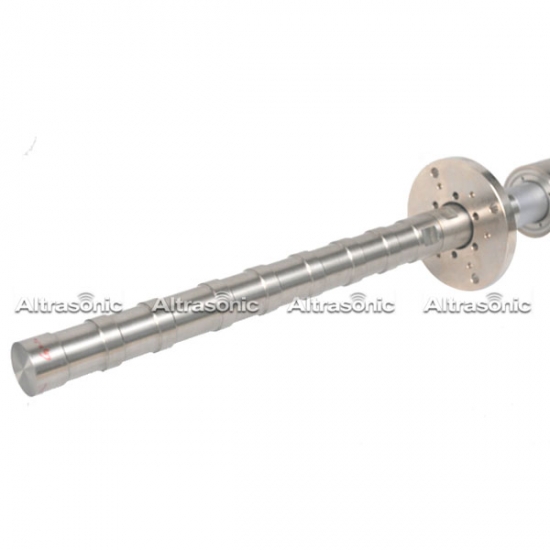

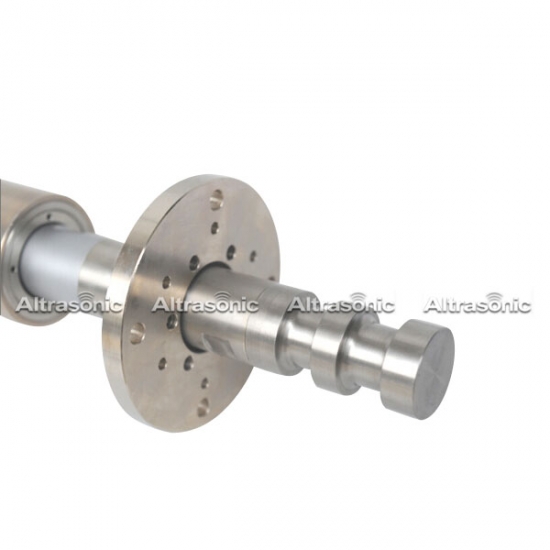

4. Dumbbell-type tool head design, greatly improving the ultrasonic radiation power per unit area.

5. The integrated piping made of stainless steel #316

6. Overall liquid flow-controllable

7. Use network-based CAN-bus technology, all working parameters can have room remote control




Application:



Ultrasonic mixing

Ultrasonic dispersing and deagglomeration

Ultrasonic Emulsifying

Ultrasonic Sonochemistry




System compose and parameter:



1. Basic compose

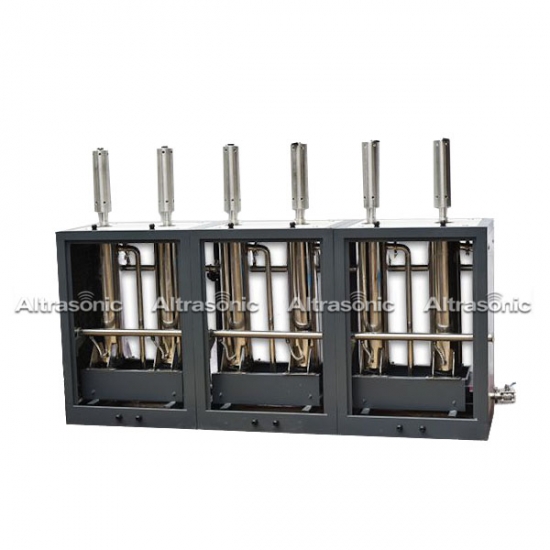

High-power cavitation erosion ultrasonic system is composed of three parts:

ultrasonic system, constant temperature oil bath container system and frame lifting system.

Ultrasonic system is the main core part of the complete system. It is used to supply largest power vibration for the system, in order to makes amplitude and frequency to reach standard requirements. Constant temperature oil bath container system is used to supply constant temperature liquid environment for insuring the test specimen test accuracy. (Temperature change will infuse erosion rate directly) frame lifting system is used to fix and adjust complete system, and designed sound proof function.



2. Working method

Placed the standard test specimen on the bracket tray; if with screw test specimen, please install on the horn directly. Then immerse the test specimen into the test liquid, and turn on the system. Please adjust the system every parameters according to experimental requirements, and observe the vibration frequency, amplitude ect through signal control system. Owing to it will produce larger noise when it works; there is a sound proof enclosure for reducing noise damage to people’s ear.
