Home Ultrasonic Welder Repair Dukane

Dukane Type Converter

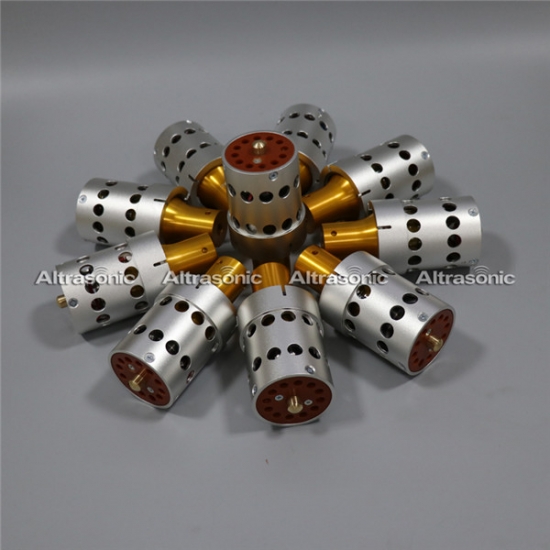

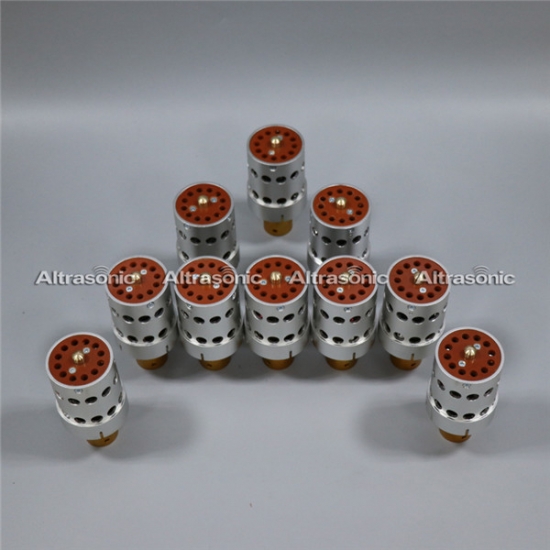

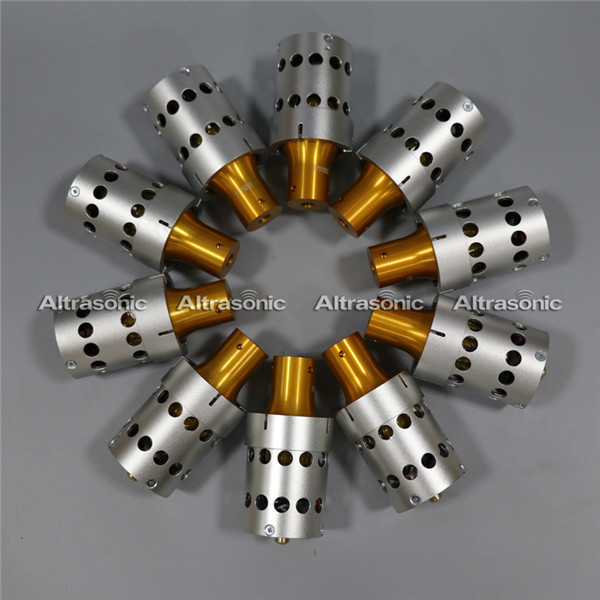

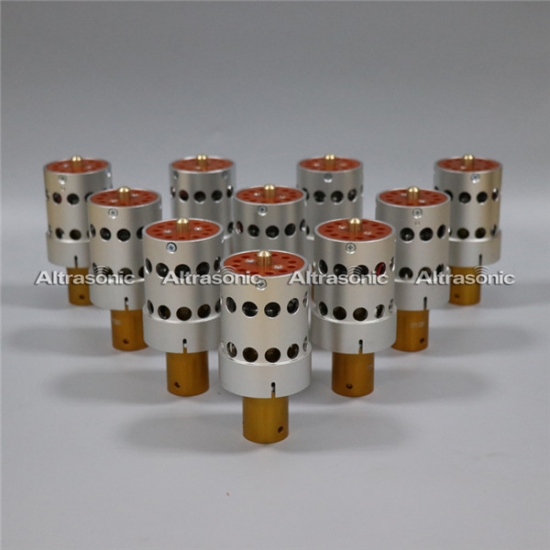

Dukane 110-3168 Replaced Ultrasonic Transducer

Dukane 110-3168 Replaced Ultrasonic Transducer

Ultrasonic transducer works by converting electrical energy into mechanical energy through the performance of piezoelectric ceramic.

  • Item No.:

    HS-D110-3168
  • Payment:

    T/T, Paypal, Western Union
  • Price:

    $788/PC
  • Product origin:

    China
  • Color:

    Silver and Yellow
  • Shipping port:

    Shanghai and Ningbo
  • Lead Time:

    5
  • Product Details


Dukane 110-3168 Replaced Ultrasonic Transducer





Parameters:



 Item No.:  HS-D110-3168
 Frequency:  20kHz
 Power:   2000Watt
 Connect Screw:  1/2-20UNF
 Ceramic of Diameter:  45mm
 Qty of Ceramic:  2PCS
 Resistance:  10Ω
 Color of Ceramic:  Yellow
 Capacitance:  4000pF
 Weight:  1.8kgs
 Package:  Carton
 Application:  Welding, Cutting or Sonochemistry



Description:



Ultrasonic transducer works by converting electrical energy into mechanical energy through the performance of piezoelectric ceramic.Our transducers are made of Imported ceramic discs and superior aluminum raw materials.We can replace the front and back cover of the transducer according to the need.Dukane 110-3168 high power transducer is used in the welding machine, can be used to weld like metal, thermoplastic and other materials.




Advantage:


1.  Strong technical support, can be customized.

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming

3. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.
