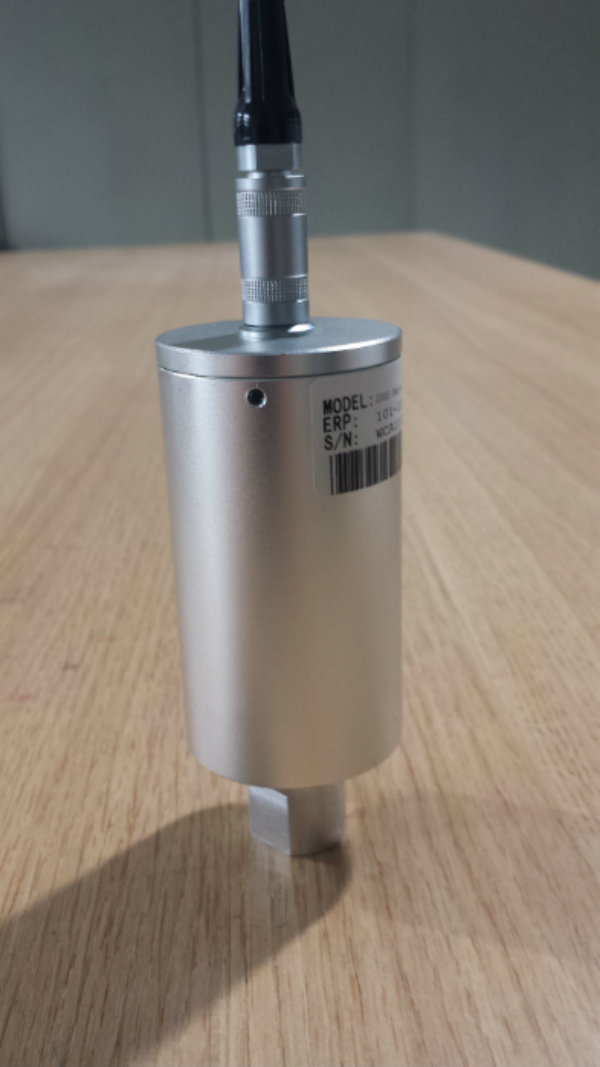

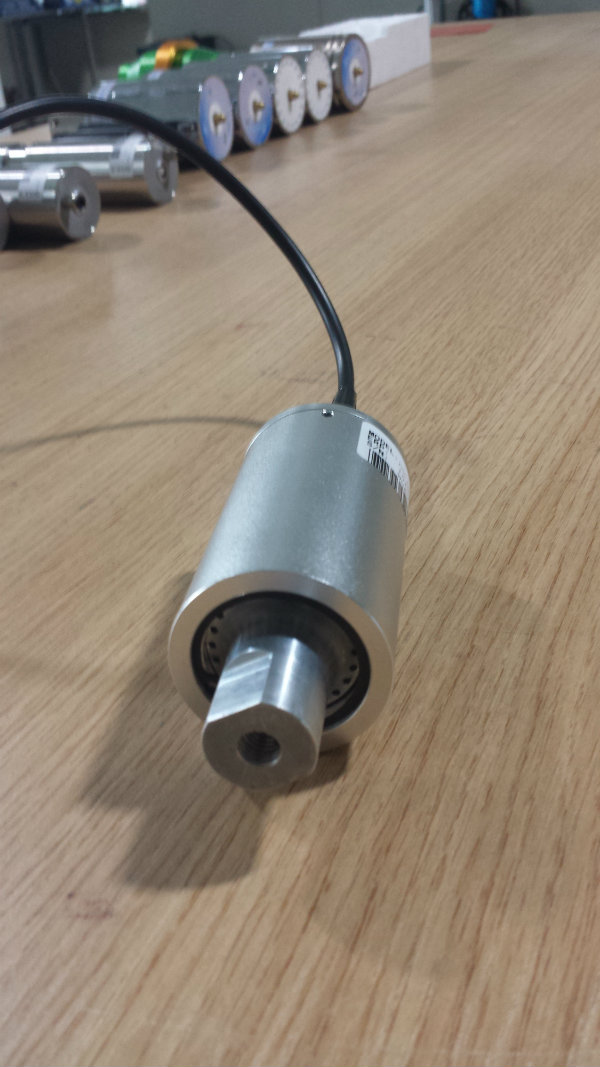

 CV231 40Khz Ultrasonic Transdcuer For Metal Welder



Minimum Order Quantity:

10 Set

Price:

Ask for quote

Packaging Details:

Foam case

Delivery Time:

In 7 Working Days

Payment Terms:

T/T, WESTERN UNION

Supply Ability:

5000 Sets/Month














We can customize transducer as following brand:



Branson converter, Branson transducer, Dukane converter, Dukan transducer, Sonics & Material converter, Sonics & Material transducer, Telsonic converter, Telsonic, transducer, Rinco converter, Rinco transducer, Sonotronic converter, Sonotronic transducer, Apsonic converter, Apsonic transducer, Decoup converter, Decoup transducer, Weber converter, Weber tranducer, walter converter, Walter transducer, Herrmann converter, Herrmann transducer, Ultrasonic transducer, Ultrasonic converter, Ultraschall converter, Ultraschall wandler, Ultraschall konvertern, ultrasons, , Transdutor de ultra-som, Conversor de ultra-som, transdutor de ultra-som, trasduttore ad ultrasuoni, convertidor ultrasónico, conversor de ultra-som, Convertitore di ultrasuoni, Transducteur d'ultrasons, transductor soldadura ultrasónica, saldatura trasduttore a ultrasuoni, Transducteur de soudage par ultrasons, Convertisseur de soudage par ultrasons, convertitore di saldatura ad ultrasuoni, conversor soldadura ultra-sónica, convertidor soldadura ultrasónica, ultrasonic welding converter, ultrasonic welding transducer, del convertidor, Ultraschallschweißen Konvertern, liquid cooled converter,


An ultrasonic transducer is a device that converts electrical ultrasonic energy into ultrasound energy, or sound waves above the normal range of human hearing. While technically a dog whistle is an ultrasonic transducer that converts ultrasonic mechanical energy in the form of air pressure into ultrasonic sound waves, the term is more apt to be used to refer to ultrasonic piezoelectric transducers that convert electrical energy into ultrasound.


Piezoelectric crystals have the property of changing size when a voltage is applied, thus applying an alternating current (AC) across them causes them to oscillate at very high frequencies, thus producing very high ultrasonic frequency sound waves.


The location at which a ultrasonic transducer focuses the ultrasound can be determined by the active ultrasonic transducer area and shape, the ultrasound frequency, and the ultrasonic sound velocity of the propagation medium.

We are offering following services:

• Analysis of the requirements for the ultrasonic converter from view point of the technical demands, the environment conditions, the costs and the manufacturing technology.

• Identification and interpretation of suitable transducers technologies for gases, solid states and liquids and application in lab, industry, automotives and consumer products.

• Optimization of sound converters with the help of simulation models (FEA).

• Production of experimental ultrasonic transducer models and prototypes.

• Electric-acoustic characterization of transducers and specification of the necessary components.

• Production of prototype series of ultrasonic converters as well as support concerning suitable  production technology including quality assurance and the manufacturing introduction.

• OEM delivery of complete ultrasonic transducers.






MODEL

FREQUENCYKHz

Ca(pf)

PowerW

Machine

402

19.6-20.0

7800-8500

450-900

BRANSON8400

502

19.6-20.0

11500-12500

2000

BRANSON8800/5170

CJ20

19.4-19.7

19000-21000

1100-4000

BRANSON2000 series

CB35A15A

36.5-37.5

3300-4000

800

Rinco-35A15A

CV231

38.3-39.0

3500-4500

900

40K Metal welding

CV3510

36.2-37.0

3200-4000

800

Rinco-CV3510
