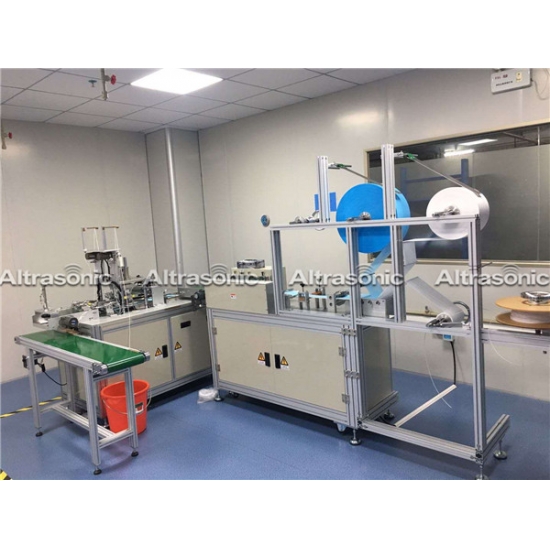

Automatic Ear Loop Welding with 3 ply Medical Mask Making Machinery


Medical masks generally have a three-layer (non-woven) structure, which is composed of two layers of spunbond non-woven fabrics that are professionally used for medical and sanitation, and a layer of solvent sprayed non-woven fabrics with a filtration and anti-bacterial effect of more than 99.999% Ultrasonic welding. 1 + 1 ultrasonic automatic mask machine adopts microcomputer automation control, automatic feeding welding, and automatic assembly line welding to complete the entire production process of masks, the operation is simple and clear, only 1 or 2 people can operate, reaching 99% accuracy. Production speed can reach 50-80 per minute.


Voltage: single phase 220V / 50kz

Power: 5,000Watt

Working pressure: 5,000-8,000gf

Size: 4278 * 1915 * 1859

Output: 80 pcs / minute

Delivery time: 15 working days

Staffing: 1 person to manage 3-5 machines

Work Process:

1. 3/4 mask roll material feeding

2. Folding and pressing-nasal bridge tendon feeding

3. Ultrasonic welding interface mask molding

4. Mask cutting

5. Ear band cutting and ultrasonic welding

6. Finished product output-counting-finished product output



1. Automatic Mask Blank Machine:

A set of feeding racks (non-woven stocking rack + filter dissolve spray cloth stocking rack + non-woven fabric stocking rack + nose bridge line stocking rack)

Set of feeding mechanism

Set of nose bridge material guide mechanism

Set of folding mechanism

Set of nose bridge cutting mechanism

Set of edge banding agency

Set of sheet cutting mechanism

Two sets of ultrasonic system

2. Automatic Ear Loop Welding Machine:

Set of mask blank conveying mechanism

Two sets of ear loop feeding mechanism

Two sets of winding mechanism

Two sets of ear-pressing mechanism

Two sets of ultrasonic system

Two sets of ear loop cutting mechanism




Shipping Port:Shanghai

Shipping Term:By express,by air,by ocean and so on.

Leading Time:Quick production leading time and fast delivery.Usually 1-3days if we have in stock.



3 times old test to confirm the products is well quality.

20 technician work together , and learn together , to improve our products.

48 hours working time to test the stability of our product before sending out.
