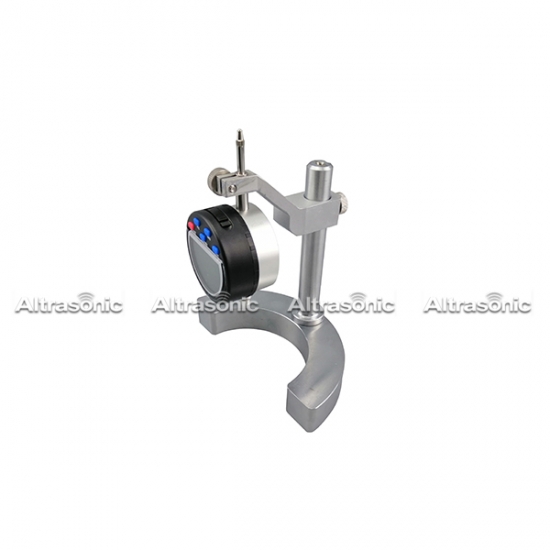

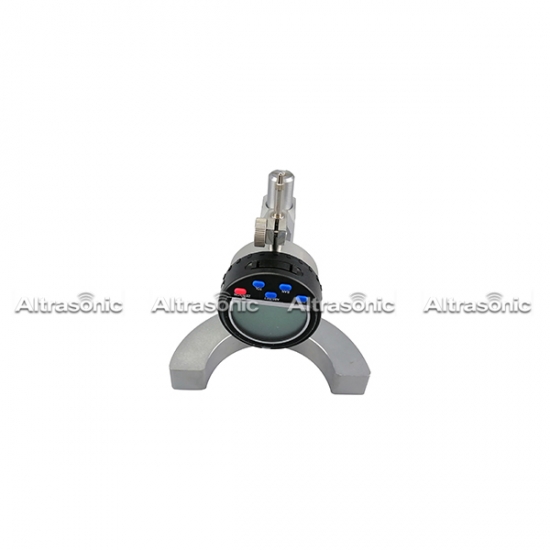

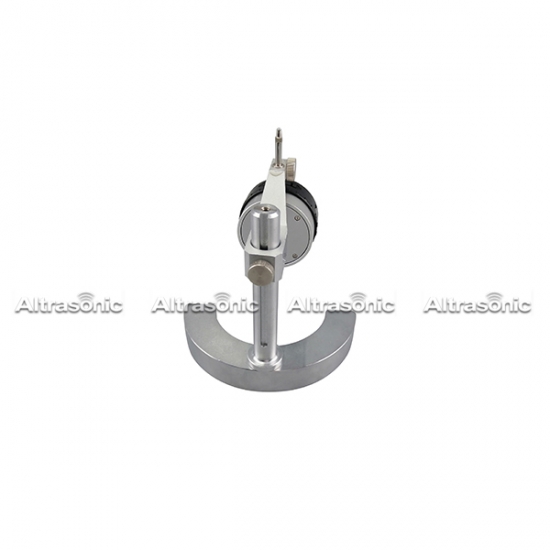

The ultrasonic amplitude measuring instrument is a device specially used for ultrasonic amplitude measurement, which can be used to measure the output amplitude of ultrasonic transducers, ultrasonic horns and tool heads.
Item No.:
HS0901BProduct origin:
China
Amplitude Measuring Instrument Easy Operation
Description:
It is well known that the amplitude (displacement) of ultrasonic vibration is one of the key indicators of ultrasonic equipment. The amplitude of the ultrasonic vibration directly represents the energy of the ultrasonic output, and also relates to the strength of the relevant material and the service life of the whole machine.
Specification:
Precision: 2.5%
Sensitivity: 1 μm
Measuring Range: More than 3 μm
Frequency Range: 10 KHz – 200 KHz
Supply Power: Built-in power supply (DC 3V)
Type of Indicator: Digital
Test direction: Up or down
Feature:
1. Digital and analog display
2. Absolute and relative measurement
3. Numerical preset actual position
4. Large display with all round
5. High-capacity volt lithium battery
Advantage:
1. Any position can be reset
2. Any position can be metric and imperical conversion
3. Can change the direction of the count
4. Automatic and manual shutdown
5. Relative and absolute surveying users can design any position as the starting position
Previous :
ultrasonic testing instrument amplitude measuring device ultrasonic horn analyzerNext :
Ultrasonic Amplitude Measuring Instrument with Accurate Measurement and Delicate DesignIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
