Altrasonic Ultrasonic Drilling Machine High Speed Cutting Silicon machine

  • China
  • Altrasonic
  • HS-M20
  • Shanghai or Ningbo
  • Green Silver
  • 1
  • 40
  • T/T, PayPal, Western Union

  • Contact Now
Product Details

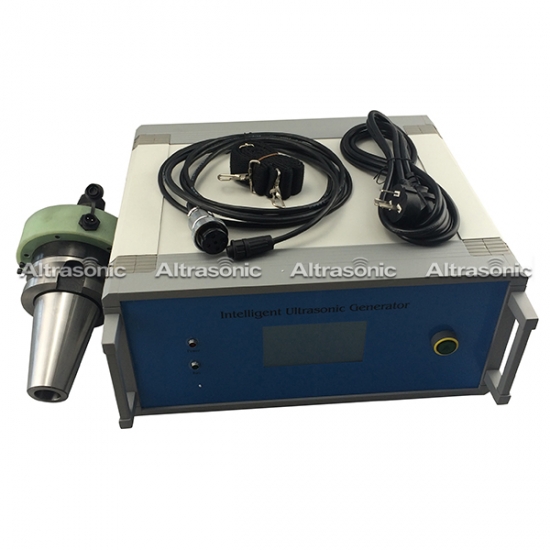

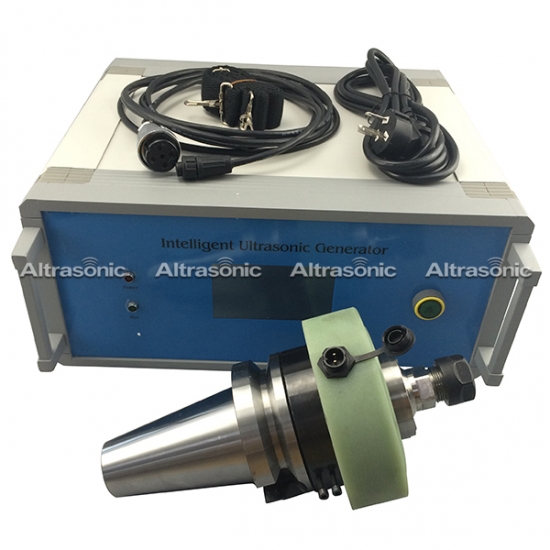

Ultrasonic Drilling Machine High Speed Cutting Silicon


Item No.: HS-M20

Frequency: 20kHz

Power: 500Watt

Speed: 20,000RPM

Amplitude: 10um or more

Diameter of Horn:

                          Milling: Φ1-Ф13mm


Spindle: BT40 / BT50 / R8 / HSK63 / ISO / CAT

(Special spindles are made per request.)


In the case of ultrasonic processing, the classic manufacturing processes (drilling, milling, etc.) are brought together with the ultrasonic technology. The results are less tool wear, lower processing forces, better machinability and a higher surface quality.

Our ultrasonic tools for ultrasonic drilling, ultrasonic grinding and ultrasonic milling are, due to their technical properties, the solution for the ultrasonic processing of brittle hard materials. The bond hardness, the material of the bond matrix, the grain quality and the diamond concentration are designed so that they can withstand the additionally generated oscillating movement kinematics when using ultrasound.


Quartz glass

Float glass

Glasses for the optical area


Boron carbides


Dental ceramic


Silicon carbides

Titanium / steels


Hard metals


Zirconium oxides

and many more


1. Up to 5 times higher productivity through the use of ultrasound

2. Increase of durability of a galvanic tool by a factor of two

3. Reaching surface qualities of less than Ra = 0.2µ

4. Reduction of the cutting pressure due to smaller wall thicknesses

5. Good re-sharpening effect

Ultrasonic machining effect:

微信图片_20190828134636No Ultrasonic

With Ultrasonic


NextUltrasonic drilling

Please feel free to contact us.
