Cheap and Sample Piezoelectric Transducers Testing Instrumen
Item No.:
HS-520APayment:
T/T, Paypal, Western UnionProduct origin:
ChinaColor:
WhiteShipping port:
Shanghai or Ningbo
Description:

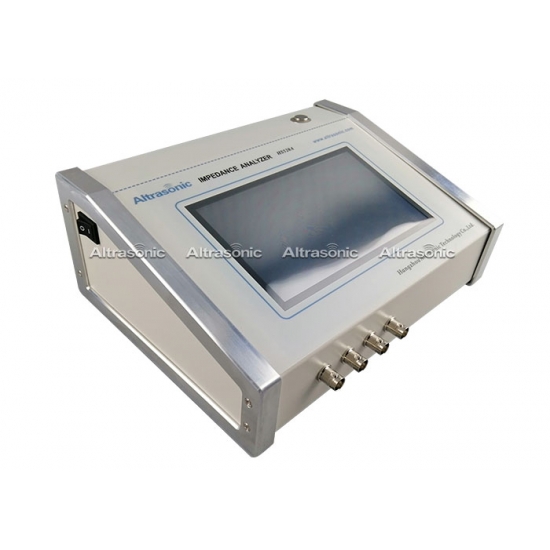

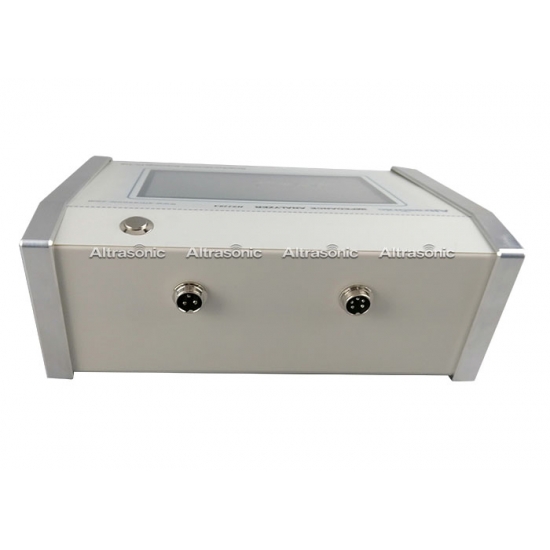

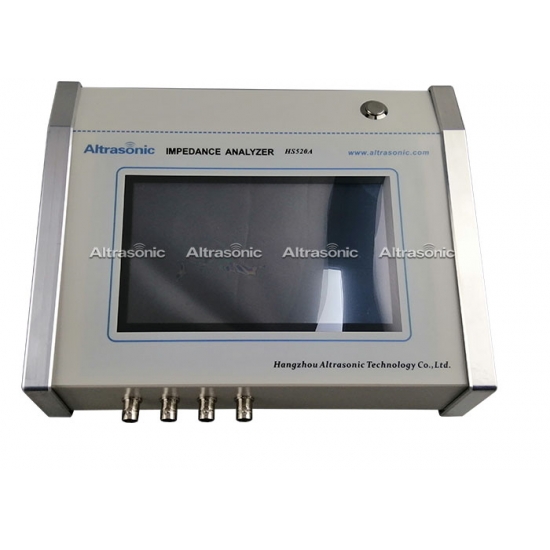

The Impedance Analyzer is a high-tech device dedicated to tuning, frequency analysis and testing of power ultrasonic transducers, horns (sonotrodes) and correlated devices. It is for these elements as an oscilloscope is for the electronics.
With the analyzer, the transducers and sonotrodes become just as measurable and adjustable as any other device.The Analyzer determines the operation frequency of the item to be tested and its impedance and current with the touch of a button. It’s quick and easy. With this quick and easily retrieved information, the user can perform the quality control of transducers, tuning of sonotrodes and ultrasonic horns, preventive and corrective maintenance of acoustic sets and much more.
Advantage:
• Practicality and ease of use. No need for ultrasonic expertise.
• Allows the quality control of ultrasonic transducers reducing technical assistance.
• Makes fast and accurate manufacturing of sonotrodes possible.
• Affordable cost.
• Reduces ultrasonic equipment maintenance costs because it allows preventive maintenance.
Specification:
Impedance Analyzer | HS520A Newest |
Frequency Range | 1KHz~500KHz/1Mhz/3Mhz/5Mhz |
Basic Accuracy | < 0.5% |
Scan Speed | 5 sec/one pass (equivalent to 600 scan dots) |
Frequency Accuracy | ±10 ppm |
Phase Accuracy | 0.15 degree |
Temperature Range | 10~40 degree Celsius |
Impedance Range | 0.1Ω~1MΩ |
Frequency Step | 0.1Hz to Any |
Measure Items | Resonance Frequency: Fs |
Half Power Frequency: F1 and F2 | |
Maximum real admittance at Fs: Gmax | |
Dynamic Resistance: R1 | |
Anti resonance frequency: Fp | |
Mechanical quality factor: Qm | |
Free capacitance: CT | |
Dynamic inductance: L1 | |
Dynamic capacitance: C1 | |
Static capacitance: Co | |
electromechanical coupling coefficient: Keff and Kp | |
Maximum real impedance at Fp: Zmax | |
Measure Diagram | G,B-F |
G-B (admittance circle coordinate) | |
R,X-F | |
R-X (impedance circle coordinate) | |
Z,phase-F | |
Y,phase-F | |
Z(Logarithm),phase-F | |
Amplification | piezoelectric ceramic, ultrasonic transducer, power ultrasonic, ultrasonic weld, ultrasonic clean, ultrasonic sensor |
Dimensions : 240mm*190mm*100mm Size of LCD Screen: 8-inch screen |
Application :
* Operation
* Sonotrode tuning
* Test of transducers
* Test of acoustic sets
* Test of piezo ceramics
* Predictive maintenance
FAQ:
Q: Can this analyzer connect to PC ?
A: Our ultrasonic impedance analyzer can connect to PC operation for storage, you can also check the operation video on our YTB:https://youtu.be/AY16fSjw8ZM
Q:Can data be stored in the storage media (USB Hard Drive... etc.)?
A: At present, it support PC storage, we have reserved USB port and after we update the software,the date can be directly storaged into USB Hard Drive or mobile phone.
Q:How to judge the defects for the ceramic on you analyzer?
A: For piezoelectric ceramics, the merits of the device can be judged directly from admittance circle plots and logarithmic coordinates. If there are delaminations or cracks inside the ceramic plate, the logarithmic curve will appear multi-peaked, and the admittance circle diagram will appear more than one Parasitic small round.
Workshop:
CE:
Warranty:
One year Warranty with none human damage.In this period factory will responsible for repair fix it for free or factory will send the new parts to customer instead of the broken parts for free.After warranty time,factory will repair fix it or send the new parts on cost price
Quality:
3 times old test to confirm the products is well quality.
20 technician work together , and learn together , to improve our products.
48 hours working time to test the stability of our product before sending out.
Previous :
Piezoelectric Ceramic Testing Equipment for Connecting PC 1kHz-500kHzNext :
Impedance Analyzer For Ultrasonic TransducerIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
