70Khz High Frequency Ultrasonic Wire Embedding Antennas Machine

70Khz High Frequency Ultrasonic Wire Embedding Antennas Machine

Radio frequency identification (RFID) inlays are manufactured throughout the world for many purposes: biometric passports, the contactless smart card market (e-ID, electronic healthcare cards, payment cards, public transportation), and for dual interface applications.

  • Item No.:

    HSW70
  • Payment:

    100% TT, West Union, Paypal
  • Price:

    $5000/pcs
  • Product origin:

    China
  • Shipping port:

    Shanghai
  • Product Details

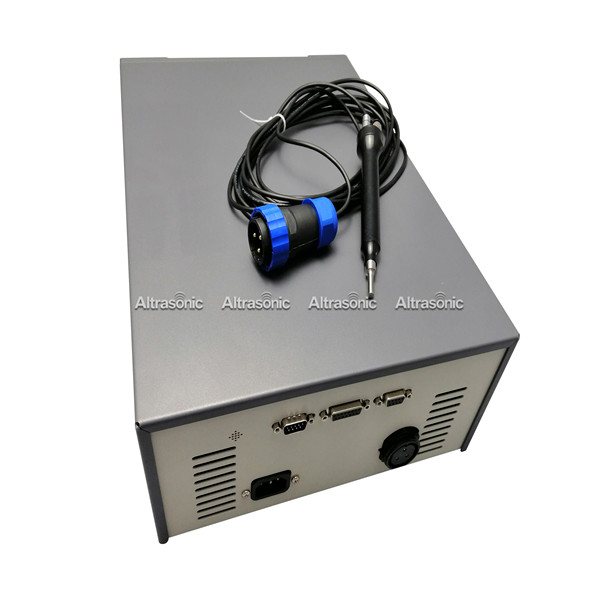

70Khz High Frequency Ultrasonic Wire Embedding Antennas Machine




Description:


The existing ultrasonic embedding wire embossing machine basically adopts a professional motion controller with a high-speed CPU to ensure the high-speed response of complicated mechanical actions and complete complex multi-axis motion control so as to realize the precision embedding of complex products. The vacuum suction plate Absorbing material embedding, effectively ensure the accuracy of the antenna embedding a smooth; embedding thread buried by ultrasonic technology, the entire process of program control fully automatic operation, easy operation, stable and reliable operation; using two automatic cycle switching workbench Plate, refueling without downtime, high production efficiency; each group of buried wire antenna group are independent units, both at the same time, you can also choose one of the groups at the same time work, high flexibility. Winding process than the traditional winding machine to be fast, save manpower, and more stable performance.



Parameters:



Frequency

70khz

Power

500w

Power Adjusting

Step or continuous

Switch

Handle , foot switch,or linked outside

Working Time control

0-999seconds

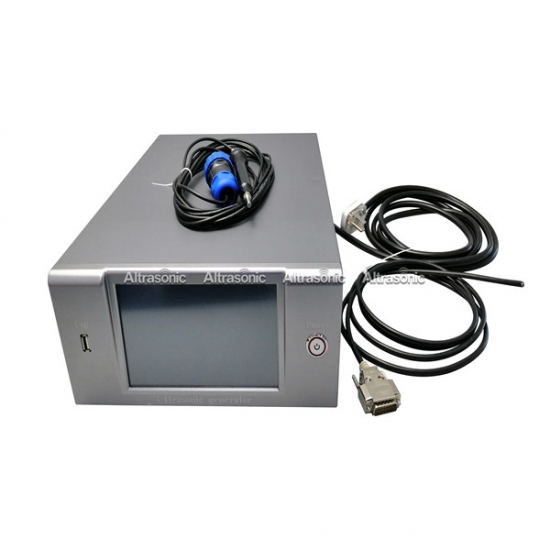

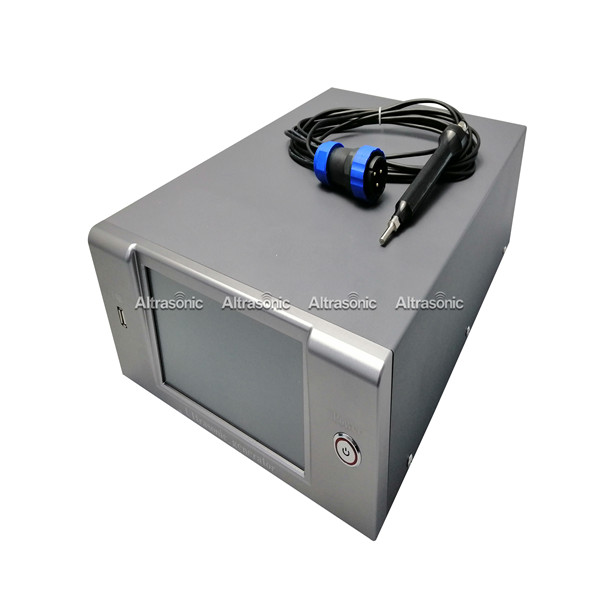

Generator

Digital generator

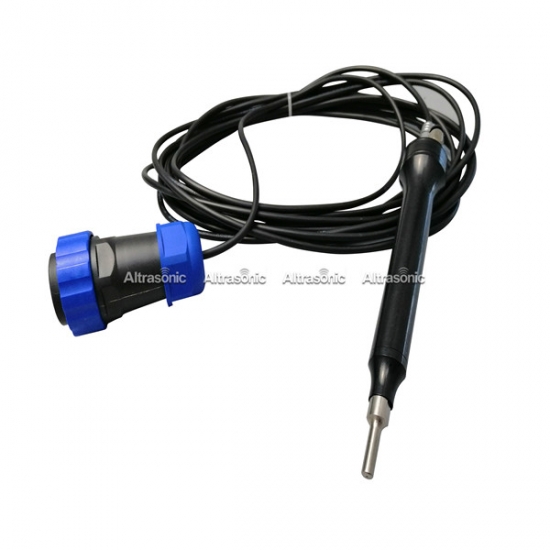

Cable

2M,  national standard

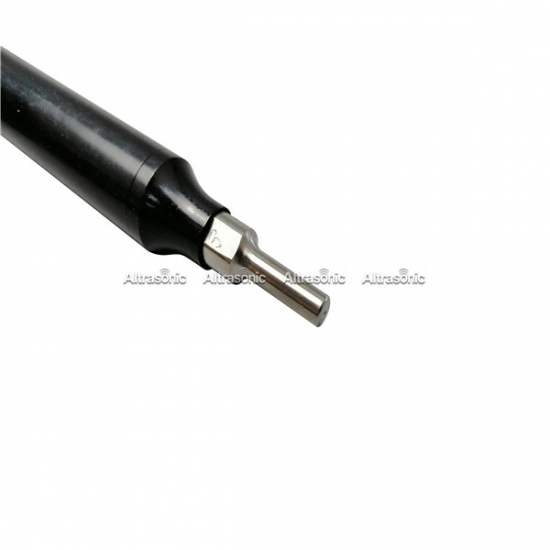

The threading hole

Ø0.5m or design according to customers' need

Cooling down method

Compressed air

Outer housing

aluminium or nylon




Advantage:


1. Intelligent search frequency, lengthening the life of buried line 2-3 times.

2. Do not dip tin before welding, reduce the process and cost.

3. Matching powerful, buried head and ultrasonic generator can be interchangeable.

4. Multi-point power control, high-speed embedding, consistency is good.

5. Solving the problem of equipment heating when embedded, can work for a long time.

6. Standardized design can directly replace imported products, environmental protection and safety.




Applications:



1. The equipment is used for the coil embedded in a smart card.

2. There are 3 different technique to produce PVC Card Inlay, pre-winding, ultrasonic and Flip.

3. Among them, the cards made by Flip will have very flat surface, and very thinner thickness; for ultrasonic, it has the best working performance no matter for the reading distance, or the card's surface; also the cost of pre-winding is more cheaper than ultrasonice and Flip.
