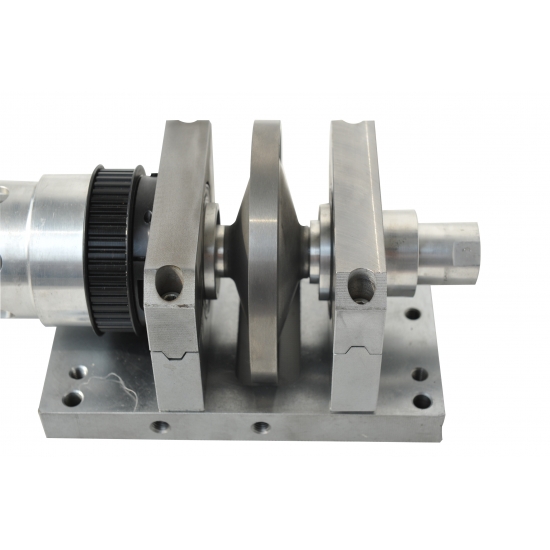

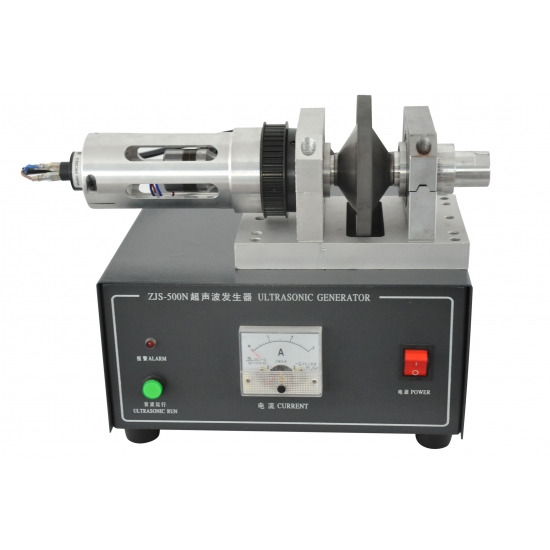

35Khz Ultrasonic Rotary Module For Ultrasonic Sewing Machine
Goods_stock:
100 Minimum Order Quantity: 1 Set Price: Ask for quote Packaging Details: Wood case Delivery Time: In 7 Working Days Payment Terms: T/T, WESTERN UNION Supply Ability: 100 Sets/Month
Quick Detail:
Fast weld
High strength
Good tightness
Simplicity of operator
Low energy consumption
Description:
The work method of Seamless sewing part is completely imitating traditional sewing machine. The biggest characteristic is the ultrasonic transmit horn work direction is same with the sewed cloth. Which will make the sewed point of the cloth are even, flat and fastness. Through suitable design, it can reach perfect sewing effectiveness.
Applications:

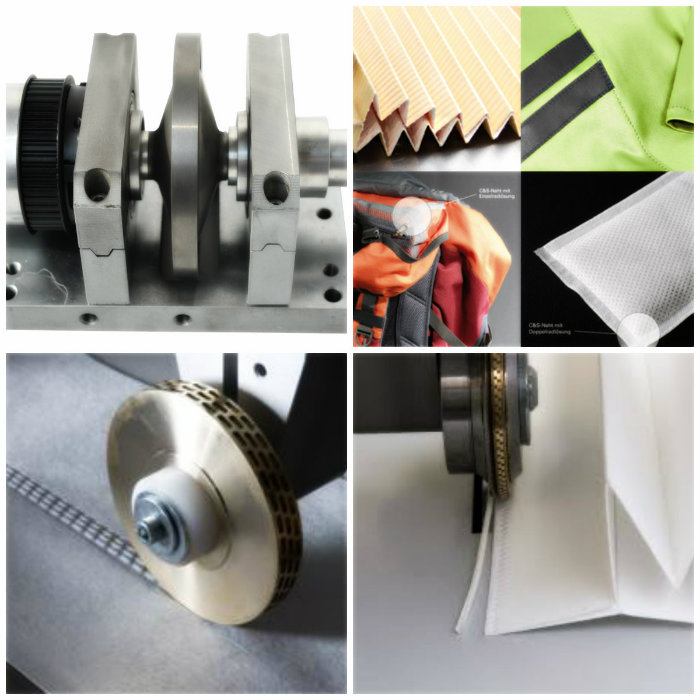

Usually used in clothing industry is the ultrasonic lace machine, which is mainly used in cutting and welding cloth. Owing to its transmit horn is a plane, so it only can turn its own geometric center and cant turn the same direction with the cloth. Which make the sewed point of the cloth is unevenness. The transmit horn of Seamless sewing part is a circumference horn, and can turn around . For the cloth, it is jointing with the cloth and working at the same time. The ultrasonic seamless sewing part advance ultrasonic lace machine and its market prospects are very bright.
Specifications:
|
Model |
W-35R |
|
Frequency |
35 KHz |
|
Power |
600 W |
|
Rotary Welding Horns Width |
12 mm |
|
Power Adjust Method |
File or Continuous |
|
The Horns Surface Hardness |
More than HRC56 |
|
Real-time Display |
Working Frequency and Working Current |
|
Synchronizing Wheel Specifications |
46XL Trapezoidal Tooth,Width16mm |
|
Synchronizing Belt Matched |
The Length is not more than730mm,the Width 12mm |
|
Allowable Rotation Speed |
100 r/min. |
|
Install Bolt |
M8, 4 pcs |
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
