35 kHz Ultrasonic Transducer

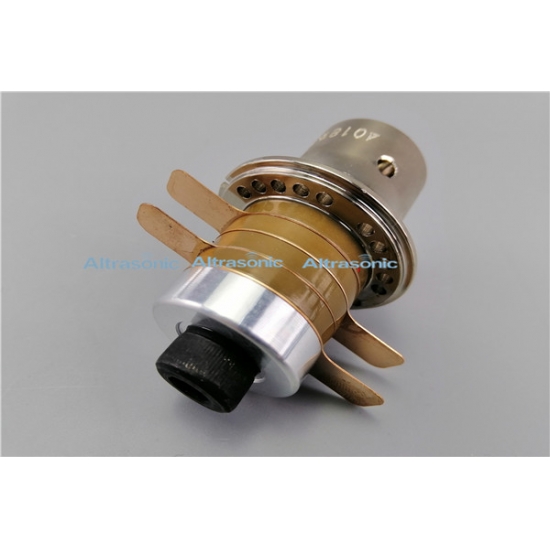

35K Ultrasonic Transducer with 4 pcs Imported Ceramics of Titanium Material

35K Ultrasonic Transducer with 4 pcs Imported Ceramics of Titanium Material

The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.

  • Item No.:

    HS-2535-4D
  • Product origin:

    China
  • Color:

    Silver
  • Product Details

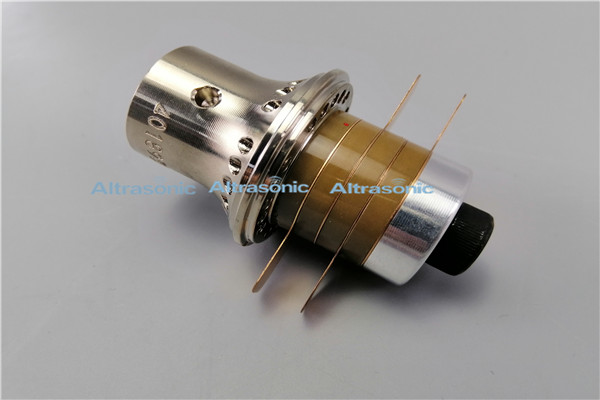

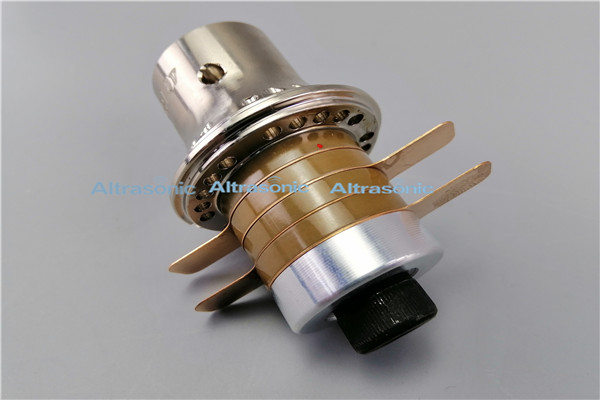

35K Ultrasonic Transducer  with 4 pcs Imported Ceramics with Titanium Material


Description:



The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.




Specification:



Model 2535-4D
Frequency 35 khz
Output power 800-1000 watt
Joint bolt M8
Ceramic disc Diameter 25 mm
Quantity of Ceramic discs 4 pcs
Capacitance 3.9-4.3nf
Amplitude 6 um
Application welding machine





Applied Range:



35K ultrasonic transducer application.


Advantages:



1. Titanium, aluminum, steel materials of horn optional.

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.




What we can do for you:



1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.

3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.
