28kHz Ultrasonic Welding Device for Welding Medical 3-layer Mask




Description:



Altrasocnic developed the third generation medical mask ear strap welding machine. In the case of ensuring high stability, we integrated the generator, transducer and welding horn on a workbench. This not only reduces the footprint and reduces transportation costs. This type can not only weld non-woven fabrics but also plastic parts. Its operation is as simple as the ultrasonic welding gun, and even the inexperienced person can perform the work of welding the ear loop of the mask.



Specification:


Item No.: HS-W28

Frequency: 28kHz

Power: 800Watt

Size: 50*29*44cm

Voltage: 110V/220V

Welding Speed: 15-35 pcs / Min

Welding Horn Diameter: 8mm

Welding Horn Material: Titanium Alloy



Parts List:


The third generation ultrasonic mask ear strap welding machine is composed of converter, booster, sonotrode and generator.


1. Generator:

The ultrasonic generator uses the supply voltage to generate high voltage in the respectively required ultrasonic frequency. The generator protects the vibrating system from overload, keeps the amplitude (tool movement) at a constant level.

2. Converter:

The converter represents the interface between the electrical and the mechanical area. Utilizing the inverse piezoelectric effect, it converts the electrical oscillation to mechanical longitudinal vibration and transfers it to the booster or the sonotrode.

3. Booster:

The amplitude transformer, often referred to as booster, increases or reduces the amplitude coming from the converter. Being suspended at nodal plain, the booster can also be used for vibration-free support of the stack in the ultrasonic welding machine and for transmission of forces.

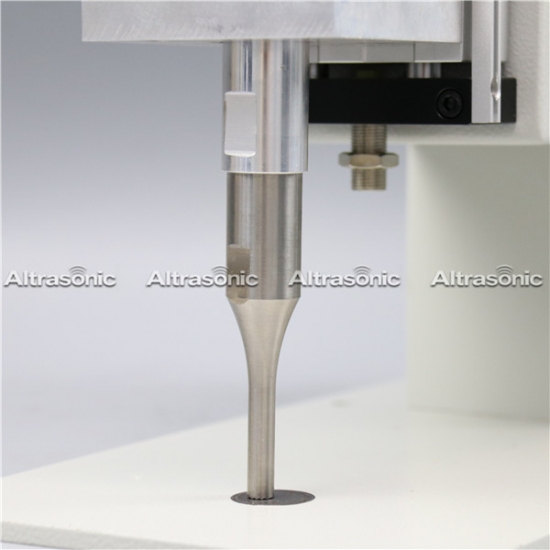

4. Sonotrode:

The sonotrode being the actual active weld tool, transmits the mechanical vibrations into the part; i.e. it launches the ultrasonic vibration. Depending on its design geometry, the sonotrode can either increase or reduce the amplitude.






Workshop:



CE:



Packing&Shipping:


Shipping Port:Shanghai

Shipping Term:By express,by air,by ocean and so on.

Leading Time:Quick production leading time and fast delivery.Usually 1-3days if we have in stock.
