20KHz Industrial Ultrasonic Sonochemical Circular System For Graphene

  • China
  • Altrasonic
  • 1

  • Contact Now
Product Details

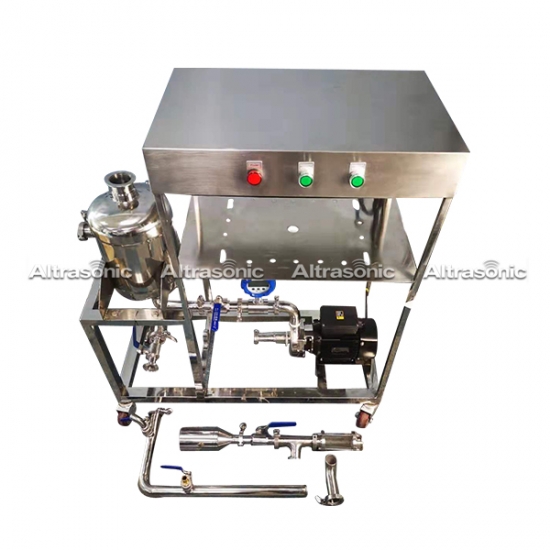

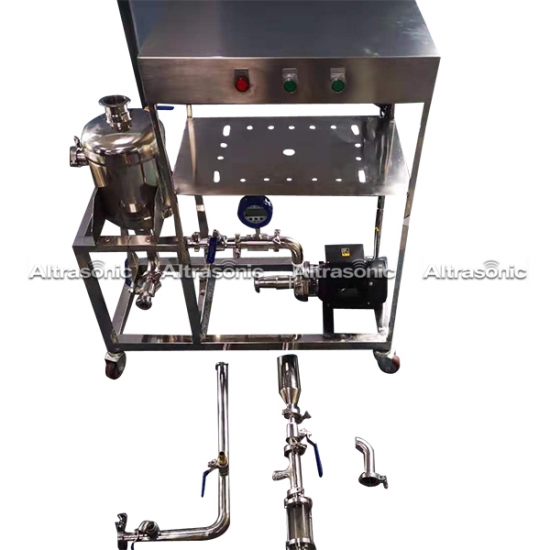

20KHz Industrial Ultrasonic Sonochemical Circular System

For Graphene




Description:


Graphene ultrasonic equipment is specifically used in the graphene preparation process. By applying ultrasonic waves to a liquid medium, the cavitation effect and mechanical effect unique to the ultrasonic wave are utilized to achieve the purpose of processing. It is an important link in the preparation and application of graphene.

Graphene ultrasonic pilot cycle machine is generally used to simulate the pipeline ultrasonic processing process, the ultrasonic power is 1000W to 3000W, and the volume is 5L. The main configuration consists of ultrasonic host, CNC drive power, circulating reactor and peristaltic pump.



Specifications:


Model

HSS61B-ZB

Frequency

20khz

Output power

3000watt

Voltage

220V/110V

Main advantages

High output power and cavitation effect

Amplitude

80um

Power supply

Digital Generator

Power range

Power can be adjusted from 1% to 99%

Material of probe

Special Titanium material

Application

Dispersing, Mixing, Homogenizing, reduce the size of particles



Sonochemical Processing Device Structure Reference Schematic:


微信图片_20191018113346


No.

Introduction

No.

Introduction

1

Vibrator air socket



9

Material outlet

2

Material feed inlet

10

Universal wheel

3

Control valve of feed inlet

11

Material pump

4

Visible window

12

Flow meter

5

Connector of vibrator

13

Cooling water inlet

6

Control valve of sample export

14

Cooling water outlet

7

Governor valve of feed flow rate

15

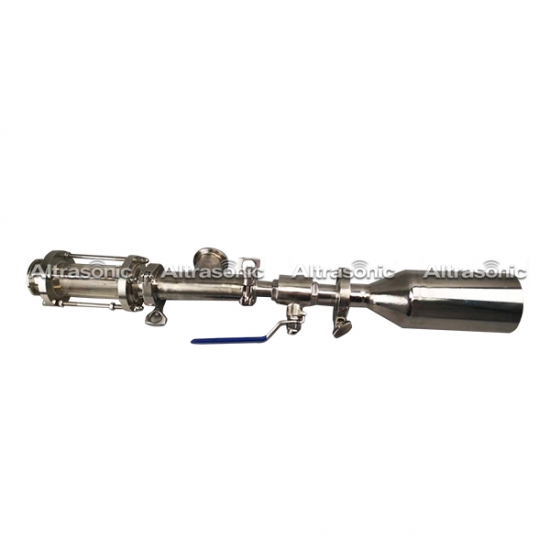

Ultrasonic vibrator

8

Control valve of outlet

16

Connector of vibrator





FAQ:

Q: Over temperature alarm

A: The reason for the “over temperature alarm” may be that the system output power is large, the ventilation environment is poor, and the ambient temperature is too high. Please turn off the drive power and improve the on-site operating environment.




ultrasonic homogenizer 20khz 3000watt (3)

ultrasonic homogenizer 20khz 3000watt (7)

201907171352096613226

运输方式等
