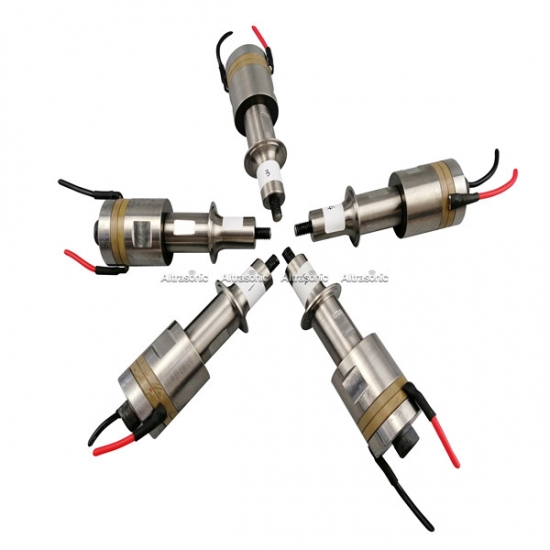

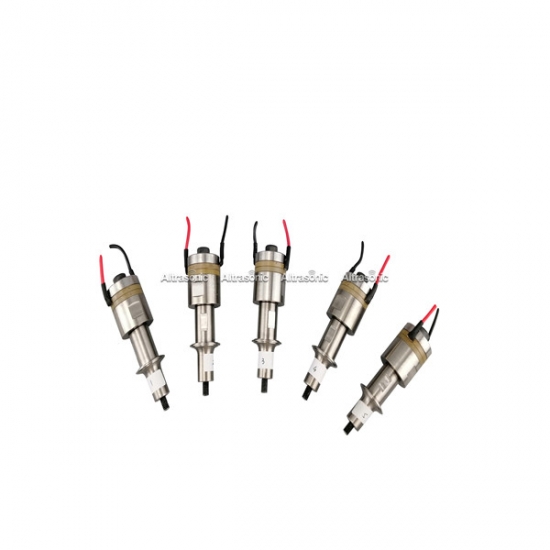

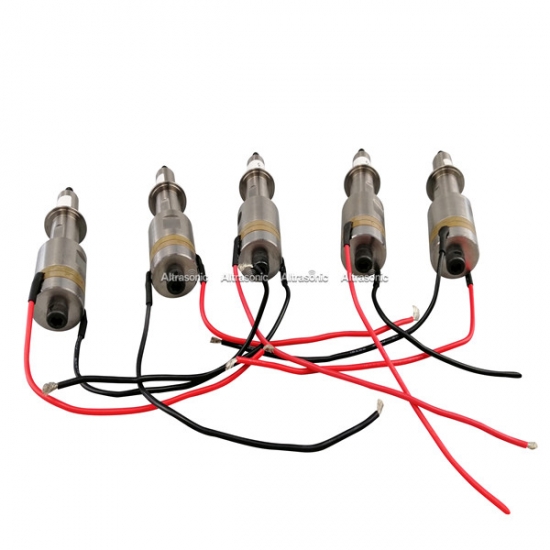

100w High Frequency 60Khz Customized Ultrasonic Transducer for Cutter



Specification:


Model HS-1560-2Z
Frequency 60 khz
Output power 100 watt
Joint bolt M6*0.75
Ceramic disc Diameter 15 mm
Quantity of Ceramic discs 2 pcs
Capacitance 0.7-0.8nf
Amplitude 4 um
Application Cutting machine







Description:



The 60khz Customized Ultrasonic Transducer is applied in new application of Medicine Cutting. It will be widely used in Surgical cutting and stop bledding. The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.




Warranty:



We offer the same warranty as the OEM, namely, three years one-time replacement.

Simply ship the broken unit back to arrive within three years of original shipment, and it will be replaced (one time).
