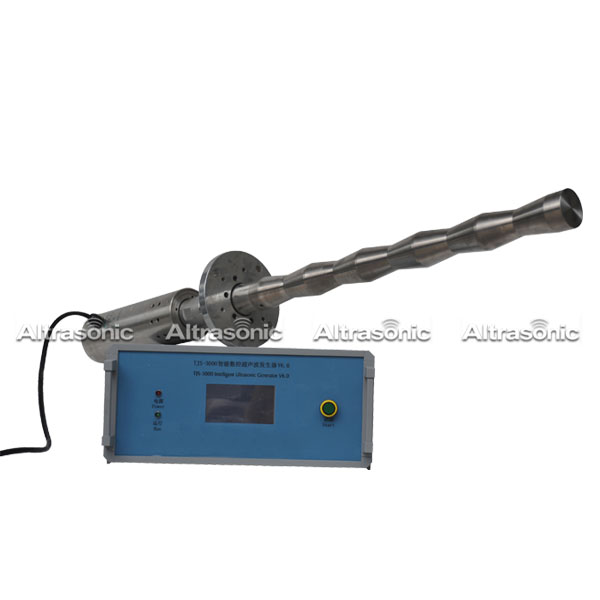

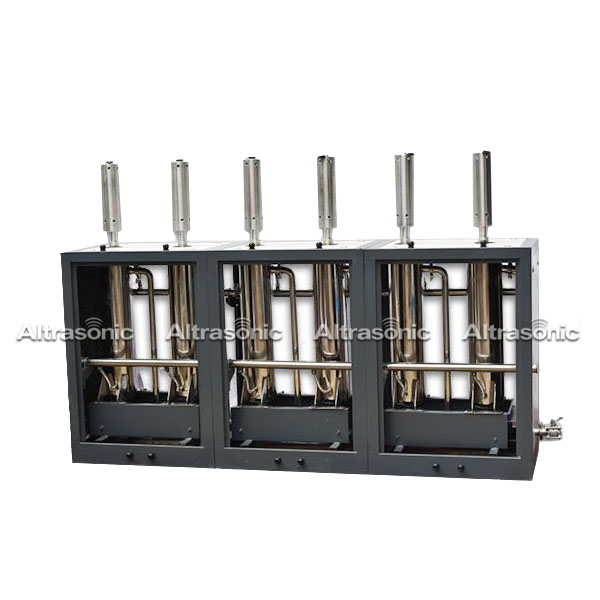

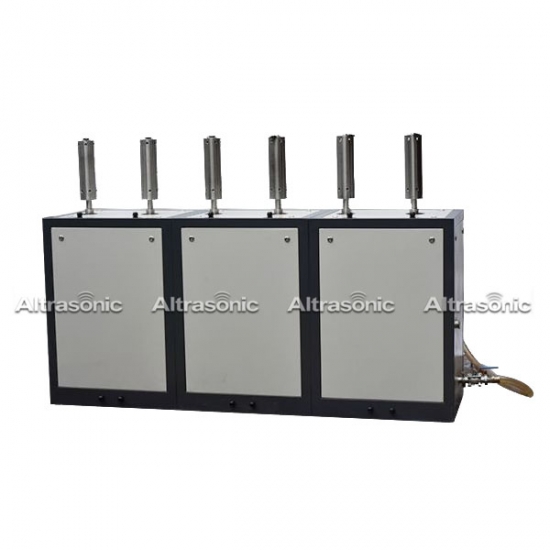

Ultrasonic System used in Ultrasonic Biodiesel Processing Unit

  • China
  • Altrasonic
  • HSS20-3000-I
  • Shanghai of Ningbo
  • Silver
  • 1
  • 45
  • T/T, PayPal, West Union

  • Contact Now
Product Details


Ultrasonic System used in Ultrasonic Biodiesel Processing Unit




Specification:


Model

HSS20-500-L

HSS20-1000-I

HSS20-1500-I

HSS20-2000-I

HSS20-3000-I

Frequency

20±1 kHz

20±1 kHz

20±1 kHz

20±1 kHz

20±1 kHz

Power

500 W

1000 W

1500 W

2000 W

3000 W

Voltage

220±10% V

220±10% V

220±10% V

220±10% V

220±10% V

Temperature

150 ℃

150 ℃

300 ℃

300 ℃

300 ℃

Pressure

Normal

Normal

35 MPa

35 MPa

35 MPa

Intensity of sound

10 W/cm²

10 W/cm²

30 W/cm²

40 W/cm²

60 W/cm²

Max Capacity

> 100M L/Min

> 5 L/Min

> 15 L/Min

> 20 L/Min

> 30 L/Min

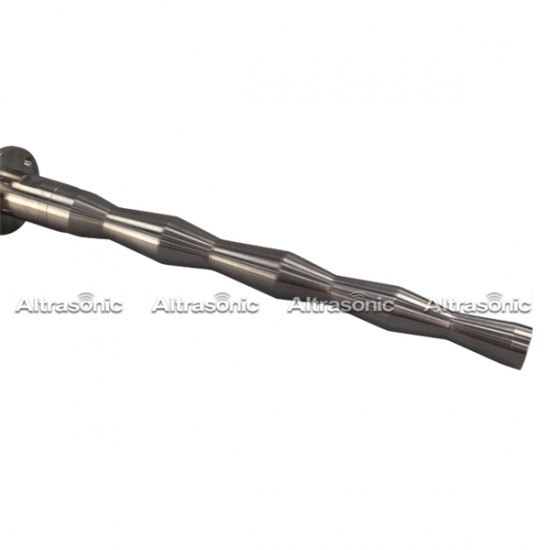

Material Of Tip Head

Titanium Alloy

Titanium Alloy

Titanium Alloy

Titanium Alloy

Titanium Alloy




Description:


Altrasonic ultrasonic reactors improve the transesterification kinetics significantly. Therefore lower excess methanol and less catalyst are required for biodiesel processing. Biodiesel is commonly produced in batch reactors using heat and mechanical mixing as energy input.

Ultrasonic cavitational mixing is an effective alternative means to achieve a better mixing in commercial biodiesel processing. Ultrasonic cavitation provides the necessary activation energy for the industrial biodiesel transesterification.



Ultrasonic processing of biodiesel involves the following steps:


1. the vegetable oil or animal fat is being mixed with the methanol (which makes methyl esters) or ethanol (for ethyl esters) and sodium or potassium methoxide or hydroxide

2. the mix is heated, e.g. to temperatures between 45 and 65degC

3. the heated mix is being sonicated inline for 5 to 15 seconds

4. glycerin drops out or is separated using centrifuges

5. the converted biodiesel is washed with water
